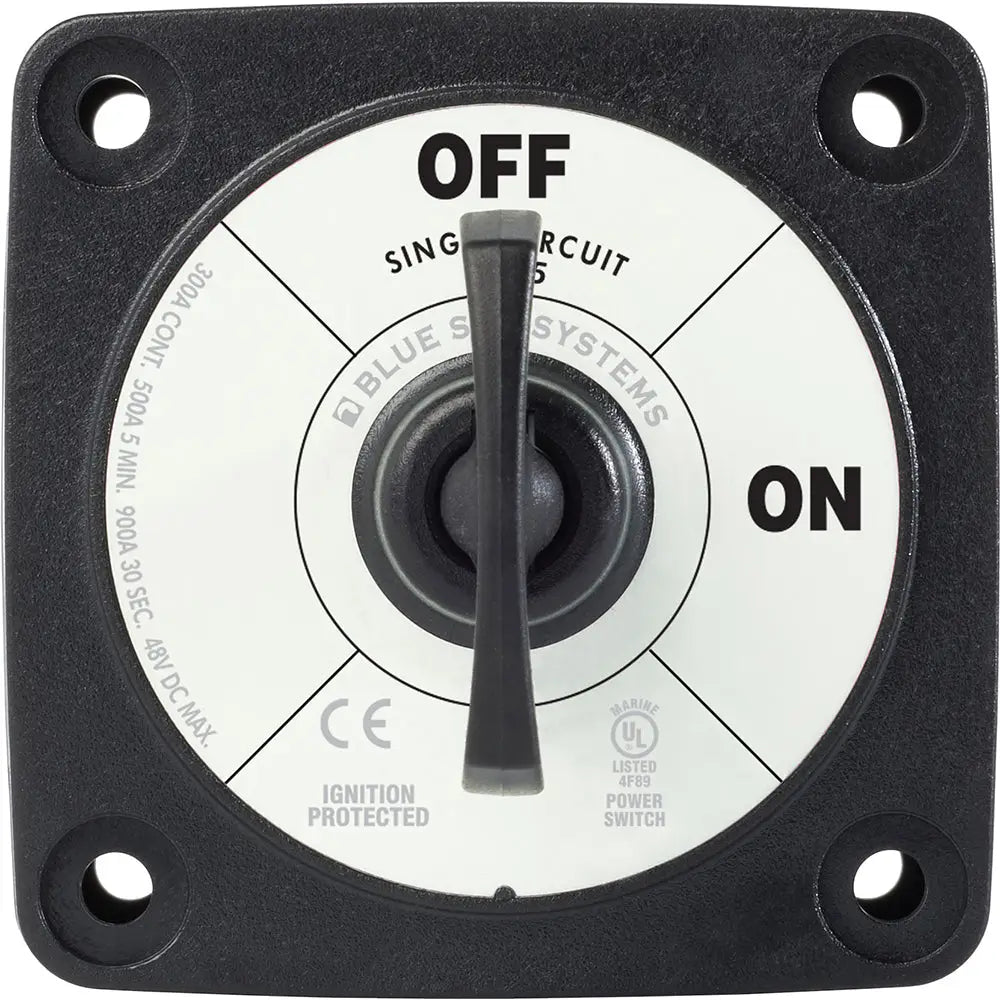

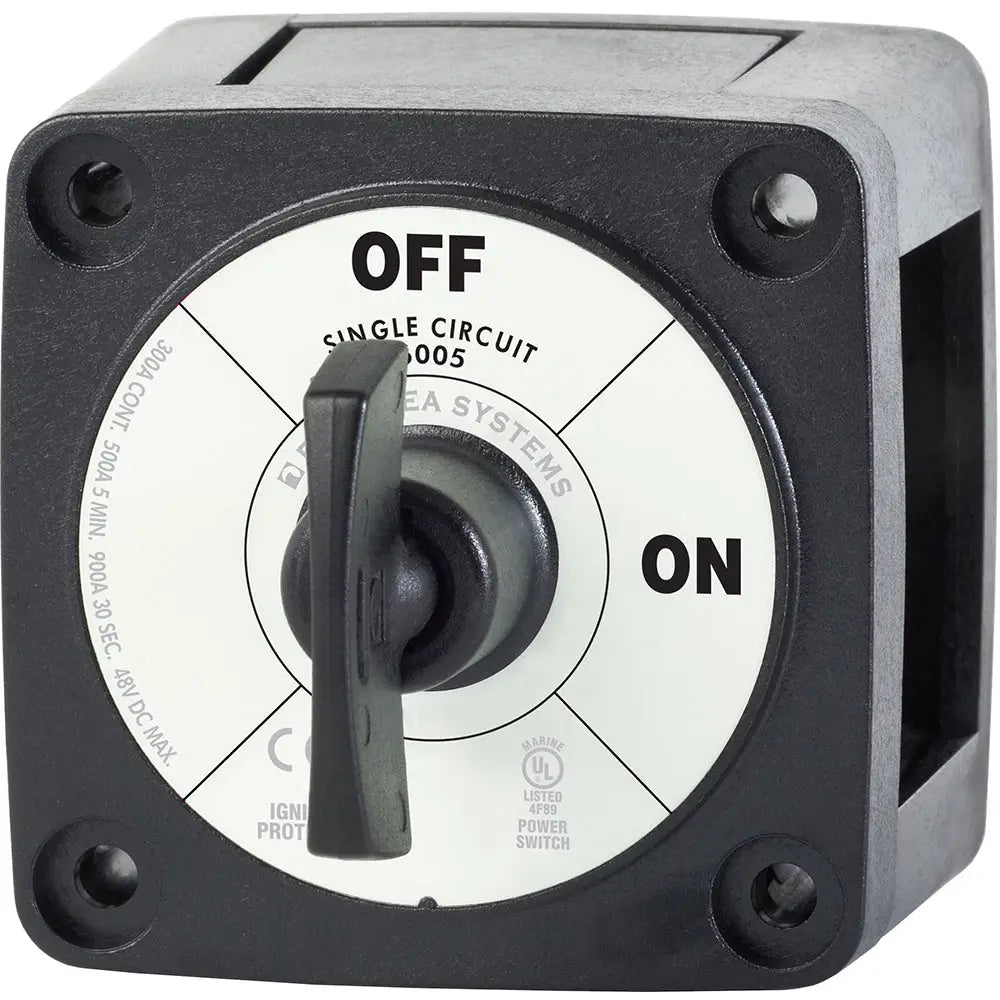

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black [6005200]

$30.89
$44.99
$30.89
Shipping calculated at checkout.

SKU: CWR-49217   UPC: 632085600525

[COUNT] shoppers are looking at this right now

    m-Series Mini On-Off Battery Switch with Key - Black

    Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

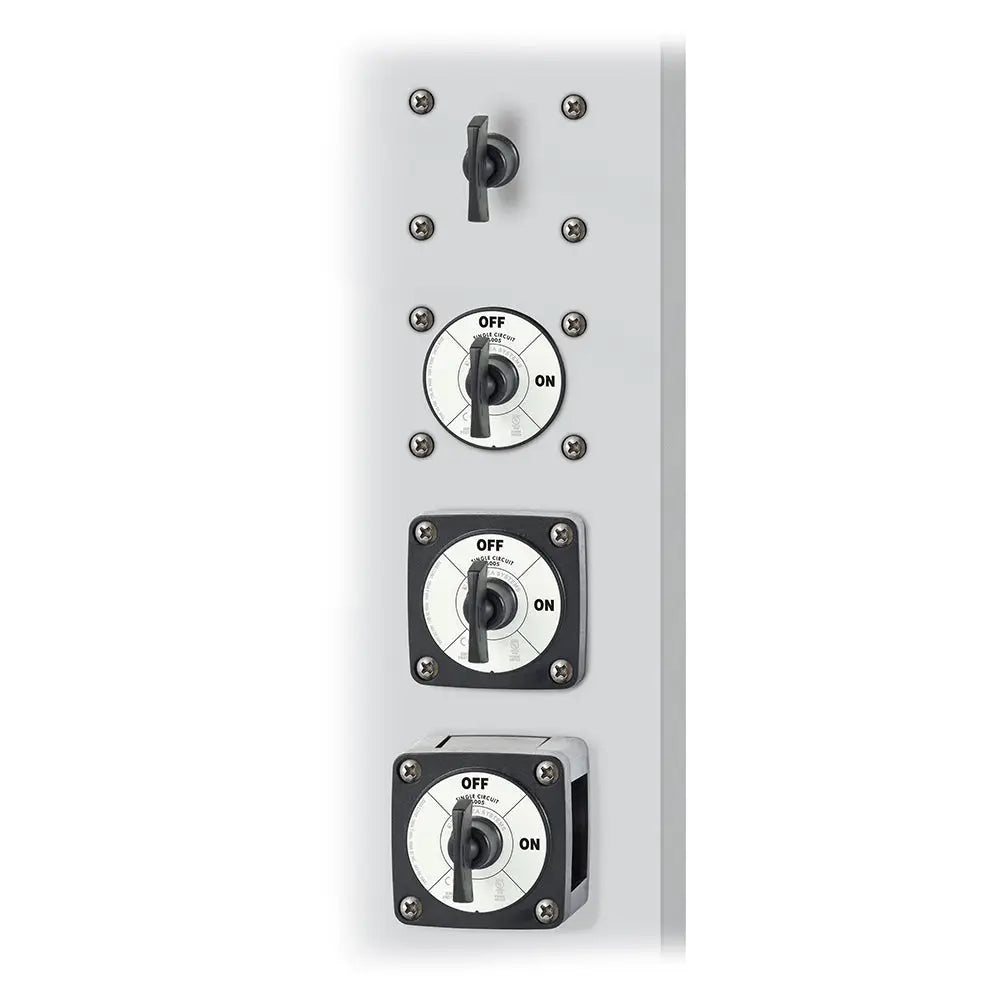

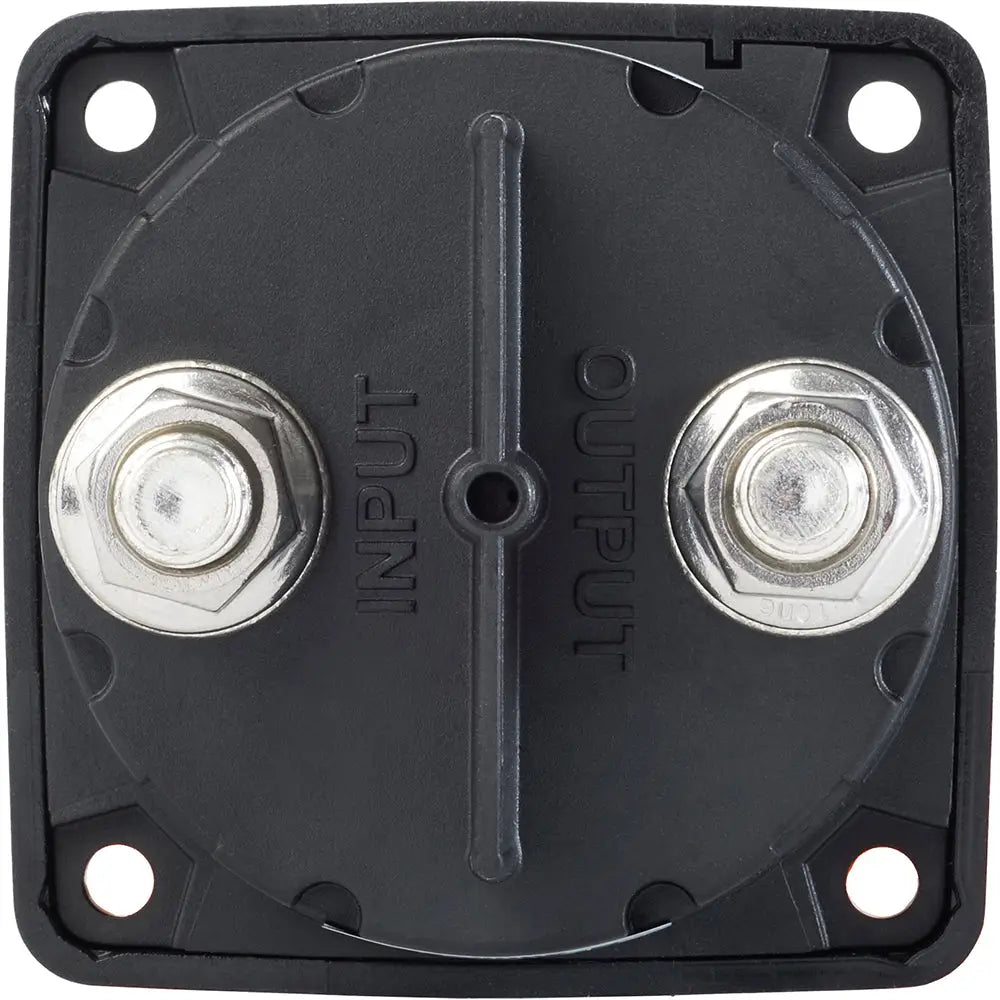

    Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

    Switch Type: tSingle Circuit ON-OFF
    Color:tBlack
    Switch Positions:t2
    Battery Combine:tNo
    Alternator Field Disconnect: tNo
    Maximum Voltage:t48V DC
    Continuous Rating :t300A
    Intermittent Rating :t500A (5 min)
    Cranking Rating 10 sec: t1500A
    Cranking Rating 1 min: t775A
    Battery Inputs:t1
    Cable Clearance For 4/0 AWG Cables:t1.12in (28.45 mm)
    Cable Size to Meet Ratings:t4/0 AWG (120mm²)
    Mounting Holes: tAccept #10 Screw
    Terminal Stud Size:t3/8"-16 (M10)
    Terminal Stud Torque:t120 in-lb (13.56 Nm)
    Weight:t0.62lb (0.28/ kg)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • AFD: No
    • Continuous Amperage: 300a
    • Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
    • UPC: 632085600525

    Owner's Manual (pdf)
