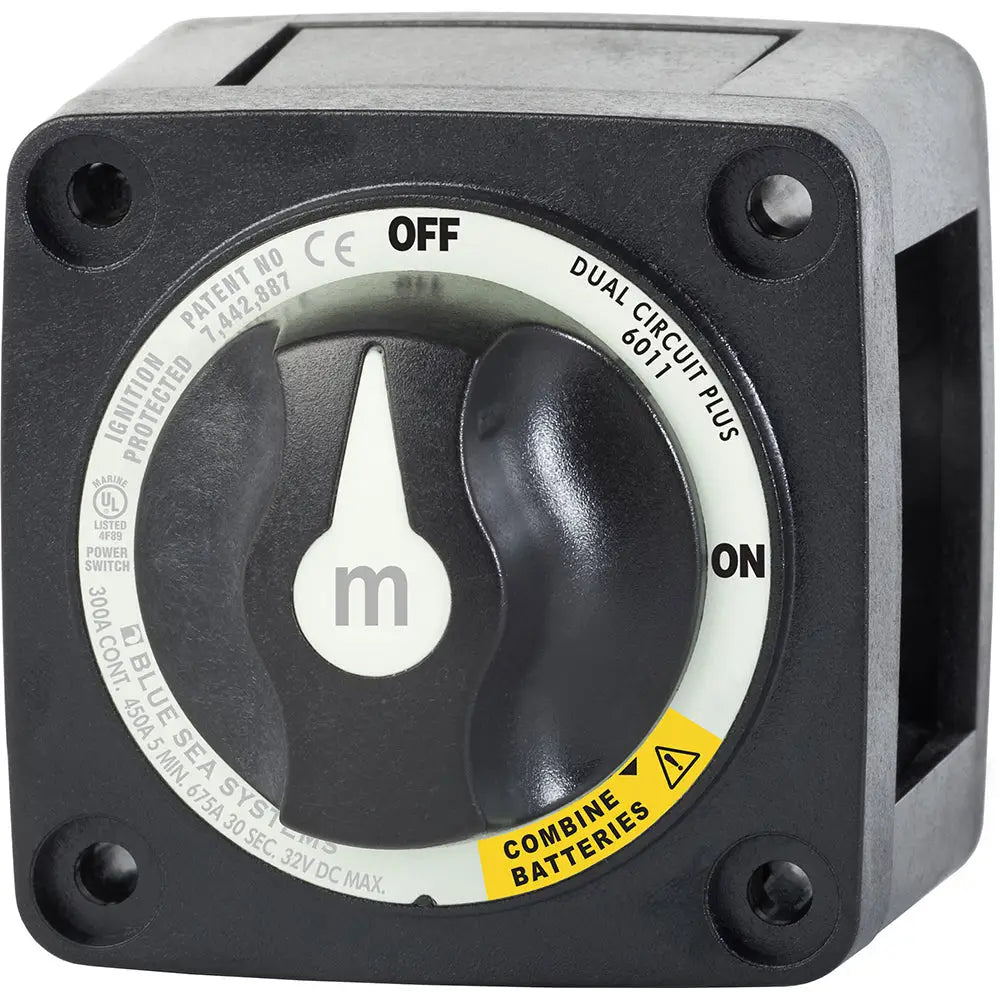

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black [6011200]

$51.76
$65.99
$51.76
Shipping calculated at checkout.

SKU: CWR-49219   UPC: 632085601126

    m-Series Mini Dual Circuit Plus Battery Switch - Black

    Simultaneously switches two isolated battery banks or combines battery banks to all loads.

    Make before break contact design allows switching between battery banks without power interruption.

    Switch Type: tDual Circuit Plus
    Color:tBlack
    Switch Positions:t3
    Battery Combine:tYes
    Alternator Field Disconnect: tNo
    Maximum Voltage:t32V DC
    Continuous Rating :t300A
    Intermittent Rating :t450A (5 min)
    Cranking Rating 10 sec: t1000A
    Cranking Rating 1 min: t650A
    Battery Inputs:t2
    Cable Clearance For 4/0 AWG Cables:t1.12in (28.45 mm)
    Cable Size to Meet Ratings:t4/0 AWG (120mm²)
    Mounting Holes: tAccept #10 Screw
    Terminal Stud Size:t3/8"-16 (M10)
    Terminal Stud Torque:t120 in-lb (13.56 Nm)
    Weight:t0.80lb (0.36 kg)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • AFD: No
    • Positions: 3
    • Continuous Amperage: 300a
    • Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
    • UPC: 632085601126

    Owner's Manual (pdf)
