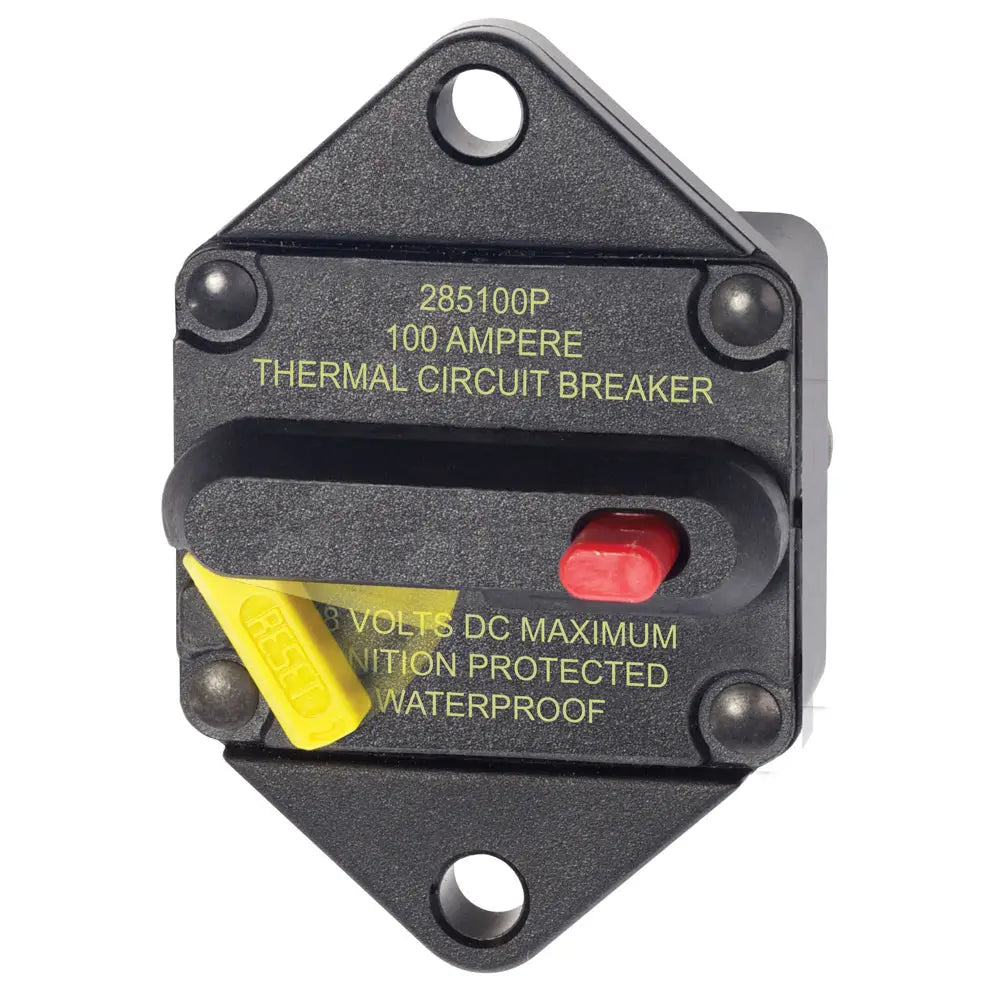

Blue Sea 7087 100 Amp Circuit Breaker Panel Mount 285 Series [7087]

Authorized Dealer

In Stock

Regular price: $68.79
Regular price: ~~$79.99~~
Sale price: $68.79

Shipping calculated at checkout.

SKU: CWR-40627 UPC: 632085170875

17 items left in stock

Free Shipping Orders over $149.99

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689) · shop@lotzoutdoors.com

Panel-mount circuit breaker for protecting 100A DC electrical circuits in marine, RV, automotive, and other vehicle power systems. Its visible reset lever makes an open condition easy to identify while the trip-free design prevents the breaker from being held closed after a trip.

The Blue Sea Systems 285-Series breaker provides 100A overcurrent protection with a panel-mount configuration. It supports systems up to 48V DC and uses a thermally responsive bi-metal blade for circuit interruption. The breaker can also combine switching and circuit protection in one unit, helping simplify accessible power-distribution panels.

100A rating: Provides circuit protection for appropriately sized DC electrical systems.
Panel-mount configuration: Installs through an electrical panel for accessible operation and reset access.
Visible reset lever: Shows when the breaker is open, making circuit status easier to check.
Trip-free operation: Prevents the breaker from being held closed after it trips.
Ignition protected: Suitable for installation aboard gasoline-powered boats when installed according to applicable requirements.
Drop-in replacement: Replaces 185-Series circuit breakers in compatible installations.

This 285-Series circuit breaker is intended for DC power-distribution applications where accessible overcurrent protection is needed. It fits marine electrical panels, RV power systems, automotive accessories, and similar vehicle installations when the circuit’s voltage, current, wiring, and mounting requirements match the breaker’s specifications.

The visible lever helps users identify an open circuit without relying only on electrical testing. Its trip-free mechanism supports safer reset behavior by preventing the breaker from remaining manually held in the closed position after an overload trip.

The breaker is weather resistant and ignition protected for suitable marine applications, including installations aboard gasoline-powered boats. Use it with appropriately sized conductors and terminals, and follow the manufacturer’s installation instructions for mounting and terminal torque.

Brand	Blue Sea Systems
Model	7087
Product type	285-Series panel-mount circuit breaker
Amperage	100A
Maximum voltage	48V DC
Mounting	Panel mount
Circuit breaker type	Thermally responsive bi-metal blade
Terminal stud	M6; accepts 1/4-inch ring terminal
Terminal stud torque	50 in-lb (5.65 Nm)
Interrupt capacity	3000A at 48V
Weight	0.50 lb (0.23 kg)
UPC	632085170875

Is this breaker rated for 100A?
Yes. The breaker is rated for 100A.
What voltage can it support?
It is specified for systems up to 48V DC.
Where is it installed?
It is designed for panel-mount installations in compatible marine, RV, automotive, and vehicle electrical systems.
Can it replace an older breaker?
It is identified as a drop-in replacement for compatible 185-Series circuit breakers.
What happens after it trips?
The visible reset lever indicates the open condition, and the trip-free design prevents the breaker from being held closed after tripping.
