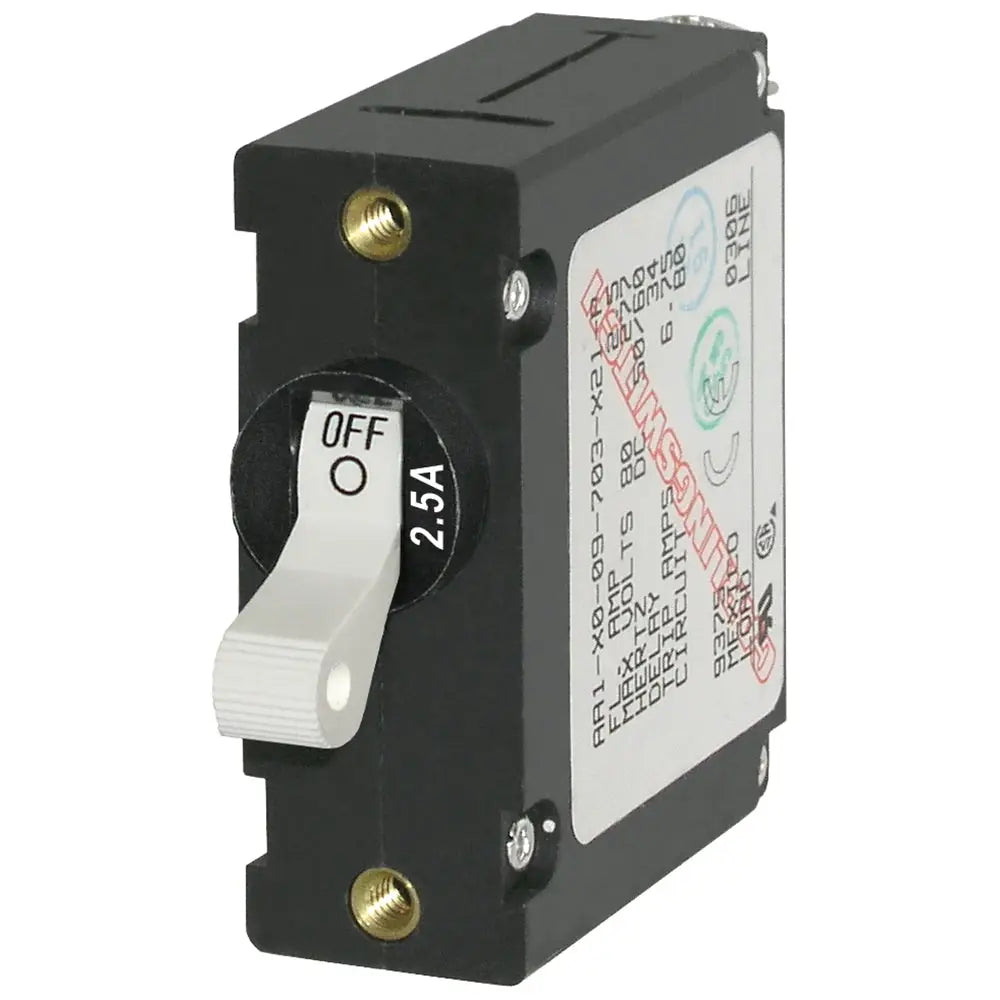

• Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A [7197]
1 1

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A [7197]

$21.89
$30.99
$21.89
Shipping calculated at checkout.

SKU: CWR-64359   UPC: 632085071974

[COUNT] shoppers are looking at this right now

    A-Series White Toggle Circuit Breaker - Single Pole 2.5A

    • Meets American Boat and Yacht Council (ABYC) standards
    • The industry standard circuit breaker for Blue Sea Systems" electrical panels
    • Combines swtiching and circuit protection into a single device
    • "Trip Free" design cannot be held "ON" during fault current condition


    Specifications:
    • Amperage: 2.5A AC / 2.5A DC
    • Color: White
    • Actuator Style: Toggle
    • Poles: 1
    • Maximum Voltage: 250V AC / 65V DC
    • Circuit Breaker Type: Magnetic Hydraulic - trip free
    • Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
    • Minimum Operating Temperature: -40° C
    • Maximum Operating Temperature: 85° C
    • Mounting Screw: #6-32 Stainless Steel
    • Mounting Screw Torque: 6 in-lb (0.68 Nm)
    • Screw Terminal Torque: 14 in-lb (1.58 Nm)
    • Switching Cycles: 10000
    • Terminal Screw: #10-32 Stainless Steel
    • Weight: 0.17lb (0.08 kg)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Amperage: 2.5a
    • Box Dimensions: 1"H x 3"W x 5"L WT: 0.4 lbs
    • UPC: 632085071974
