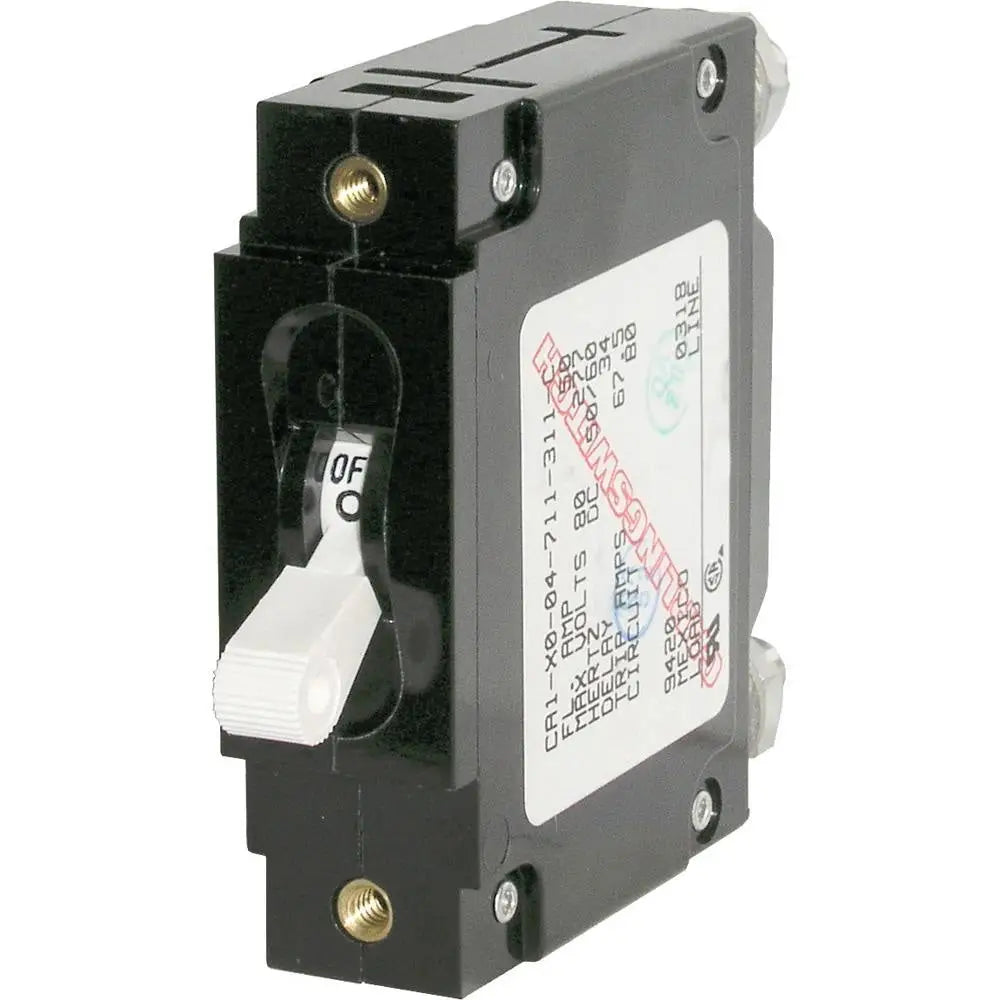

Blue Sea 7244 C-Series Toggle Single Pole - 50A [7244]

Authorized Dealer
In Stock
Regular price
$49.79
Regular price
$57.99
Sale price
$49.79
Shipping calculated at checkout.

SKU: CWR-20589   UPC: 632085072445

  • 11 items left in stock
Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
Free Shipping Orders over $149*
Secure Checkout SSL Encrypted
Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

Single-pole 50A circuit breaker that combines overcurrent protection and switching for marine, RV, and automotive electrical systems.

The Blue Sea Systems C-Series Toggle Circuit Breaker protects circuits serving inverters, bow thrusters, and windlasses. Its single-pole configuration is rated at 50A for both AC and DC applications. The white toggle actuator provides convenient switching, while the trip-free design prevents the breaker from being held closed after a trip.

  • 50A AC/DC rating: Supports circuit protection across compatible AC and DC electrical systems.
  • Single-pole configuration: Protects one circuit in a compact installation format.
  • Integrated switching and protection: Lets one device control a circuit and respond to overcurrent conditions.
  • Trip-free operation: Prevents the toggle from being held closed while a fault condition remains.
  • Magnetic-hydraulic circuit breaker: Provides circuit interruption with a mechanism suited to marine and vehicle electrical distribution.
  • White toggle actuator: Makes the breaker easy to identify and operate on an installed panel.
This C-Series breaker is intended for electrical panels and distribution systems in boats, RVs, and vehicles where a 50A circuit requires both switching and overcurrent protection. It can be used with equipment such as inverters, bow thrusters, and windlasses when the circuit requirements match the breaker’s ratings. The single-pole design protects one energized circuit, while the toggle provides a clear manual control point. Its trip-free function helps prevent continued operation during an overcurrent event. The breaker accepts a 1/4-20 tin-plated brass terminal stud and uses a #6-32 stainless steel mounting screw.
Brand Blue Sea Systems
Model 7244
Product Type Circuit breaker
Series C-Series
Configuration Single pole
Amperage 50A AC / 50A DC
Maximum Voltage 240V AC / 80V DC
Color White
Actuator Style Toggle
Breaker Type Magnetic hydraulic, trip-free
Weight 0.36 lb
UPC 632085072445
  • What is this product?
    This is a Blue Sea Systems C-Series single-pole toggle circuit breaker rated at 50A.
  • What applications is it designed for?
    It provides overcurrent protection for compatible circuits serving inverters, bow thrusters, windlasses, and similar marine or vehicle equipment.
  • Can it be used with AC and DC systems?
    Yes. The breaker is rated at 50A AC and 50A DC, with maximum voltage ratings of 240V AC and 80V DC.
  • What does trip-free mean?
    Trip-free operation prevents the breaker from being held closed after it trips during an overcurrent condition.
  • What is the part number?
    The manufacturer part number is 7244, and the UPC is 632085072445.
