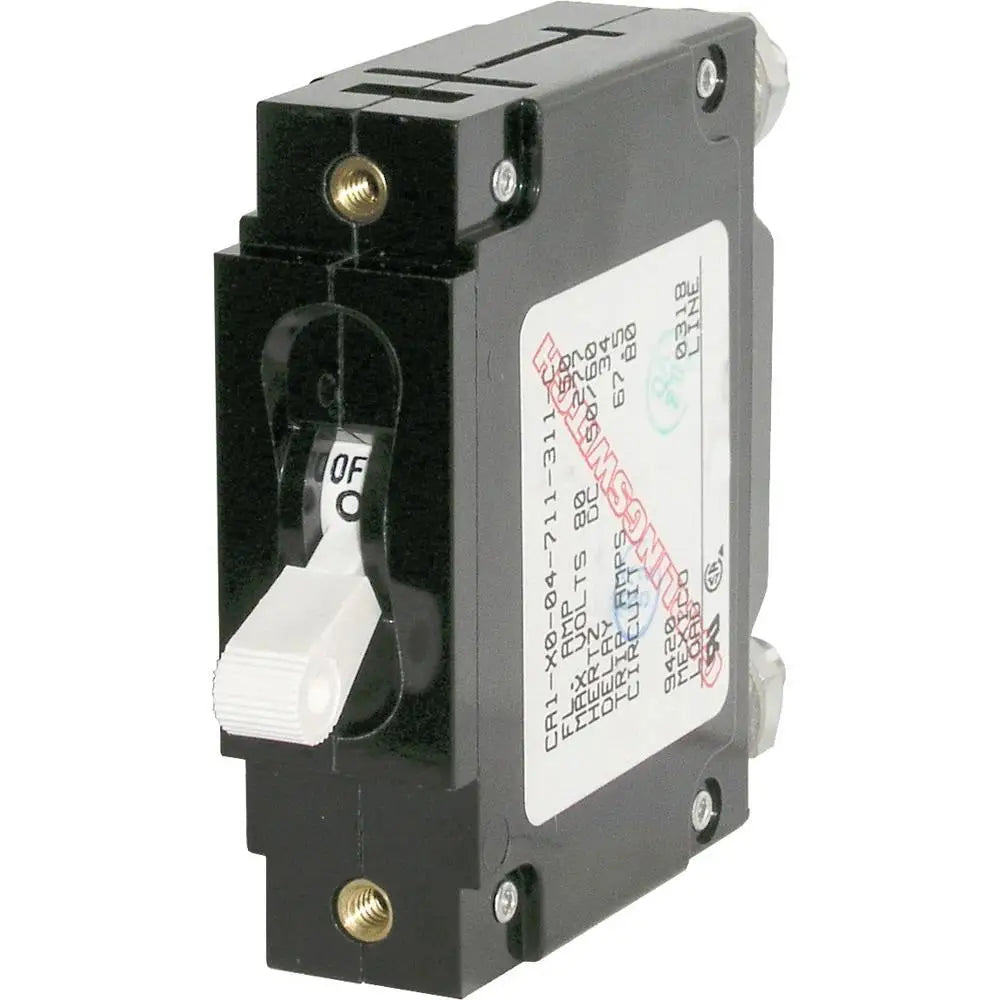

Blue Sea 7351 C-Series Toggle Single Pole - 10A [7351]

The Blue Sea Systems C-Series Toggle Circuit Breaker provides overcurrent protection for inverters, bow thrusters, windlasses, and branch circuits. Its toggle actuator combines circuit switching with protection in a single panel-mounted device. The trip-free design prevents the breaker from being held closed after a trip. The white breaker is rated for 10A AC and 10A DC applications.

• 10A AC/DC rating: Provides appropriately rated overcurrent protection for compatible electrical circuits.
• Single-pole configuration: Supports protection and switching for one circuit.
• Toggle actuator: Makes circuit control straightforward from an electrical panel.
• Trip-free operation: Prevents the breaker from being held closed after it trips.
• Magnetic-hydraulic design: Provides circuit-breaker operation for marine and vehicle electrical systems.
• White finish: Coordinates with compatible Blue Sea Systems C-Series panel layouts.

• What is the amperage rating?
  The breaker is rated at 10A for both AC and DC applications.
• How many poles does it have?
  This model uses a single-pole configuration for one circuit.
• What is the breaker used for?
  It provides overcurrent protection for compatible circuits such as inverters, bow thrusters, windlasses, and other marine or vehicle electrical loads.
• What does trip-free mean?
  The breaker cannot be held closed after it trips, helping prevent continued operation during an overload condition.
• Is it a switch as well as a circuit breaker?
  Yes. The toggle combines manual circuit switching and overcurrent protection in one device.
