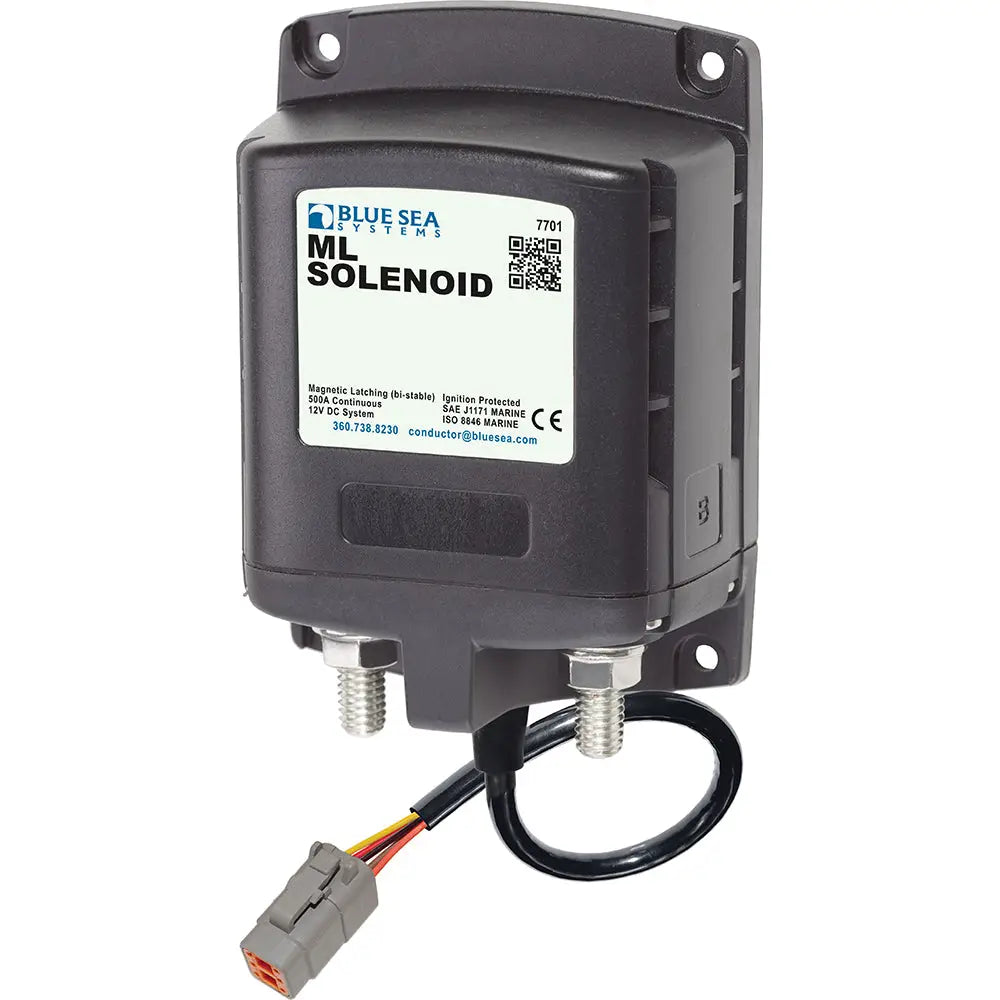

Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100]

Regular price
$181.79
Regular price
$247.99
Sale price
$181.79
Shipping calculated at checkout.

CWR-81398

    Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
    Free Shipping Orders over $149*
    Secure Checkout SSL Encrypted
    Manufacturer Warranty Full Warranty Included

    Questions? Call, text or email us.

    925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

    7701100 ML Solenoid 12V 500A with Deutsch Connector

    500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

    Features:

    • 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
    • Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
    • Silver alloy contacts provides high reliability for switching live loads
    • 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
    • 7/8" (22mm) stud length accepts multiple cable terminals
    • Label recesses for circuit identification
    • Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

    Specifications:

    • Control Circuit Connection: Deutsch DTM
    • Nominal Voltage: 12VDC
    • Manual Control: No
    • Coil Function: Bi-Stable
    • Mounting: #10
    • Amperage Operating Current Continous: 0A
    • Terminal Stud Torque: 140 in-lb (15.82 Nm)
    • Continuous Rating: 500A
    • Intermittent Rating: 700A (5 min)
    • Cable Size to Meet Ratings: 2x (4/0)
    • Stud Material: Tinned Copper
    • Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
    • Terminal Stud Length: 0.875" (22.23 mm)
    • Terminal Stud Size: 3/8" - 16 (M10)
    • Weight: 1.75lb (0.79 kg)
