Blue Sea 7713100 ML-RBS Remote Battery Switch w/Manual Control Auto Release Deutsch Connector - 12V [7713100]
- Regular price
-
$270.79 - Regular price
-
$370.99 - Sale price
-
$270.79
CWR-81421
-
Hurry, only 2 items left in stock!
Couldn't load pickup availability
Questions? Call, text or email us.

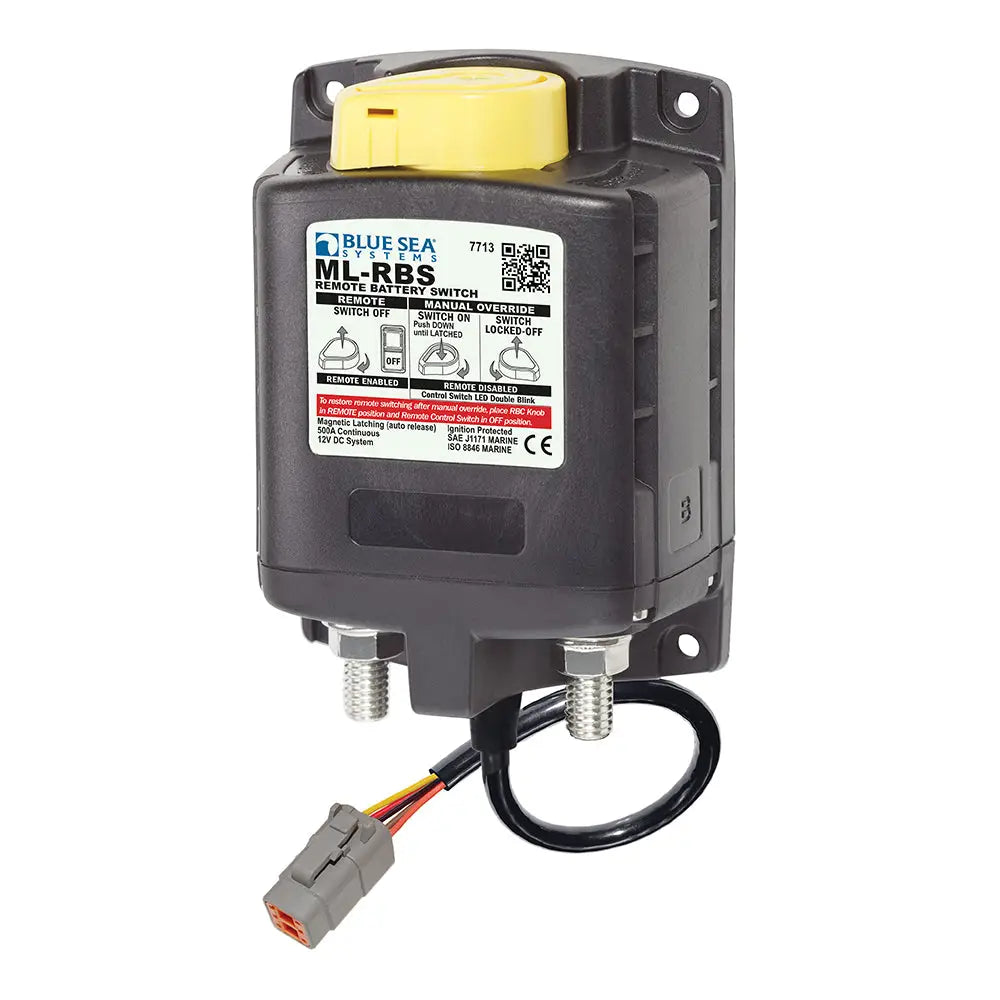

The Blue Sea Systems ML-RBS 7713100 is a 12V remote battery switch with manual control auto release and a Deutsch connector. Its magnetic-latching design supports remote switching while drawing power primarily during state changes. A manual override provides local ON/OFF control and locked-OFF servicing access, while the LED output can support remote switch-state indication.
- 12V DC operation: Fits 12V battery-management systems in automotive, RV, marine, and similar applications.
- 500A switching capacity: Handles high-current battery connection and disconnection under load.
- Magnetic-latching design: Minimizes control-circuit draw while the switch remains ON or OFF.
- Manual control auto release: Provides local control and a locked-OFF position for servicing.
- Deutsch DTM connector: Provides a defined control-circuit connection for organized installation.
- LED output: Supports remote indication of switch state when paired with a suitable indicator.
Use the ML-RBS 7713100 as a remotely controlled master battery disconnect for vehicles, RVs, boats, auxiliary power systems, and other 12V installations that require high-current switching. The remote control can connect or disconnect the battery bank from the load, while the manual override remains accessible for local operation without relying solely on the remote circuit.
The included Deutsch connector organizes the control wiring. Connect the red lead to control positive VDC for closing, the black lead to ground, and the yellow lead to the negative VDC LED output. The magnetic-latching mechanism helps limit control power consumption in steady ON or OFF states, and the manual lock-OFF position supports safer battery isolation during maintenance.
| Brand | Blue Sea Systems |
|---|---|
| Model | 7713100 |
| Product type | Remote battery switch |
| Nominal voltage | 12V DC |
| Switching capacity | 500A |
| Control connection | Deutsch DTM |
| Control function | Manual control auto release |
| Control circuit voltage | 9–16V DC |
| Weight | 2.2 lb |
| UPC | 00632085077136 |
-
What voltage system is this switch designed for?
It is designed for 12V DC battery systems. -
Can the switch be operated manually?
Yes. It includes manual control with auto release and a locked-OFF capability for servicing. -
What connector does the 7713100 use?
It uses a Deutsch DTM control connector. -
What do the control wires do?
The red wire is control positive VDC to close, the black wire is ground, and the yellow wire provides the negative VDC LED output. -
Where can this battery switch be used?
It suits 12V battery-management applications such as automotive, RV, marine, and auxiliary power installations.
