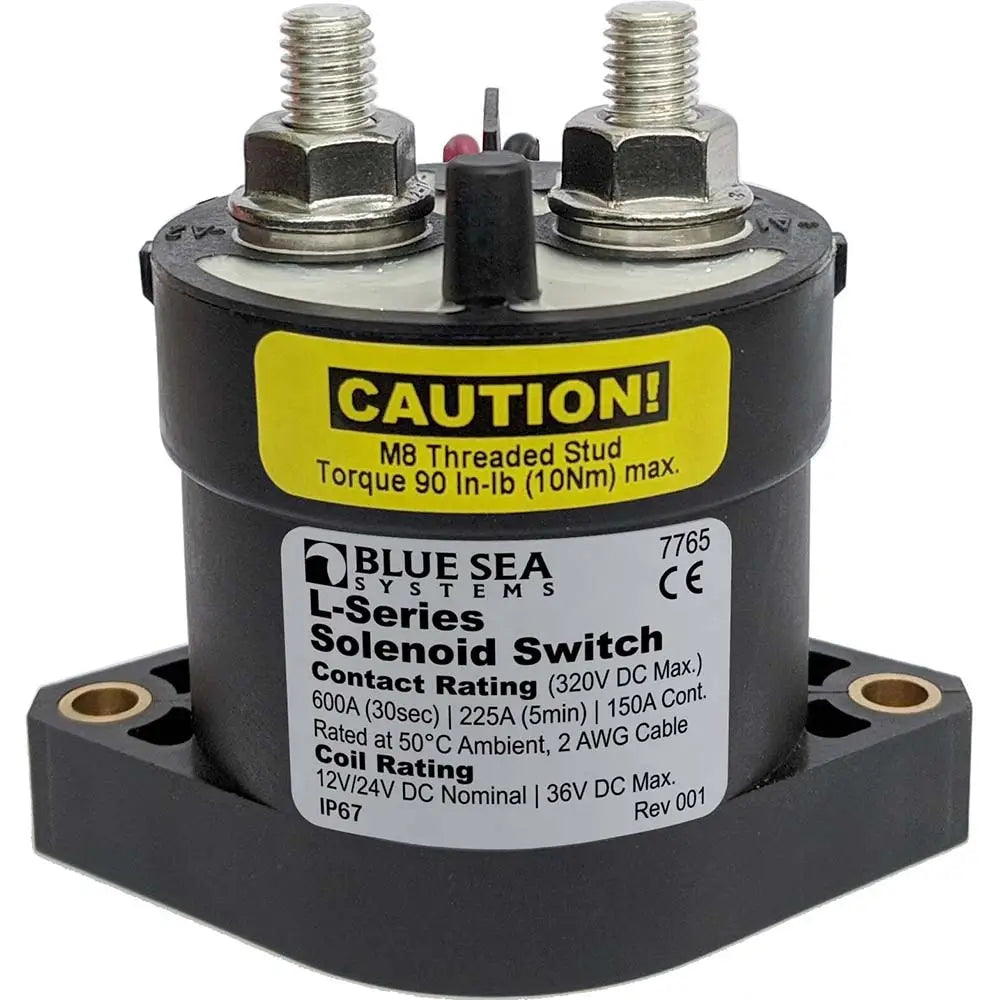

Blue Sea 7765 L-Series Solenoid Switch - 150A - 12/24V DC [7765]

The Blue Sea Systems 7765 L-Series Solenoid provides continuous-duty switching for DC subpanels, thrusters, windlasses, inverters, and other medium-amp loads. Its SPST normally open configuration uses hermetically sealed contacts for enclosed electrical switching. The solenoid accepts 9–36V DC control input and is intended for nominal 12V or 24V systems. A coil-control circuit helps limit continuous heating and control-circuit draw.

• 150A continuous rating: Handles continuous-duty switching for appropriately sized medium-amp DC loads.
• 12/24V DC nominal operation: Supports common marine electrical system voltages.
• SPST normally open configuration: Keeps the switched circuit open until the solenoid is activated.
• Hermetically sealed contacts: Encloses the contact mechanism for reliable switching in marine electrical installations.
• Remote low-amperage activation: Allows control from an ON-OFF switch mounted away from the high-current load.
• Coil-control circuit: Limits continuous control-circuit draw to 0.13A at 12V and 0.07A at 24V.

• What is the Blue Sea Systems 7765 used for?
  It remotely switches medium-amp DC loads such as subpanels, thrusters, windlasses, inverters, and similar marine equipment.
• Is this solenoid compatible with 12V and 24V systems?
  Yes. It is rated for nominal 12V and 24V DC systems, with a 9–36V DC control-circuit range.
• What type of switch does it use?
  It is a continuous-duty SPST normally open solenoid activated by a low-amperage ON-OFF control switch.
• Is the remote switch included?
  No. The Blue Sea Systems 8230 remote ON-OFF switch is identified as a compatible accessory and is sold separately.
• What terminals does it accept?
  The solenoid uses M8 terminal studs that accept 5/16-inch terminals.
