Blue Sea 8005 DC Analog Ammeter - 2-3/4" Face, 0-25 Amperes DC [8005]

The Blue Sea Systems 8005 measures DC current on an analog scale from 0 to 25A. Its internal shunt simplifies installation, while the backlit face improves visibility in low-light conditions. The meter uses a 2-3/4-inch face and draws 1mA at full scale. It’s suited to monitoring circuits such as solar, wind-generator, and other onboard DC power applications.

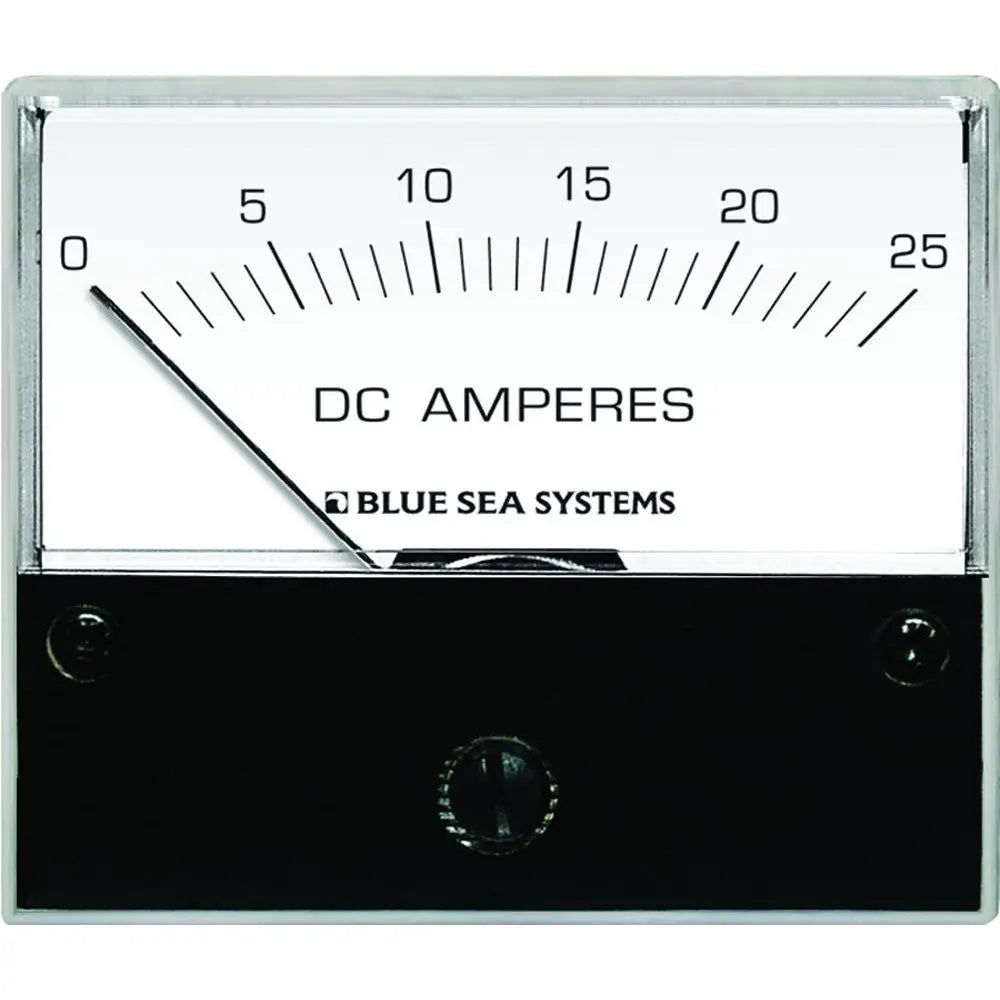

• 0–25A DC measurement range: Shows current draw or output on an easy-to-read analog scale.
• Internal shunt: Senses current without requiring a separate external shunt.
• 2-3/4-inch face: Provides a readable display for marine panels and electrical monitoring layouts.

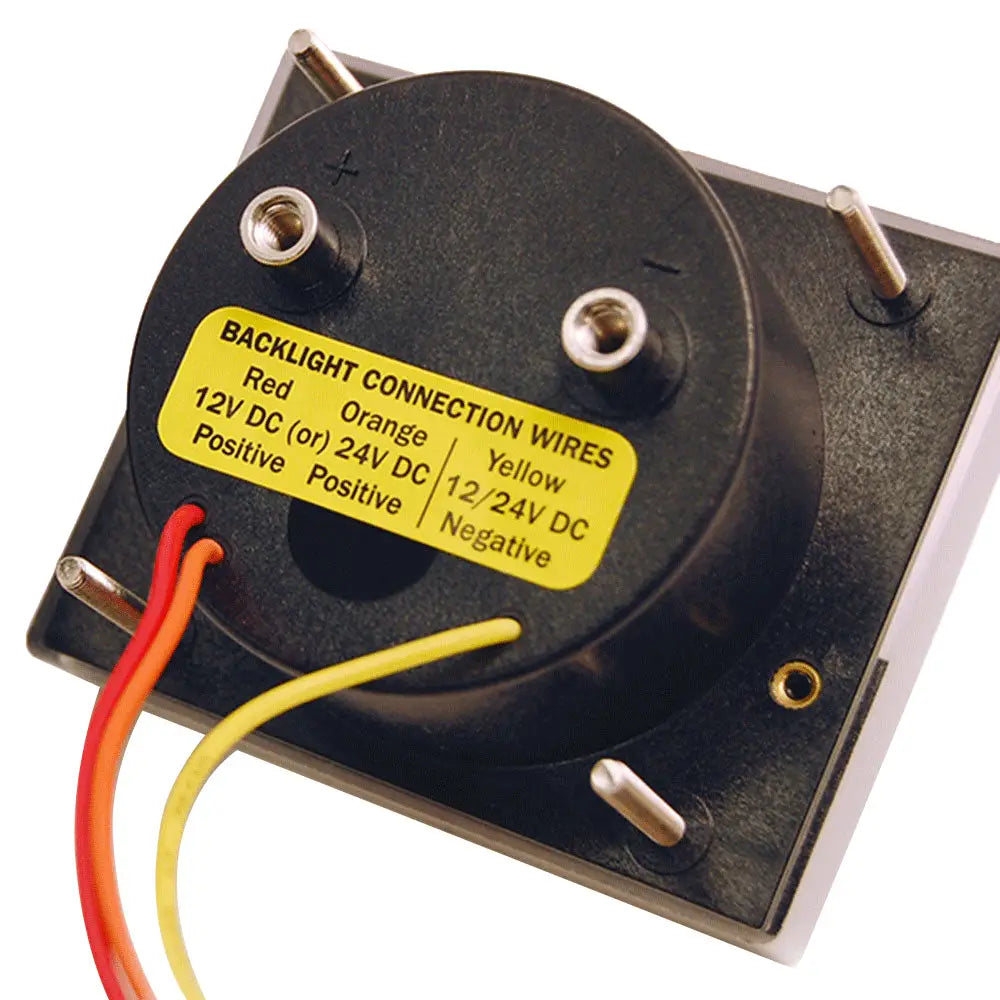

• Backlit meter face: Supports viewing in low-light conditions; backlight connections require a DC power source.
• 8–16V DC input range: Fits common low-voltage marine electrical systems.
• 1mA full-scale meter draw: Helps keep the instrument’s operating consumption low.

• What does the Blue Sea 8005 measure?
  It measures DC current from 0 to 25 amperes.
• Does this ammeter use an external shunt?
  No. The 8005 uses an internal shunt.
• Is the meter face illuminated?
  Yes. It has a backlit face; the backlight requires a separate DC power connection.
• What voltage systems is it intended for?
  The specified input voltage range is 8–16V DC.
• What mounting opening is required?
  The 8005 uses a 1-7/8-inch mounting hole and can be surface mounted or panel mounted.
