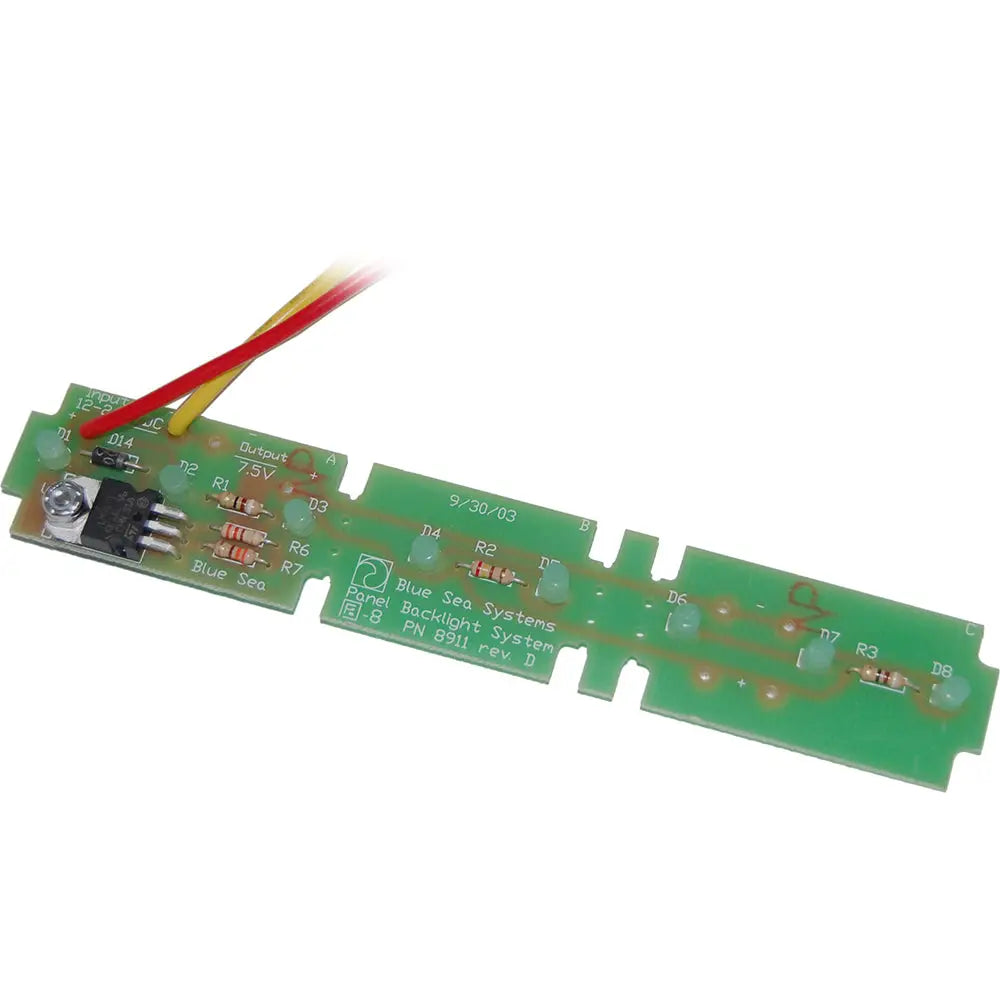

Blue Sea 8065 8/5/3 Position Label Backlight System [8065]

This label backlight system connects to a 12 or 24 VDC source through two 6-inch 18 AWG wire leads. Its integrated reverse-polarity protection helps protect the installation during connection. The assembly fits 8-position panels and snaps apart for 5- or 3-position configurations, with no separate kit required for panels that include standard backlighting.

• Supports 8, 5, or 3 label positions, allowing fitment across compatible Blue Sea Systems panel configurations.
• Connects to 12 or 24 VDC sources using two 6-inch 18 AWG wire leads for straightforward panel integration.
• Installs in Blue Sea Systems circuit breaker panels to illuminate labels for easier identification in low-light conditions.
• Built-in reverse-polarity protection helps reduce connection-related installation risk.
• Snaps apart for shorter 5- or 3-position layouts without requiring a different backlight assembly.

• What is the Blue Sea Systems 8065 used for?
  It illuminates labels on compatible Blue Sea Systems circuit breaker panels for easier identification in low-light conditions.
• Which panel configurations does it support?
  The assembly supports 8-position panels and can snap apart for 5- or 3-position configurations.
• What voltage does it require?
  It connects to either a 12 VDC or 24 VDC source.
• What wiring is included?
  It uses two 6-inch 18 AWG wire leads for connection to the DC power source.
• Does it include reverse-polarity protection?
  Yes. Reverse-polarity protection is built into the backlight system.
