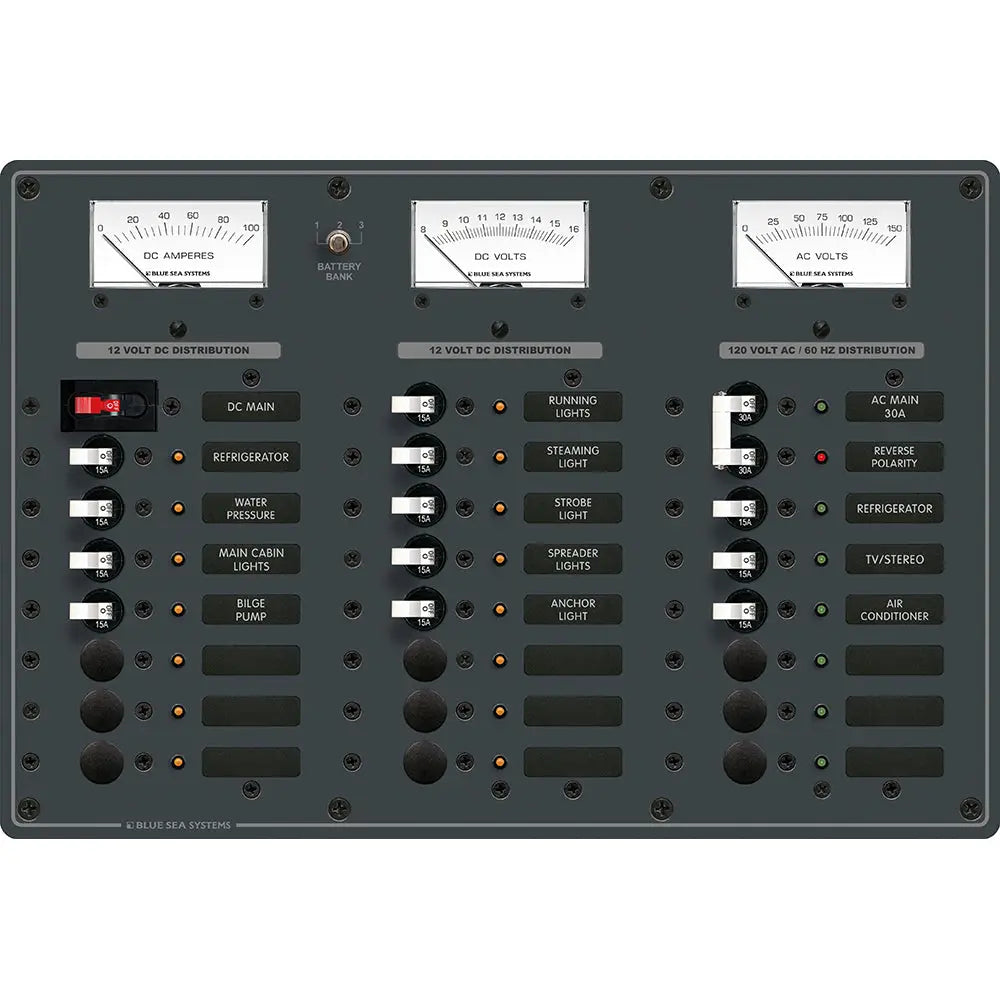

Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches [8084]

Description

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

Features:

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

  • Red reverse polarity indicating LED
  • Ready for installation of optional 4029 AC Isolation Cover
  • 9353, 0-150 Volt AC Voltmeter

DC Features:

  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter
  • Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

  • AC Positions: Main +6
  • DC Positions: Main +15
  • 120 Volts AC
  • 12 Volts DC
  • (1) 30A - (3) 15A AC Circuit Breakers
  • (1) 100A - (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Max Breaker Quantity: 6 AC / 15 DC
  • AC/DC: Both
  • Voltage: 120v/12v
  • Box Dimensions: 7"H x 15"W x 23"L WT: 8.6 lbs
  • UPC: 632085080846

Owner's Manual (pdf)
