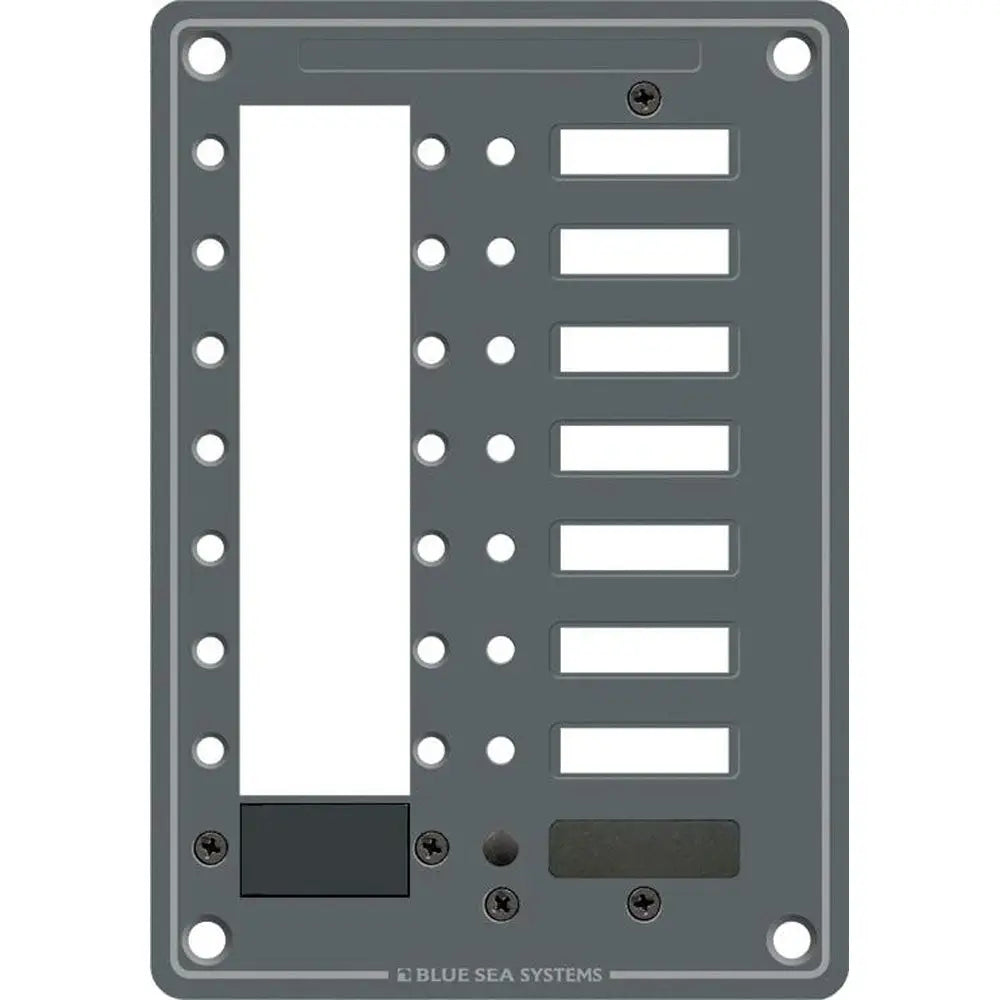

DC circuit breaker mounting panel for organizing up to eight Blue Sea Systems C-Series circuit breakers in marine electrical installations, with a slate-gray finish and label-ready design for clearer circuit identification.

This eight-position panel provides a structured mounting surface for C-Series circuit breakers in boat and other DC electrical systems. Its heavy 1/8-inch 5052 aluminum construction supports a rigid installation surface, while the two-part polyurethane slate-gray finish provides a smooth, consistent appearance. The panel accepts standard Blue Sea Systems backlight labels and “ON” indication LEDs for improved circuit visibility. Dimensions are approximately 5.25 inches wide by 7.50 inches high.

  • Eight breaker positions: Organizes multiple C-Series circuit breakers in one compact panel layout.
  • C-Series compatibility: Designed specifically for Blue Sea Systems C-Series circuit breakers for proper product-family fit.
  • 1/8-inch 5052 aluminum: Provides a rigid panel surface for marine electrical installation.
  • Slate-gray polyurethane finish: Creates a consistent, easy-to-coordinate appearance in the electrical panel area.
  • Label and LED ready: Accepts standard Blue Sea Systems backlight labels and “ON” indication LEDs for easier circuit identification.

Use this panel when a boat’s DC electrical system needs a clean, organized mounting location for multiple C-Series circuit breakers. The eight-position layout keeps related circuits together and helps make breaker access and identification more straightforward during routine operation or service.

The panel is made from heavy 1/8-inch 5052 aluminum and finished in slate gray with a two-part polyurethane coating. Standard Blue Sea Systems backlight labels can identify individual circuits, while compatible “ON” indication LEDs can provide at-a-glance status visibility. Its approximately 5.25-by-7.50-inch footprint suits installations planned around the Blue Sea Systems C-Series panel format.

This is a mounting panel rather than a complete breaker assembly; select compatible C-Series circuit breakers and any desired labels or indication LEDs separately as needed for the installation.

Brand Blue Sea Systems
Model 8087
Product type DC circuit breaker mounting panel
Configuration 8 positions
Compatibility Blue Sea Systems C-Series circuit breakers
Material 1/8-inch 5052 aluminum alloy
Finish Two-part polyurethane, slate gray
Dimensions 5.25 in W × 7.50 in H (133.35 × 190.50 mm)
  • What is this panel designed for?
    It is designed to mount up to eight Blue Sea Systems C-Series circuit breakers.
  • Are circuit breakers included?
    No. The product is a mounting panel; compatible C-Series circuit breakers are selected separately.
  • Can the panel use backlit labels?
    Yes. It accepts standard Blue Sea Systems backlight labels.
  • Can “ON” indication LEDs be added?
    Yes. The panel accepts standard Blue Sea Systems “ON” indication LEDs.
  • What are the panel dimensions?
    The panel measures approximately 5.25 inches wide by 7.50 inches high, or 133.35 by 190.50 mm.
