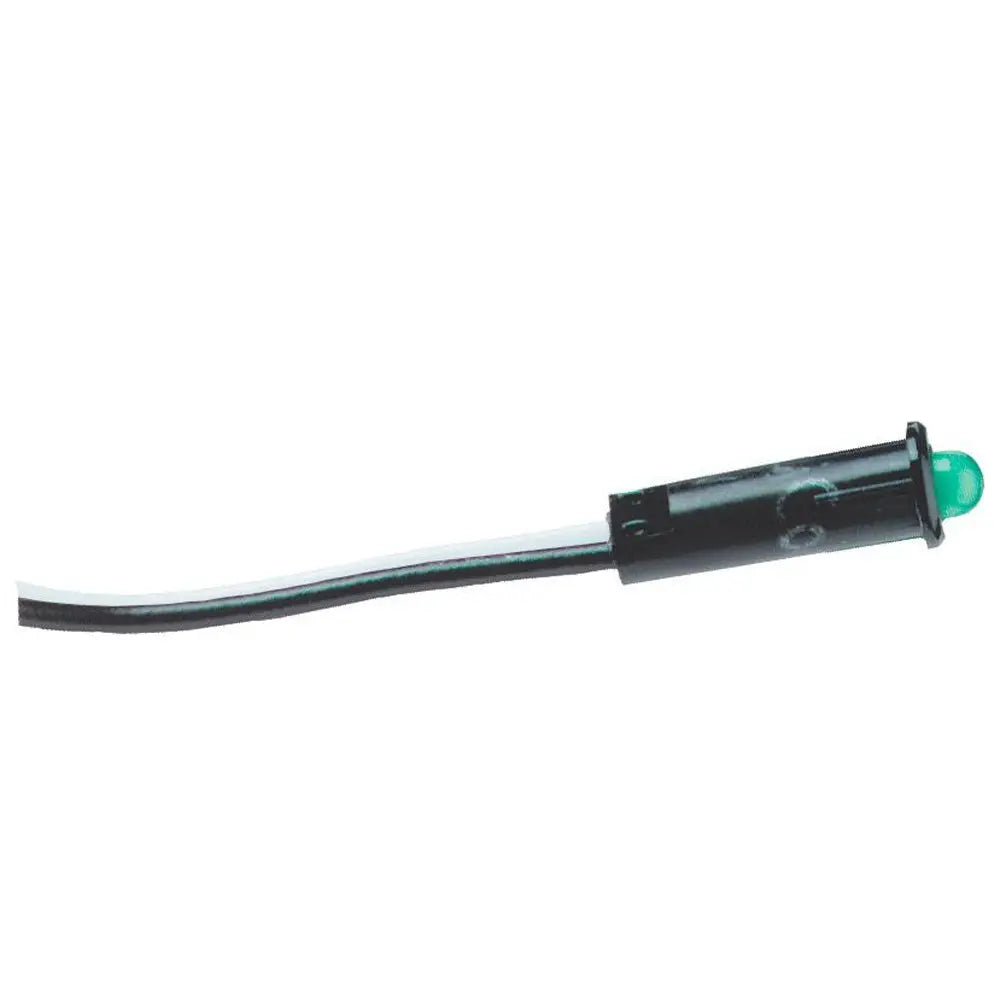

Blue Sea 8172 Green LED Indicator Light [8172]

Authorized Dealer

In Stock

Regular price: $4.79
Regular price: ~~$4.99~~
Sale price: $4.79

Shipping calculated at checkout.

SKU: CWR-20714 UPC: 632085081720

Free Shipping Orders over $149.99

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689) · shop@lotzoutdoors.com

LED indicator light for 12V or 24V DC marine electrical panels, providing a clear green status signal for circuit monitoring, alarms, and general panel indication.

The Blue Sea Systems 8172 installs in any Blue Sea Systems circuit breaker panel using a simple push-in mount. Its green LED operates on nominal 12V or 24V DC systems and uses a resistor-based circuit for straightforward indicator applications. The compact light fits an 11/64 in (4.37 mm) mounting hole and accommodates panels of any thickness.

Green LED illumination: Provides an easy-to-see visual signal for status, power, or alarm indication.
12V and 24V DC compatibility: Supports common marine electrical system voltages with one indicator model.
Push-in installation: Mounts directly into a prepared panel hole without requiring a bracket.
Compact 11/64 in mounting hole: Fits small panel layouts while preserving space for other controls.
Low-current operation: Draws approximately 1.5 mA at 12V and 3.0 mA at 24V, helping limit electrical load.
Panel and alarm use: Works as a general indicator or alarm light in marine electrical applications.

The Blue Sea Systems 8172 is a green LED indicator intended for marine electrical panels, circuit breaker enclosures, and other 12V or 24V DC monitoring points. Press the light into an 11/64 in (4.37 mm) prepared mounting hole for a clean installation in material of any thickness. Once wired into the relevant circuit, the illuminated green lens provides a quick visual reference for system status, power presence, or an alarm condition.

Brand	Blue Sea Systems
Model	8172
Product type	LED indicator light
Color	Green
Nominal voltage	12V DC / 24V DC
Current	1.5 mA at 12V; 3.0 mA at 24V
Mounting hole	11/64 in (4.37 mm)
Wire gauge	26
Weight	0.03 lb (0.01 kg)
UPC	632085081720

What is the Blue Sea Systems 8172 used for?
It provides green visual indication for power, circuit status, or alarm conditions in marine electrical panels.
What voltage systems does it support?
It is intended for nominal 12V DC and 24V DC systems.
How is the light installed?
It uses a push-in installation through an 11/64 in (4.37 mm) mounting hole.
Will it fit different panel thicknesses?
Yes. The push-in design mounts in material of any thickness.
Can it be used with a Blue Sea Systems circuit breaker panel?
Yes. It is designed for installation in any Blue Sea Systems circuit breaker panel.
