Blue Sea 8236 DC Digital Ammeter [8236]

Authorized Dealer

Out of Stock

Regular price: $226.79
Regular price: ~~$310.99~~
Sale price: $226.79

Shipping calculated at checkout.

SKU: CWR-20747 UPC: 632085082369

Free Shipping Orders over $149.99

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689) · shop@lotzoutdoors.com

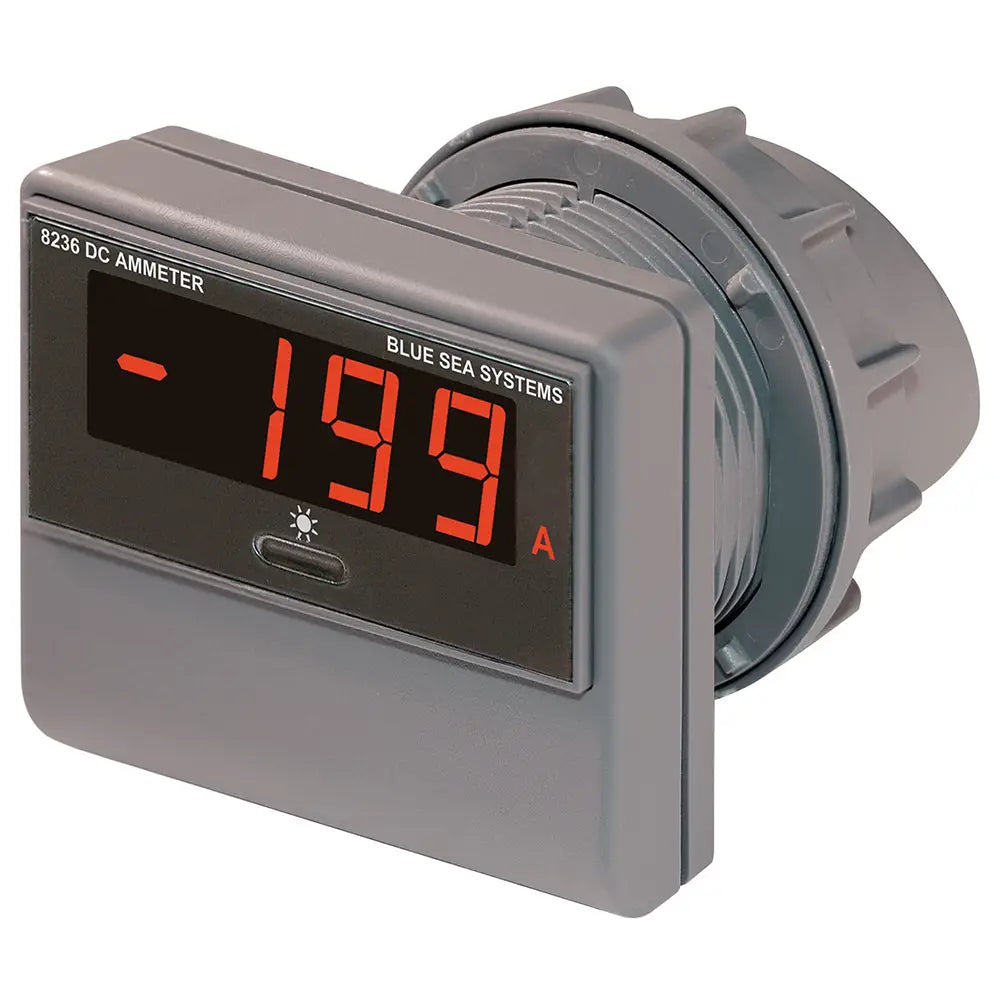

DC digital ammeter for monitoring current in marine and other 8–32V DC electrical systems, with a measurement range from -500 to +500 amps and an included 500-amp shunt.

Monitor DC current through a clear digital display that supports three brightness levels for different viewing conditions. The splashproof front suits marine electrical panels, while manual sleep mode blanks the display to conserve power. The meter is intended for negative-side shunt installation and includes the Blue Sea Systems 8255 500-amp shunt.

Measures from -500 to +500 amps for broad DC current monitoring.
Three display-brightness levels help maintain readable information in changing conditions.
Splashproof front supports use in marine electrical panel environments.
Manual sleep mode blanks the display when the meter isn’t needed, reducing power consumption.
Includes a 500-amp shunt for current measurement through the monitored circuit.
Supports 12, 24, 32, 36, and 42V DC system applications as specified for this model.

This digital ammeter gives boat owners, installers, and electrical-system users a direct view of current flow rather than relying on estimates. The included 500-amp shunt connects to the monitored DC circuit and provides the signal used by the meter. The standard configuration operates with the shunt on the negative side of the circuit; a Shunt Shifter is required for positive-side installations such as alternator applications. Three brightness settings support panel readability, while manual sleep mode helps conserve power when continuous display operation isn’t required. Use it for monitoring battery banks, charging circuits, distribution systems, and other compatible marine DC installations.

Brand	Blue Sea Systems
Model	8236
Product type	DC digital ammeter
Measurement range	-500 to +500 A
Input voltage	8–32V DC
Included component	500A DC shunt, part 8255
Power consumption	0.60W minimum; 1W maximum
Sleep mode	Manual
Weight	1.05 lb (0.48 kg)

What does this meter measure?
It measures DC amperage from -500 to +500 amps.
What is included?
The meter includes a 500-amp DC shunt, part 8255.
Where should the shunt be installed?
The standard meter configuration uses the shunt on the negative side of the circuit.
Can it be used on the positive side of a circuit?
Positive-side applications, such as alternator installations, require a compatible Shunt Shifter.
What DC systems does it support?
The product description specifies use with 12, 24, 32, 36, and 42V DC systems; the verified meter input specification is 8–32V DC.
