AC analog voltage monitoring for marine electrical systems, with a 0–150 VAC range and an easy-to-read 2-inch backlit face.

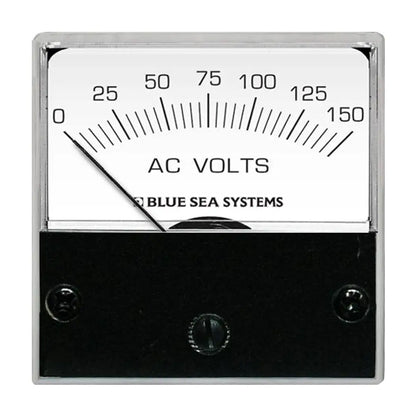

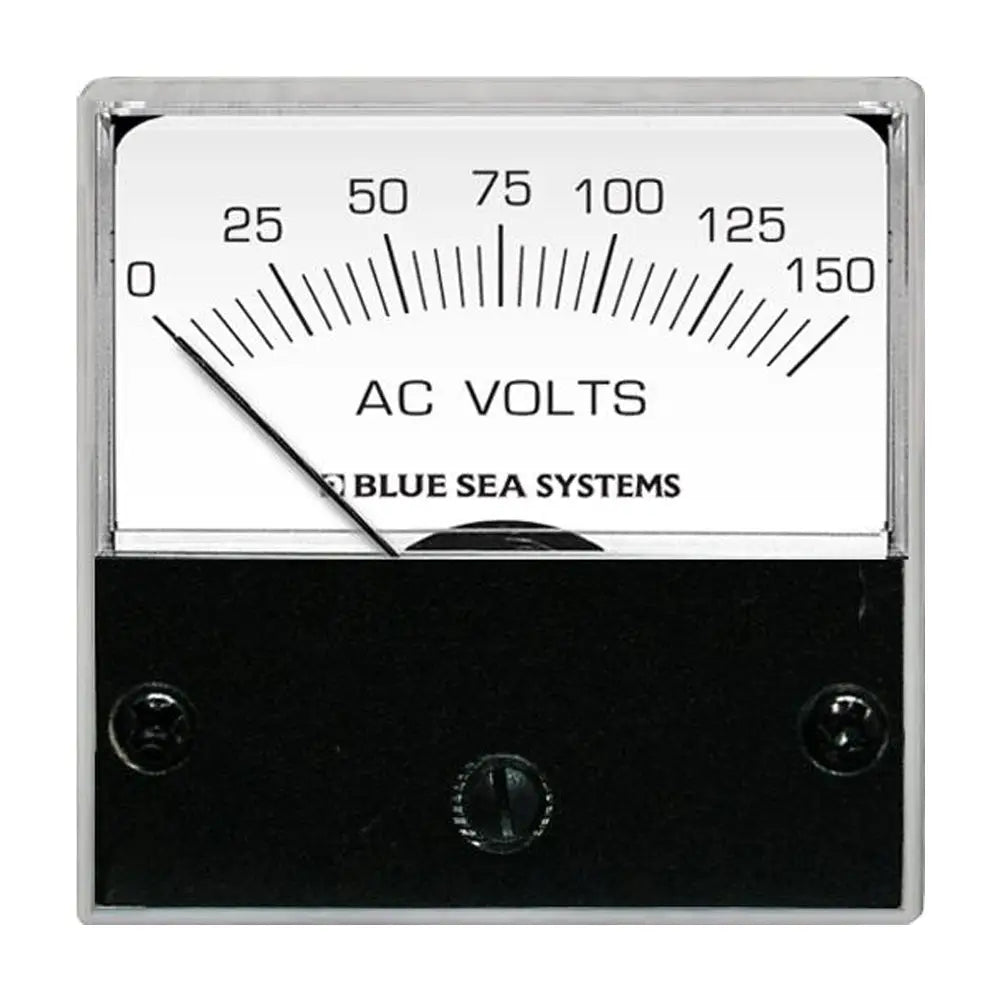

The Blue Sea Systems 8244 Micro Voltmeter displays AC voltage on an analog scale marked in 5-volt increments. Its simple two-wire connection attaches to AC hot and neutral, while the meter draws power from the same connection it measures. The backlit face supports visibility in low-light installations.

  • 0–150 VAC range: Monitors AC voltage within the meter’s rated input range.
  • 2-inch analog face: Provides a compact display for marine electrical panels.
  • 5-volt dial increments: Makes voltage readings easy to interpret at a glance.
  • Two-wire connection: Connects to AC hot and neutral for straightforward installation.
  • Self-powered sensing: The meter senses and powers from the same AC connection.

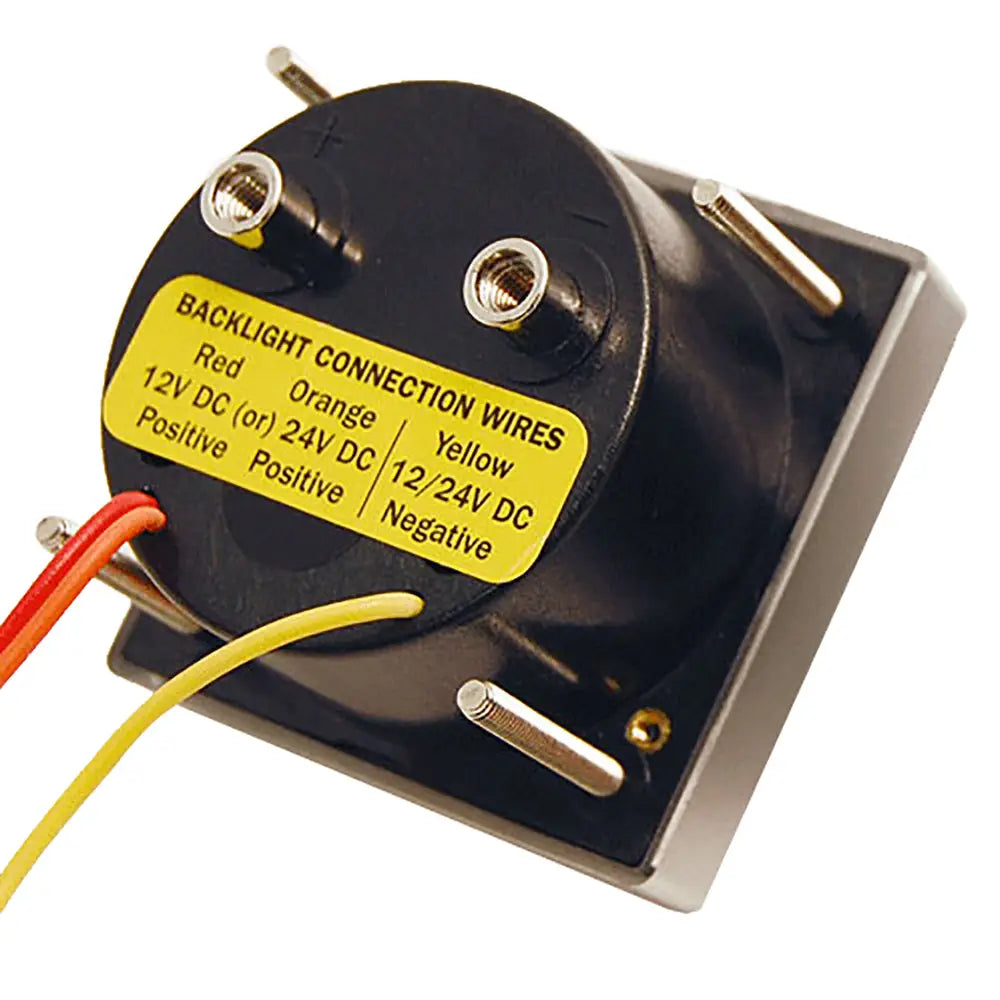

  • Backlit face: Improves readability in low-light conditions.

The 8244 is intended for monitoring AC voltage in marine electrical panels and other compatible AC power-monitoring installations. Its analog display offers a continuous needle reading rather than a digital numeric readout, making it useful for observing voltage levels during normal system operation.

Installation uses a two-wire connection to the AC hot and neutral conductors. The meter has a 2-inch face, a 0–150 VAC range, and a dial marked in 5-volt increments. The published specifications list approximately 1 milliampere of draw and accuracy of 3% of the scale range.

Use the supplied installation guidance to confirm wiring, mounting clearance, and panel suitability before installation. This product is intended for qualified installation in appropriate AC electrical systems.

Brand Blue Sea Systems
Model 8244
Product type AC analog micro voltmeter
Voltage range 0–150 volts AC
Face size 2 inches
Dial increments 5 volts
Connection Two-wire AC hot and neutral
Display Backlit analog scale
Amperage draw 1 milliampere
Accuracy 3% of scale range
  • What does this meter measure?
    It measures AC voltage from 0 to 150 volts.
  • What type of display does it use?
    It uses a backlit analog needle display with 5-volt dial increments.
  • How does it connect?
    The meter uses a two-wire connection to AC hot and neutral.
  • Does it require a separate power connection?
    No. The meter senses and powers from the same AC connection.
  • What is included with installation information?
    Installation guidance covers wiring and mounting requirements for the meter.
