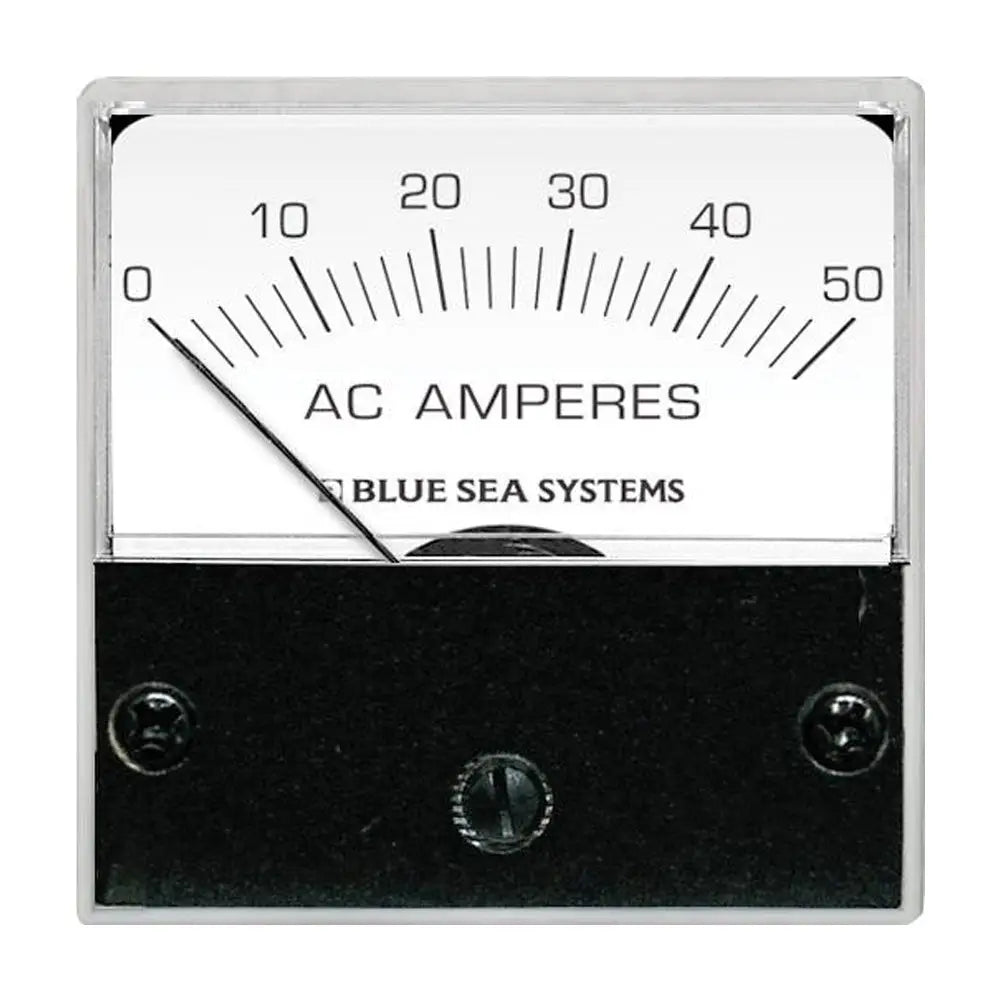

Blue Sea 8246 AC Analog Micro A [8246]

The Blue Sea Systems 8246 uses a simple two-wire connection and derives its sensing and power through the included AC current transformer. Route the AC hot lead through the coil to measure current without placing the meter directly in series with the circuit. The analog display provides an at-a-glance reading, while the backlit face remains visible in low-light conditions.

• 0–50A AC measurement range: Monitor current draw on compatible marine electrical circuits.
• Included AC current transformer: Sense current by routing the measured conductor through the coil.

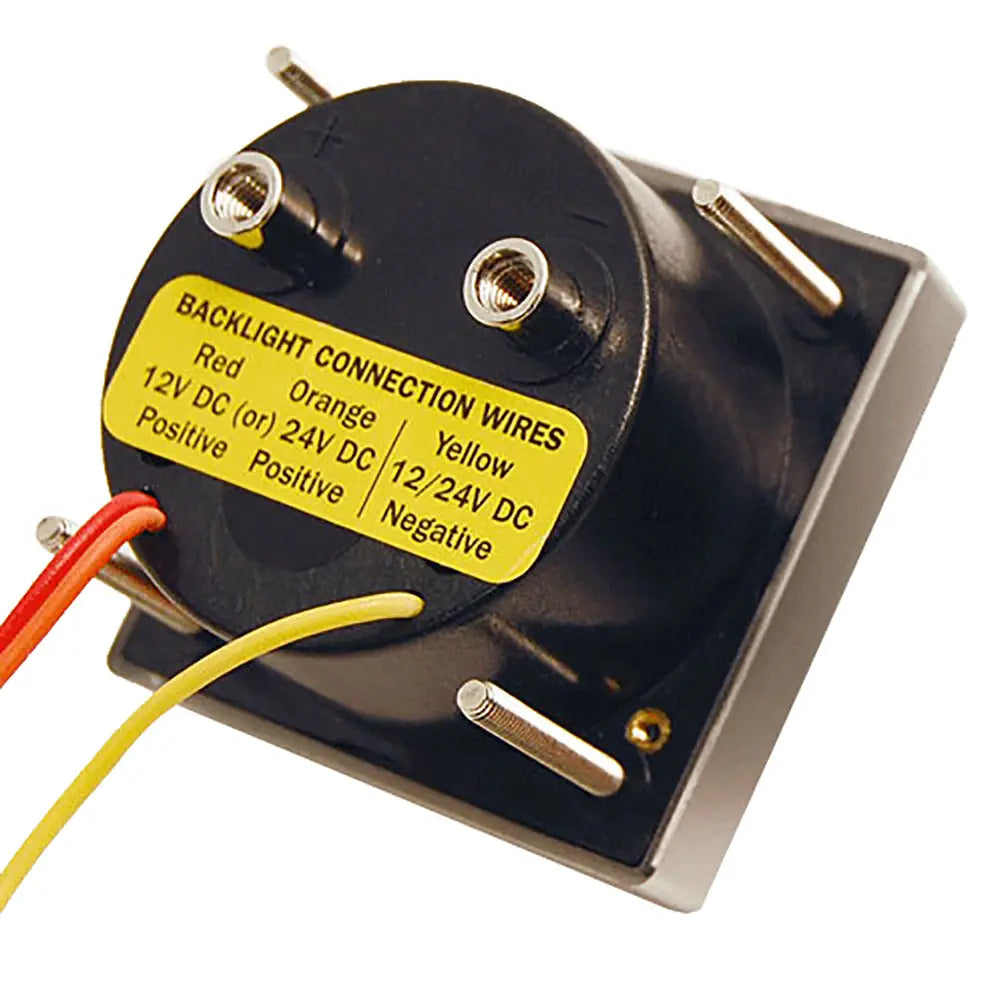

• Simple two-wire connection: Streamlines wiring during panel installation.
• Backlit analog face: Improves readability in low-light environments.
• Compact 2-inch meter face: Fits space-conscious electrical monitoring panels.

• What does the Blue Sea 8246 measure?
  It measures AC current from 0 to 50 amperes.
• How does the meter sense current?
  The included transformer coil slips over the conductor being measured and sends the sensing signal to the meter.
• How is the meter connected?
  It uses a simple two-wire connection to the supplied sensing coil.
• Is the display readable in low light?
  Yes. The meter face includes backlighting.
• What is included?
  The product includes the analog meter and an AC current transformer coil.
