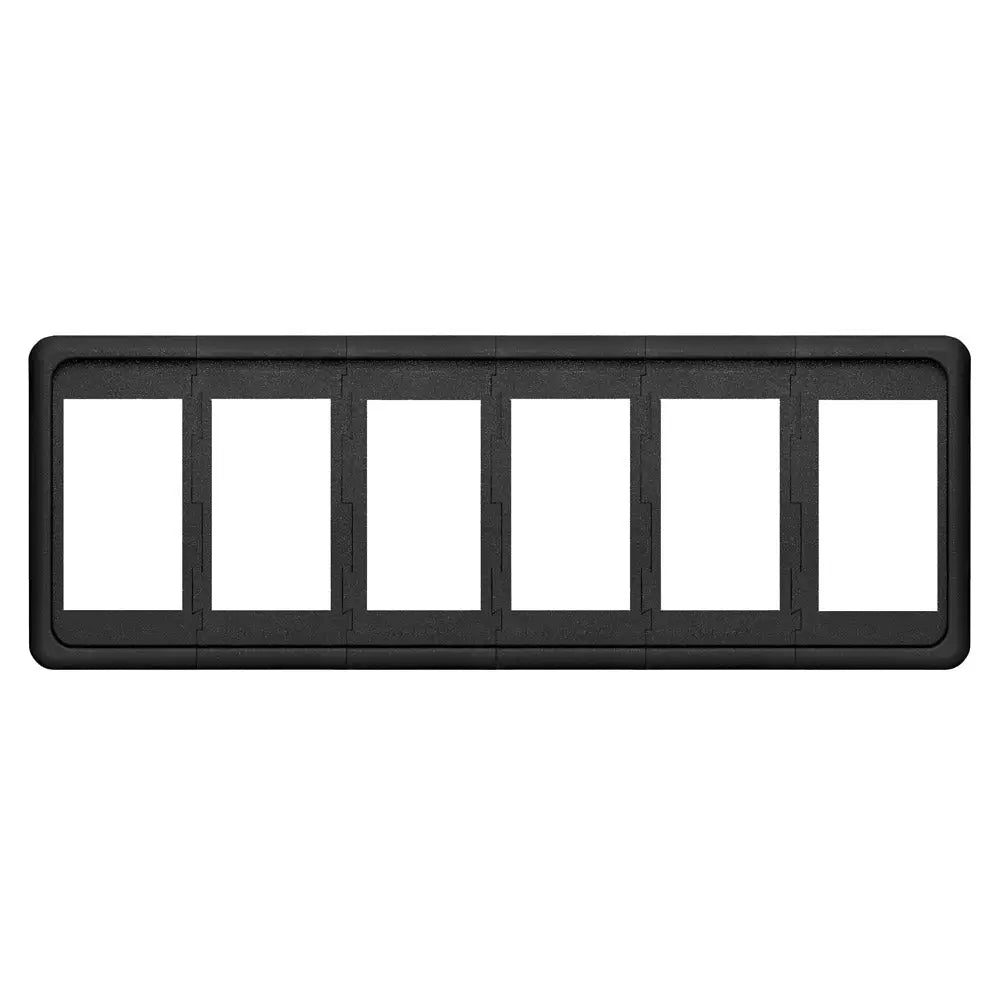

Switch mounting panels organize six Contura switches in a clean, modular layout for marine, RV, and automotive electrical installations. The Blue Sea Systems 8260 accommodates multiple panel thicknesses, helping create a secure, organized control panel.

This six-position panel provides six openings for Contura switches and supports modular assembly with other panel sections when a larger switch layout is needed. Molded-in clips accommodate panel thicknesses from 0.06" to 0.38", supporting a range of installation surfaces. Its compact rectangular format suits custom switch panels in boats, RVs, and vehicles. Switches are not included unless separately specified.

  • Six switch positions: Provides six openings for organizing Contura switches in one panel.
  • Modular construction: Allows panels to be assembled in groups of varying sizes for custom layouts.
  • Six panel-thickness settings: Fits panels measuring 0.06", 0.09", 0.13", 0.19", 0.25", or 0.38" thick.
  • Molded-in mounting clips: Secure the panel across the supported material thicknesses without requiring a separate clip system.
  • Marine and vehicle applications: Provides a structured mounting location for electrical controls in boats, RVs, and automotive projects.

The Blue Sea Systems 8260 is a six-position Contura switch mounting panel for building organized electrical control stations. Install it into a compatible cutout, then populate the six openings with Contura switches suited to the intended circuits and functions.

Its modular design makes it useful for custom layouts where one panel section isn’t enough. Additional compatible sections can be grouped to create a larger switch bank while maintaining a consistent appearance. The molded-in clips support six panel thicknesses, from 0.06" to 0.38", which helps accommodate different dashboard, console, and enclosure materials.

Use the panel for marine helm stations, RV control panels, vehicle accessory controls, and other low-voltage electrical installations that use compatible Contura switches. Confirm the switch model, cutout dimensions, wiring requirements, and available installation depth before assembly.

Specification Details
Brand Blue Sea Systems
Model 8260
Product type Contura switch mounting panel
Configuration 6 positions / 6 openings
Supported panel thicknesses 0.06" (1.57 mm), 0.09" (2.36 mm), 0.13" (3.17 mm), 0.19" (4.75 mm), 0.25" (6.35 mm), 0.38" (9.52 mm)
Panel dimensions 6.49" L × 2.30" W
Panel cutout 6.14" L × 1.90" W
  • What is the Blue Sea 8260?
    It is a six-position mounting panel for Blue Sea Systems Contura switches.
  • How many switches does it hold?
    The panel has six switch openings.
  • What panel thicknesses does it support?
    It supports six thicknesses: 0.06", 0.09", 0.13", 0.19", 0.25", and 0.38".
  • Can it be combined with other panels?
    Yes. Its modular design permits assembly with compatible panel sections in varying group sizes.
  • Are Contura switches included?
    No switches are identified as included with the mounting panel; select compatible switches separately.
