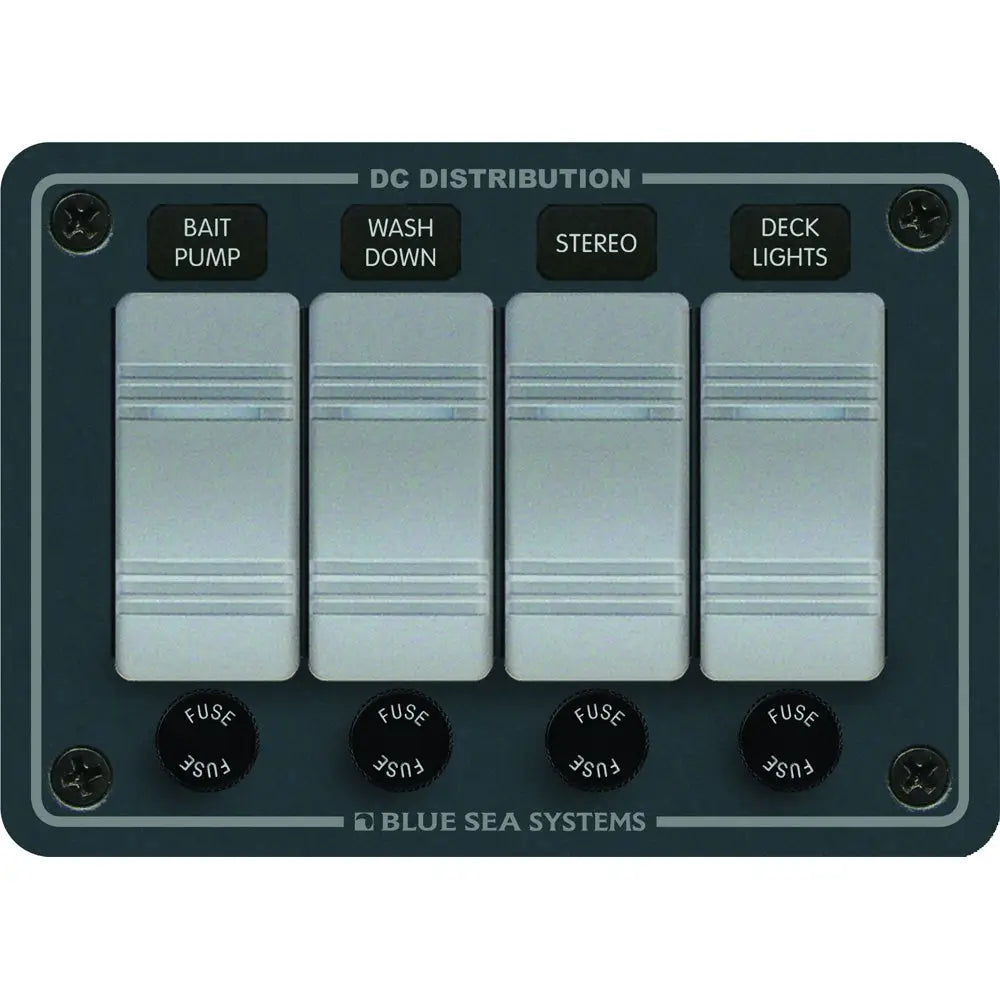

Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey [8262]

Description

8262 Waterproof Panel 4 Position - Slate Grey

Features:

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • Designed for flybridge and open cockpit applications
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install

Specifications:

  • Weatherproof: Water Resistant
  • Positions: 4
  • Nominal Voltage: 12v / 24v
  • Panel Cumulative Rating: 45A
  • Switch Rating: 20A @ 12v DC / 15A @ 24v DC
  • Height: 3.75"
  • Width: 5.25"
  • Depth: 3"

Included:

  • (4) 5021 Panel Mount AGC/MDL Fuse Holder
  • (1) 8214 Black 60 Label Set
  • (4) 8230 Contura Switch SPST Gray - Off-On

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Waterproof: Resistant
  • AC/DC: DC
  • Max Breaker Quantity: 4
  • Voltage: 12/24v
  • Box Dimensions: 5"H x 7"W x 9"L WT: 0.8 lbs
  • UPC: 632085082628

Owner's Manual (pdf)
Product form

8262 Waterproof Panel 4 Position - Slate GreyFeatures: Will withstand the water exposures normally encountered in above deck applications: salt... Read more

SKU: CWR-14579
Barcode: 632085082628

$166.67$118.95 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: Oct 03, 2023 23:59:00 -0400

Description

8262 Waterproof Panel 4 Position - Slate Grey

Features:

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • Designed for flybridge and open cockpit applications
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install

Specifications:

  • Weatherproof: Water Resistant
  • Positions: 4
  • Nominal Voltage: 12v / 24v
  • Panel Cumulative Rating: 45A
  • Switch Rating: 20A @ 12v DC / 15A @ 24v DC
  • Height: 3.75"
  • Width: 5.25"
  • Depth: 3"

Included:

  • (4) 5021 Panel Mount AGC/MDL Fuse Holder
  • (1) 8214 Black 60 Label Set
  • (4) 8230 Contura Switch SPST Gray - Off-On

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Waterproof: Resistant
  • AC/DC: DC
  • Max Breaker Quantity: 4
  • Voltage: 12/24v
  • Box Dimensions: 5"H x 7"W x 9"L WT: 0.8 lbs
  • UPC: 632085082628

Owner's Manual (pdf)
