Description

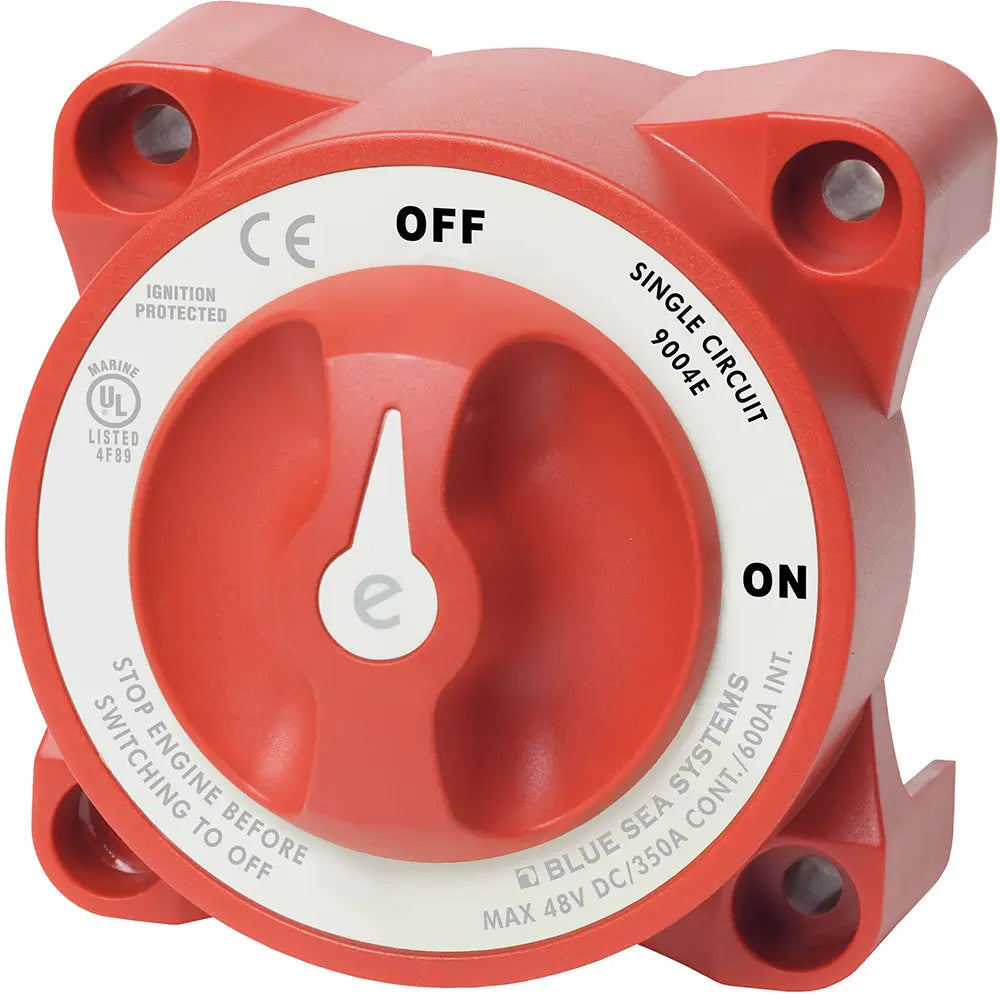

9004e e-Series Battery Switch Single Circuit ON/OFF with Alternator Field Disconnect
Features:
- CE Marked
- Ignition protected - Safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches

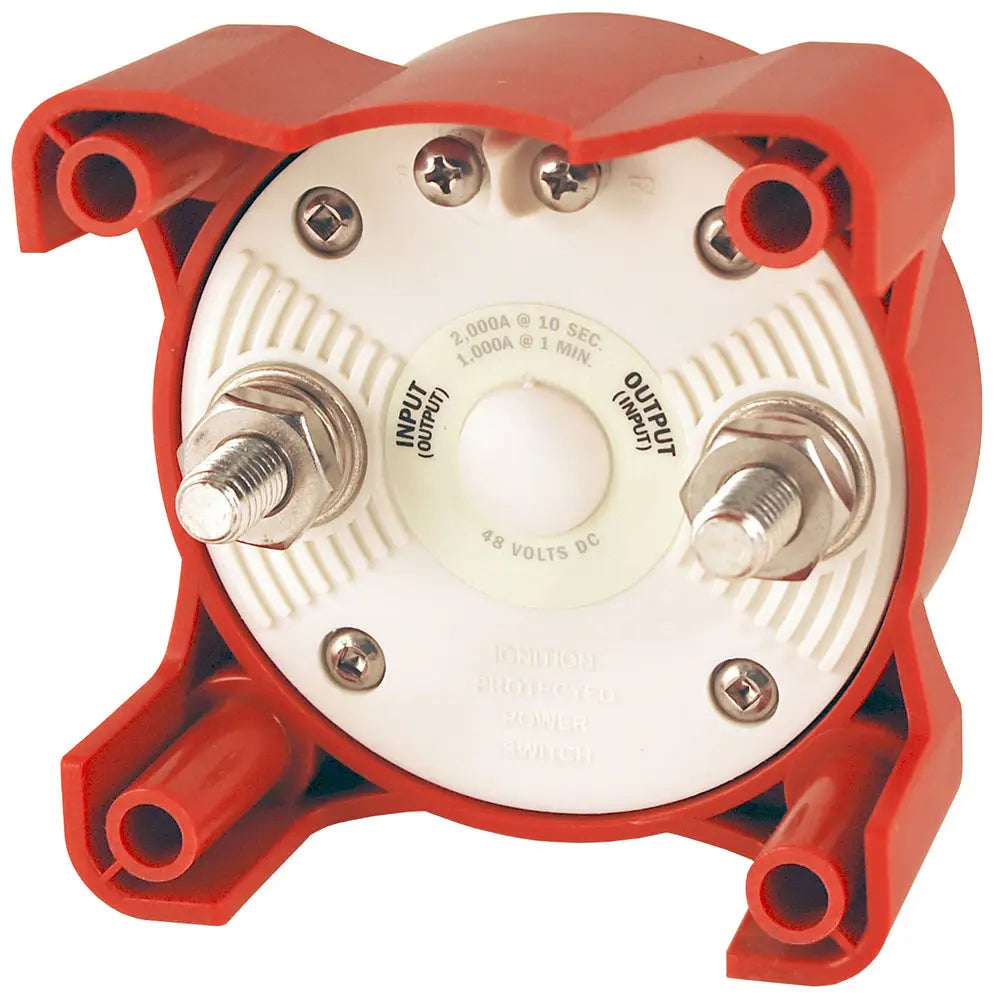

- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
- Includes AFD (Alternator Field Disconnect)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Positions: 1
- AFD: Yes
- Lockable: No
- Box Dimensions: 5"H x 7"W x 10"L WT: 0.92 lbs
- UPC: 632085900458
Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
