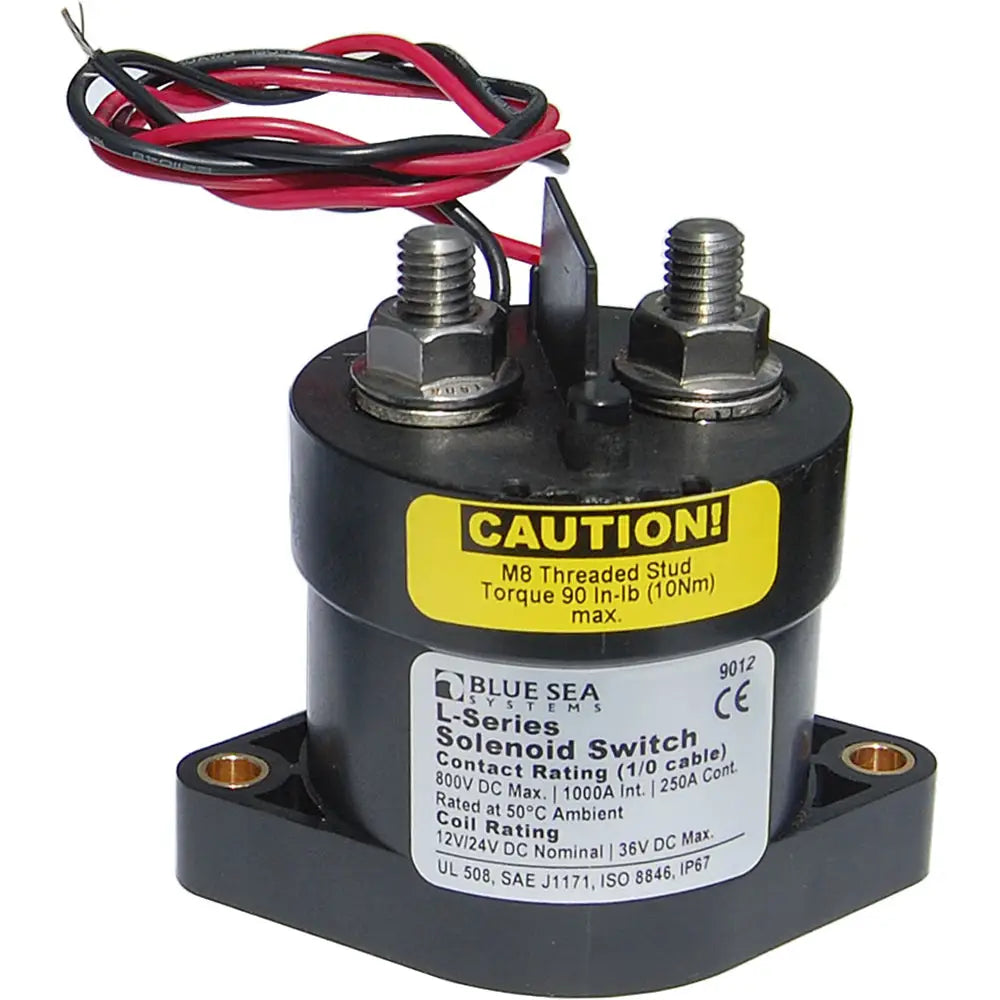

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012]

$268.89
$416.99
$268.89
Shipping calculated at checkout.

SKU: CWR-20952   UPC: 632085090128

[COUNT] shoppers are looking at this right now

    L Solenoid Switch - 12-24VDC - 250A

    Features:

    • Hermetically sealed contacts / vaporproof
    • Ignition protected - safe for installation aboard gasoline powered boats
    • Activated by an ON-OFF switch mounted anywhere
    • Integrated coil control minimizes heating and amperage draw
    • 450 Amp Class
    • Designed for 12 or 24 Volt systems
    • Ignition protected -- safe for installation aboard gasoline-powered boats
    • Activated by a low amperage ON-OFF switch mounted anywhere

    Specifications:

    • Control Circuit Connection: 20 AWG Tinned Wire
    • Nominal Voltage: 12V DC / 24V DC
    • Coil Function: Normally Open
    • Mounting: #10
    • Operating Amperage Current: 3.6A when changing state
    • Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
    • Terminal Stud Torque: 90 in-lb (10.17 Nm)
    • Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
    • Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
    • Cranking Rating 30 sec: 1,000A / 1000A DC
    • Contact Form: SPST-NO
    • Input Voltage: 9-36V DC
    • Inrush Rating: 0.25 sec (10 repeats): 2000A
    • Switching Cycles: 1,000,000
    • Terminal Stud: Serrated Flange Nut
    • Terminal Stud Length: 0.66" (16.76mm)
    • Terminal Stud Size: 5/16" (M8)
    • Weight: 1.00lb (0.45 kg)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Continuous Amperage: 450a
    • Box Dimensions: 3"H x 4"W x 7"L WT: 1 lbs
    • UPC: 632085090128

    Owner's Manual (pdf)
