Blue Sea 9354 AC Analog Voltmeter 0-250 Volts AC [9354]

Regular price
$44.79
Regular price
$55.99
Sale price
$44.79
Shipping calculated at checkout.

CWR-20960

  • Hurry, only 5 items left in stock!
Visa Mastercard American Express Discover PayPal Apple Pay Shop Pay
Free Shipping Orders over $149*
Secure Checkout SSL Encrypted
Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

925-222-LOTZ (5689)  ·  shop@lotzoutdoors.com

AC analog voltage monitoring for marine, RV, and vehicle electrical systems, with a 0–250V AC range and clear 5-volt dial increments for quick visual checks.

This analog voltmeter measures AC voltage through a simple two-wire connection to AC hot and neutral. Its 2-3/4-inch face provides an easy-to-read scale marked in 5-volt increments. The meter senses and powers from the same AC connection, making it practical for panel-mounted monitoring in boats, RVs, and other compatible electrical systems.

  • 0–250V AC measurement range: Monitors a broad AC voltage range for compatible marine and RV electrical panels.
  • 5-volt dial increments: Provides clear, direct visual readings without requiring a digital display.
  • Simple two-wire connection: Connects to AC hot and neutral for straightforward installation.
  • Self-powered sensing design: The meter senses and powers from the same AC connection, avoiding a separate meter power circuit.
  • 2-3/4-inch face: Offers a readable analog display for at-a-glance panel monitoring.
  • Analog operation: Supports continuous visual observation of AC voltage in marine and recreational-vehicle applications.

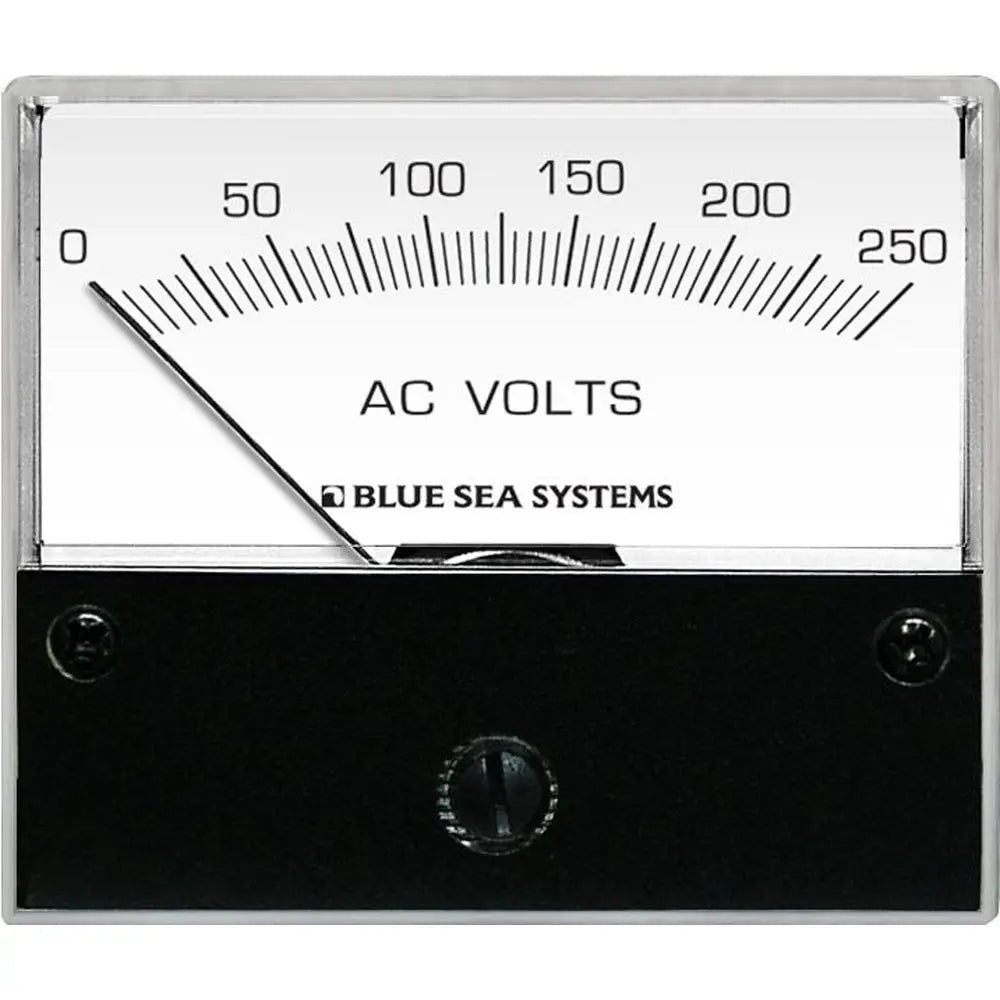

The Blue Sea Systems 9354 is an AC analog voltmeter intended for electrical monitoring panels where a direct, continuously visible voltage indication is useful. It reads from 0 to 250 volts AC and displays the measurement on an analog scale marked in 5-volt increments.
Installation uses two connections: the AC hot lead connects to the terminal marked “+,” while the neutral lead connects to the terminal marked “−.” Because the meter senses and powers from this same connection, no separate supply wiring is required for the meter. The 2-3/4-inch face suits standard-size monitoring layouts used in boats, RVs, and other vehicle electrical systems.
The meter has a 1 mA current draw at full scale and can be surface-mounted or panel-mounted according to the installation layout. Consult the owner’s manual for mounting dimensions, wiring instructions, and safety procedures. California Proposition 65 warning applies.
Brand Blue Sea Systems
Model 9354
Product type AC analog voltmeter
Measurement range 0–250V AC
Face size 2-3/4 inches
Dial increments 5 volts
Connection Two-wire AC hot and neutral
Current draw 1 mA at full scale
Mounting Surface mount or panel mount
SKU Not specified
UPC Not specified
  • What does this voltmeter measure?
    It measures AC voltage from 0 to 250 volts.
  • How is the Blue Sea 9354 connected?
    It uses a simple two-wire connection to AC hot and neutral. Follow the owner’s manual and applicable electrical safety requirements during installation.
  • Does the meter need a separate power connection?
    No. The meter senses and powers from the same AC connection.
  • Where can it be used?
    It is suited to compatible marine, RV, auto, and vehicle electrical monitoring panels.
  • What mounting options are available?
    The meter supports surface mounting or panel mounting; consult the owner’s manual for installation dimensions and procedures.
