• Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 5 Amps [2130]
1 1

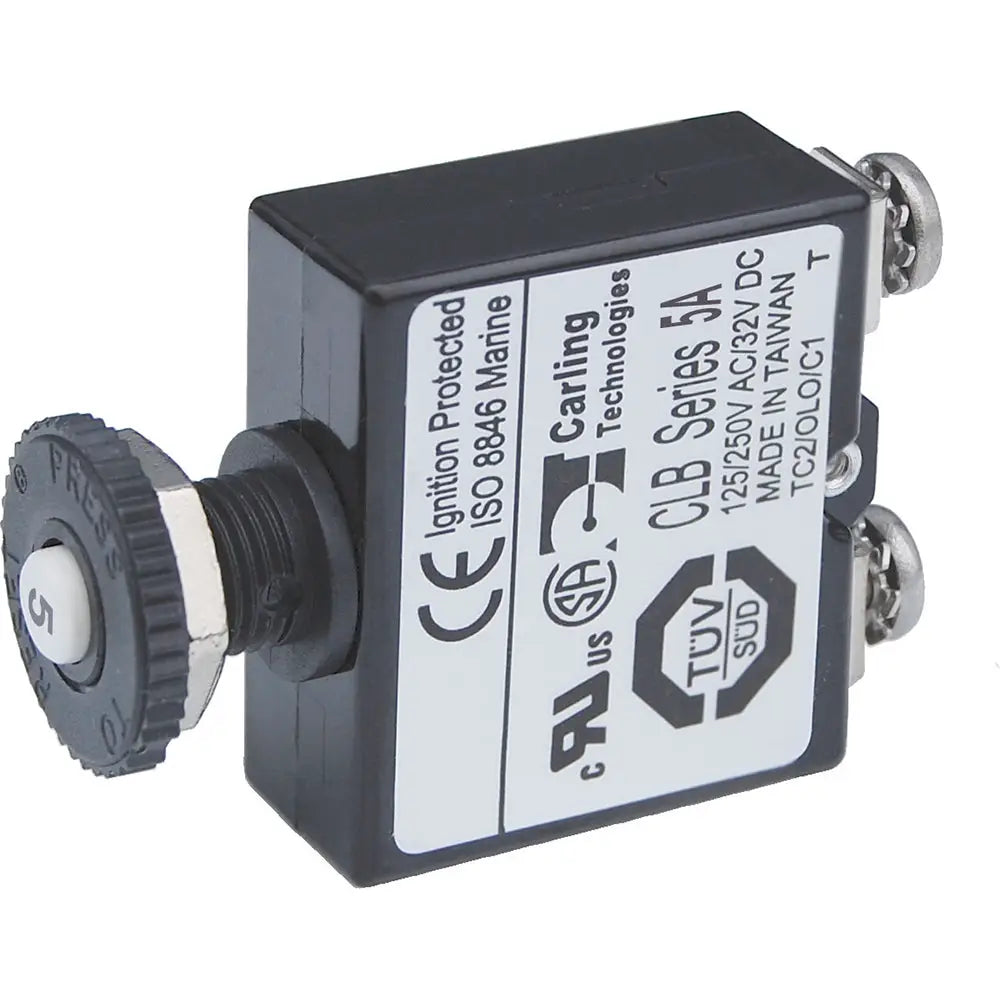

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 5 Amps [2130]

$8.89
$11.99
$8.89
Shipping calculated at checkout.

SKU: CWR-62200   UPC: 632085021306

[COUNT] shoppers are looking at this right now

    Push Button Reset Only Screw Terminal Circuit Breaker - 5 Amps

    Features:

    • Branch circuit breakers (can also be used for 24-hour circuit protection)
    • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
    • Compact design enables high density circuit protection configurations
    • Push-to-reset operation
    • "Trip Free" design cannot be held "ON" during fault current condition
    • Ignition protected - Safe for installation aboard gasoline powered boats
    • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking


    Specifications:
    • Amperage: 5A
    • Maximum Voltage: 32V DC
    • Mounting: Panel Mount 3/8-27 UNS
    • Circuit Breaker Type: Thermal trip, manual push-button reset only
    • Terminal Type: #8 Screw
    • Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
    • Minimum Operating Temperature: -10° C
    • Maximum Operating Temperature: t60° C
    • Screw Terminal Torque: 6 in-lb (0.68 Nm)
    • Weight: 0.09lb (0.04 kg)

      WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

      Specifications:

      • Amperage: 5a
      • Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
      • UPC: 632085021306
