BPS Marine PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC

PRO-4 4-Transducer Ultrasonic Antifouling System - 24VDC

The PRO-4 is a four-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 60ft in length or can be combined with additional systems for larger vessels. The PRO-4 can also be tasked with protecting drives and rudders.

The PRO-4 Package Includes:

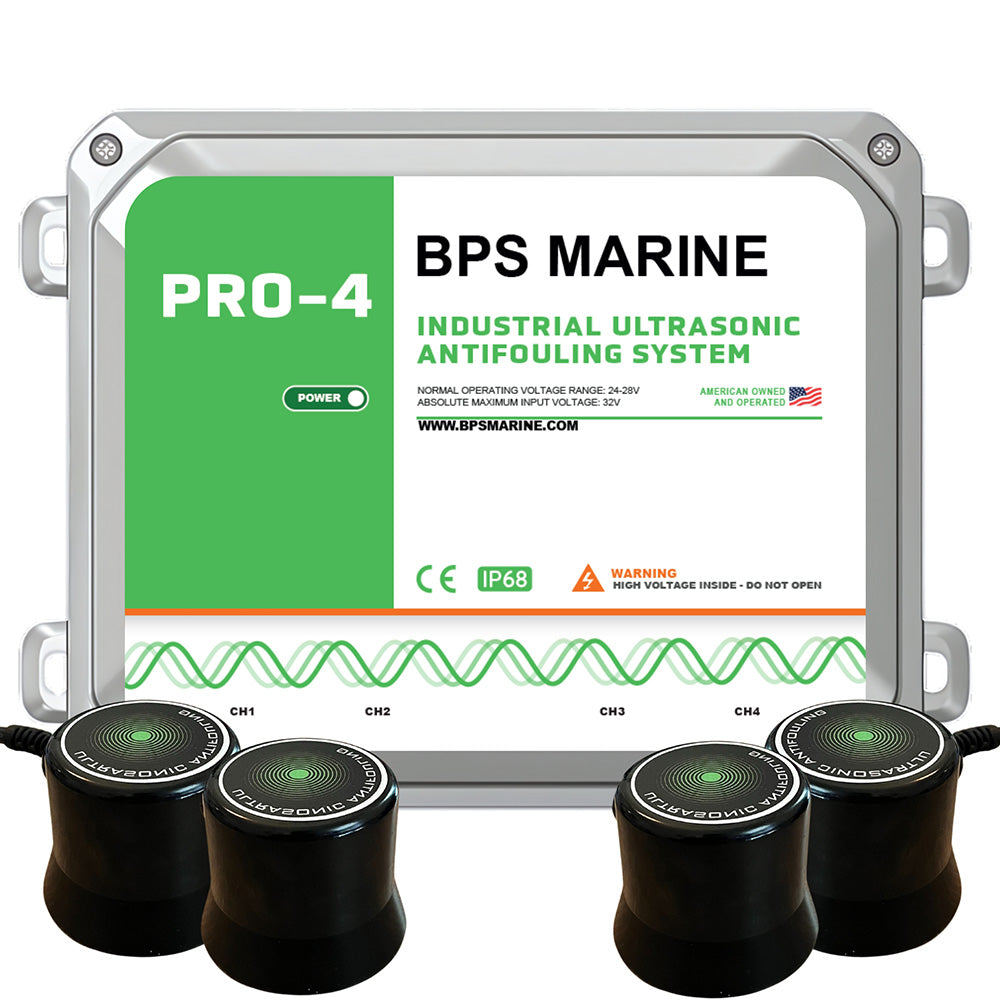

• 1x PRO-4 Control Module with Integrated Power Cable


• 4x Submersible Ultrasonic Transducers with 15ft of Cable


• 2x Additional 15ft Extension Cables


• 1x Epoxy Kit


• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 24V DC


• Average Power Draw: 1Ah


• Transducer Strength: 120W


• Cable Length: 15ft per transducer


• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.


• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.


• Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.


• Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.


• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.


• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.


• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.


• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.


• Diver Savings: Reduces the need for monthly hull cleaning services.


• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.


• Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.
