• Egis MIDI 5x Fuse Block w/Sealed Cover [3908]
1 1

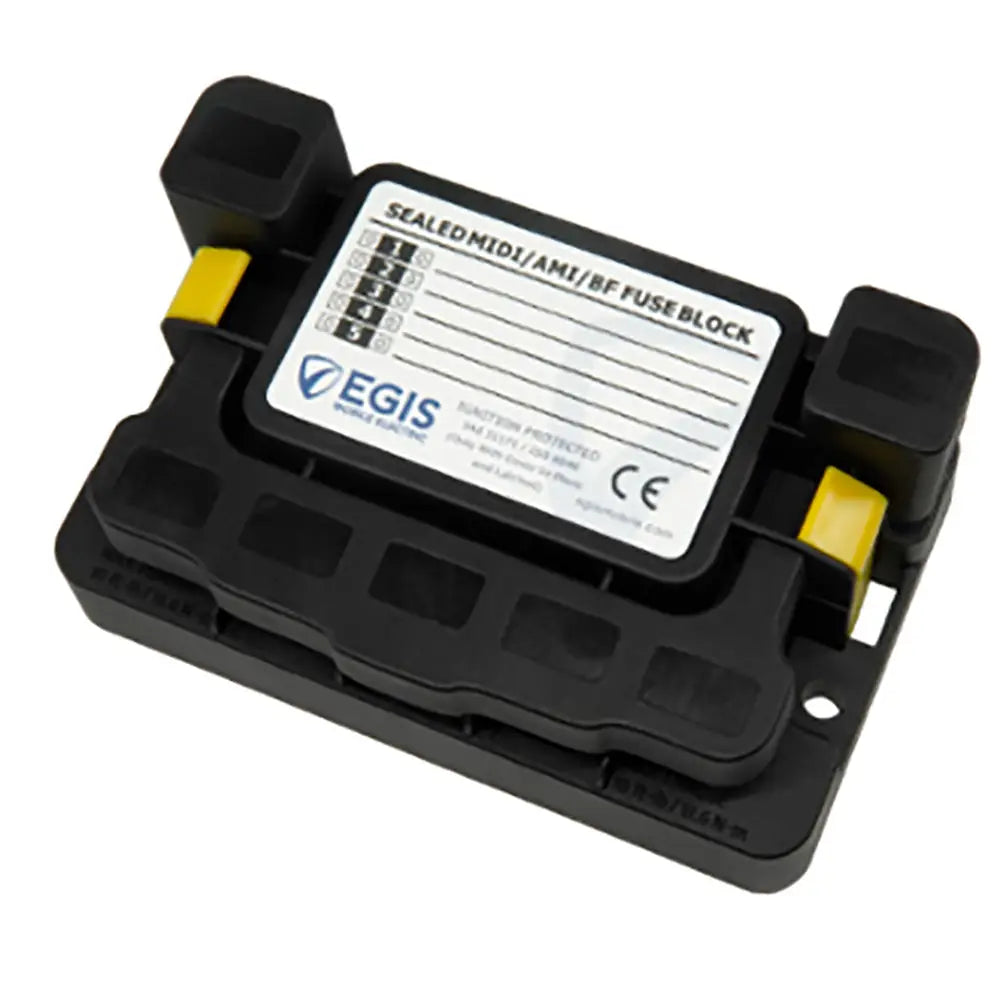

Egis MIDI 5x Fuse Block w/Sealed Cover [3908]

$66.89
$83.90
$66.89
Shipping calculated at checkout.

SKU: CWR-107422   UPC: 850067590064

[COUNT] shoppers are looking at this right now
  • Hurry, only 20 items left in stock!

MIDI 5x Fuse Block with Sealed Cover

  • Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
  • Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
  • Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions

Features:

  • Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
  • Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
  • Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.

Specifications:

  • Total Continuous Current Amps: 500
  • Max MIDI?AMI Fuse Value (Amps): 200
  • Ingress Protection Rating: IP67
  • Ignition Protected (SEA J1171)? Yes
  • Output Stud Size: M6
  • Input Stud Size: M8

Specifications:

  • Fuse Type: MIDI/AMI
  • Type: Fuse Blocks
  • Box Dimensions: 3"H x 4"W x 8"L WT: 1.25 lbs
  • UPC: 850067590064

Brochure (pdf)
