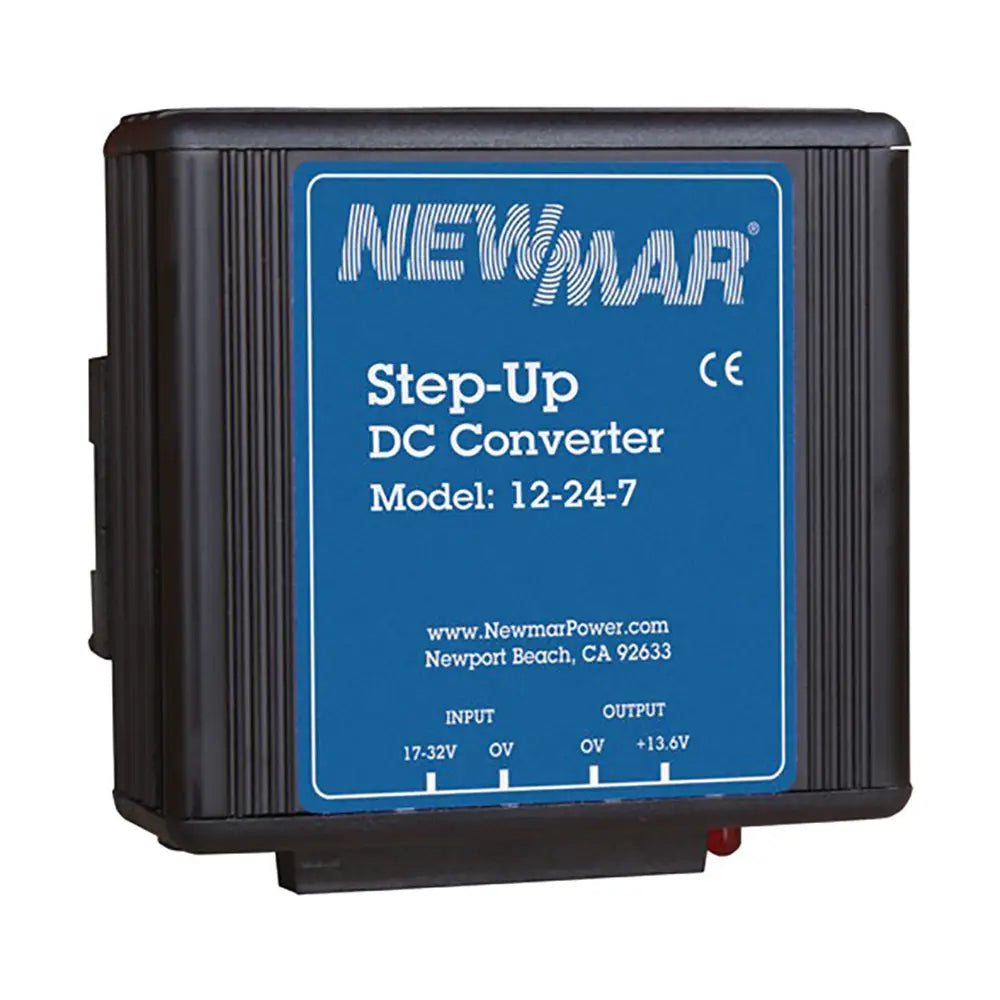

Furuno 12V-24V 7 Amp Converter f/DRS12AX X-Class Open Array - Newmar [NEW-12V-24V-7A]

$828.00
$828.00
$828.00
Shipping calculated at checkout.

SKU: CWR-65923   UPC: 611679368058

[COUNT] shoppers are looking at this right now

    12V-24V 7 Amp Converter for DRS12AX X-Class Open Array - Newmar

    Newmar 12-24-7 Step Up Dc-Dc Converter 7amp Conitnuos

    These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:

    In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.

    Standard, Non-Isolated Series

    • Intended for use on negative ground systems
    • 10 -15 VDC input range
    • 7 Amp output
    • Current limited, voltage spike suppression, automatic thermal shutdown and recovery

    Specifications:

    • Input: 10 - 15V DC
    • Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.
    • Ripple: <100mV P-P
    • Regulation: +/- 5% Line/Load
    • Duty Cycle:
    • Intermittent: 2 minutes, 20% duty
    • Continuous: 24 hours, 100% duty
    • Operating Temp: -25º - 30º C, derate linearly from 30 to 0% @ 80º C

    Mechanical

    • Efficiency: 93% - Typical.
    • Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
    • Front panel terminal block
    • Output indicator: Green LED
