Garmin ECHOMAP UHD 73cv US LakeVu g3 w/GT24UHD-TM Transducer *Remanufactured

ECHOMAP UHD 73cv US LakeV g3 with GT24UHD-TM Transducer *Remanufactured

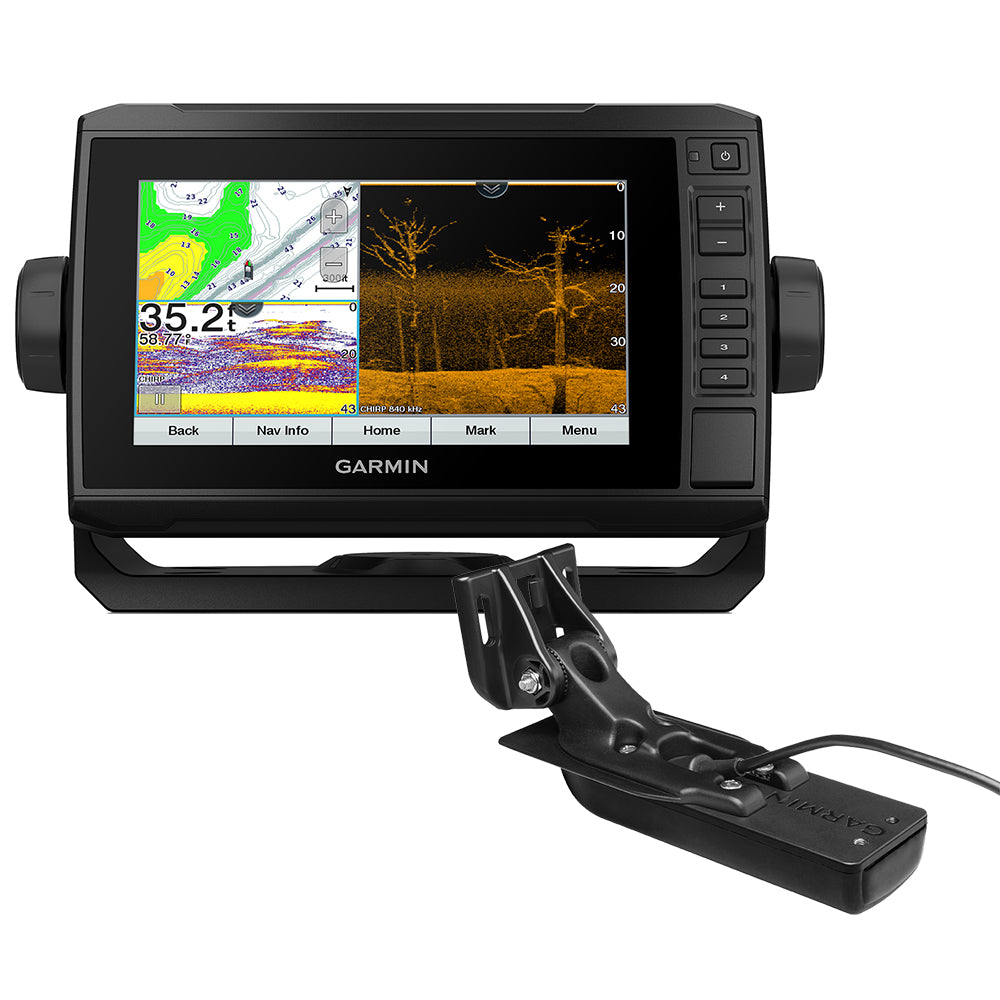

Find more fish using the ECHOMAP UHD 73cv combo with a bright, sunlight-readable 7 touchscreen with keyed assist. The included GT24 transducer provides Ultra High-Definition ClearV scanning sonar, so you get a crystal-clear image of what is below your boat, and Garmin high wide CHIRP traditional sonar delivers remarkable target separation. Preloaded LakeV g3 inland maps with integrated Navionics data cover more than 17,000 lakes with up to 1 contours. It features a quick-release bail mount, making it easy to remove and take with you. NMEA 2000 and NMEA 0183 network support provide you with engine data, sensor connection, autopilot integration, FUSION-Link audio system, and more. ECHOMAP UHD 73cv is even compatible with the Force trolling motor for full control of the motor from the screen, plus the ability to route to waypoints, follow tracks, and more.

Features:

• Bright, sunlight-readable 7 touchscreen with keyed assist


• Includes GT24 transducer for Ultra High-Definition ClearV scanning sonar and Garmin high wide CHIRP traditional sonar


• Preloaded LakeV g3 inland maps with integrated Navionics data cover more than 17,000 lakes with up to 1 contours


• Supports Panoptix all-seeing sonar, including Panoptix LiveScope sonar


• Sonar sharing capabilities with other ECHOMAP Plus, ECHOMAP UHD, and ECHOMAP Ultra units


• NMEA 2000 and NMEA 0183 network support for autopilot, FUSION-Link audio system, and engine data


• Quick-release bail mount for fast and easy mobility


• Compatible with Force trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks, and more

Included Transducer

This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearV scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

Sonar Support

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real-time.

Preloaded Mapping

Experience unparalleled coverage and detail with preloaded LakeV g3 inland maps featuring integrated Navionics data that covers more than 17,000 lakes with up to 1 contours.

Quickdraw Contours

Create personalized fishing maps on-screen with 1 contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.

NMEA 2000 NMEA0183 Networks

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS, and more from one screen.

ActiveCaptain App

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications¹, software updates, Garmin Quickdraw Community data, and more.

Network Capable

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information such as sonar, user data, and charts among them (7 and 9 models only).

Force Trolling Motor Capability

Take control of the most powerful and efficient trolling motor available², route it to waypoints, follow tracks, and more from the screen of your chartplotter.

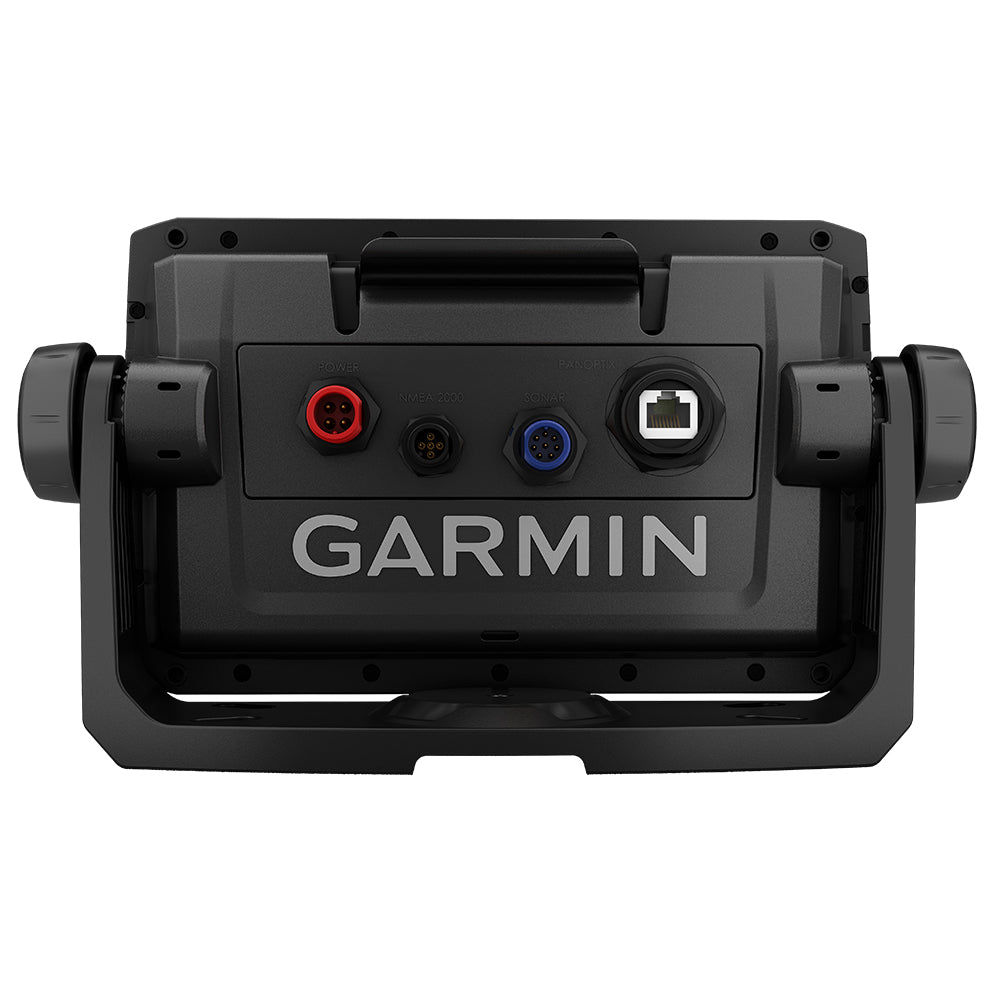

Connections:

• Garmin Marine Network Ports: 1


• NMEA 2000 Compatible: Yes


• Transducer Pin Numbers: 12


• NMEA 0183 Input Ports: 1


• NMEA 0183 Output Ports: 1


• Video Input Ports: None


• Video Output Ports: None


• Wireless Connectivity: Yes

In The Box:

• ECHOMAP UHD 73cv with BlueChart g3 for U.S.


• GT24UHD-TM transducer


• Power/data cable


• Tilt mount with quick-release cradle


• Flush mount


• Protective cover


• Hardware


• Documentation

¹ When paired with a compatible smartphone

² In compliance with ISO standard 13342

Wi-Fi is a registered trademark of the Wi-Fi Alliance.
