Description

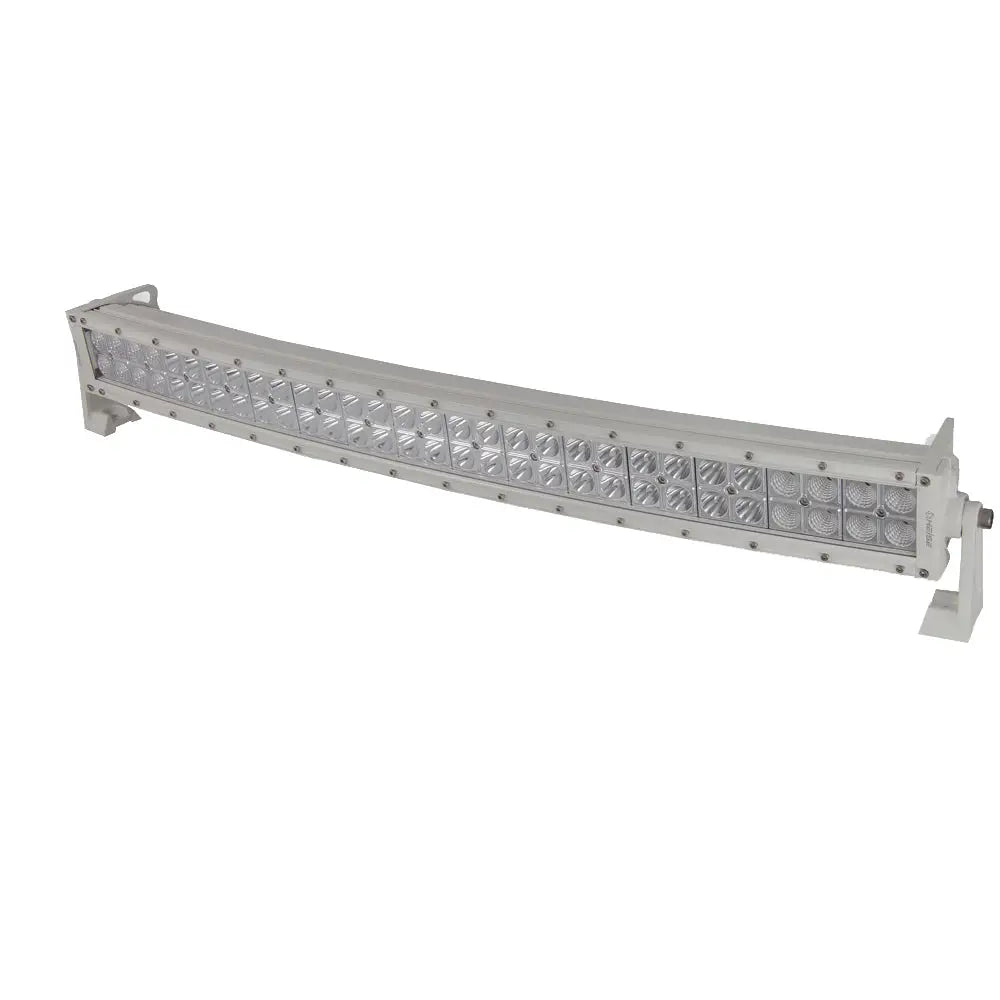

Dual Row Marine LED Curved Light Bar - 30"
Specs
- Input Voltage: 10-30V DC
- Wattage: 180 W
- (60-3W CREE LEDs)
- Raw Lumens: 14400
- LUX at 10M: 625
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
- Housing Material: Die-Cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore®
- Lens Material: PC
- Mounting Bracket: Die-Cast Aluminum
- Hole Dimensions:
- Brackets Turned Inward – 31 inches
- Brackets Turned Outward – 33.5 inches
- Mounting Bolt Drill – 25 inches
- Height of Light Bar Itself: 3 inches
- Depth of Light Bar Itself: 3.5 inches
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
Operation
- Operating Temperature: – 40 degrees C to +60 degrees C
- Current Consumption: 9.5 Amps at 13.8 Volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Beam Pattern: Spot-Flood Combo
- Length (Inches): 30"
- Housing: White
- Voltage - Input Range (Volts): 10-30v
- Box Dimensions: 6"H x 9"W x 35"L WT: 10.8 lbs
- UPC: 086429348275
Quick Guide (pdf)
