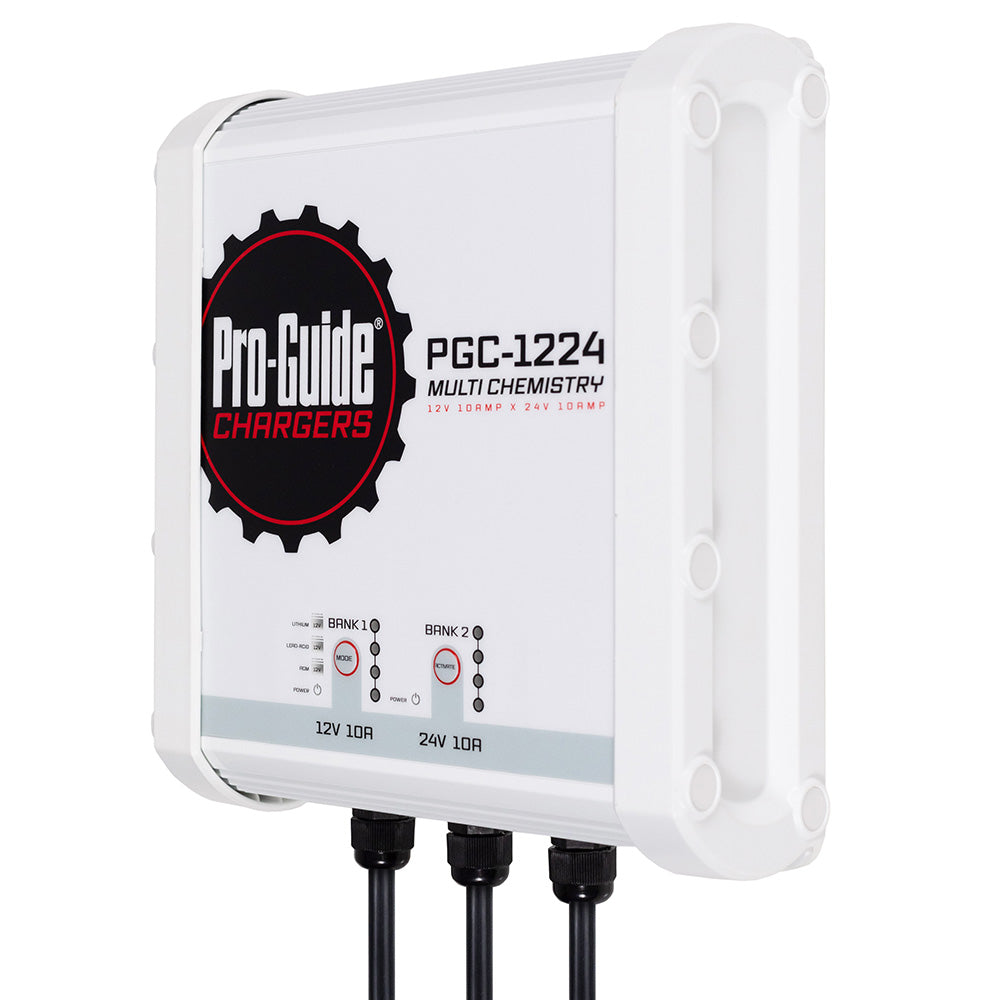

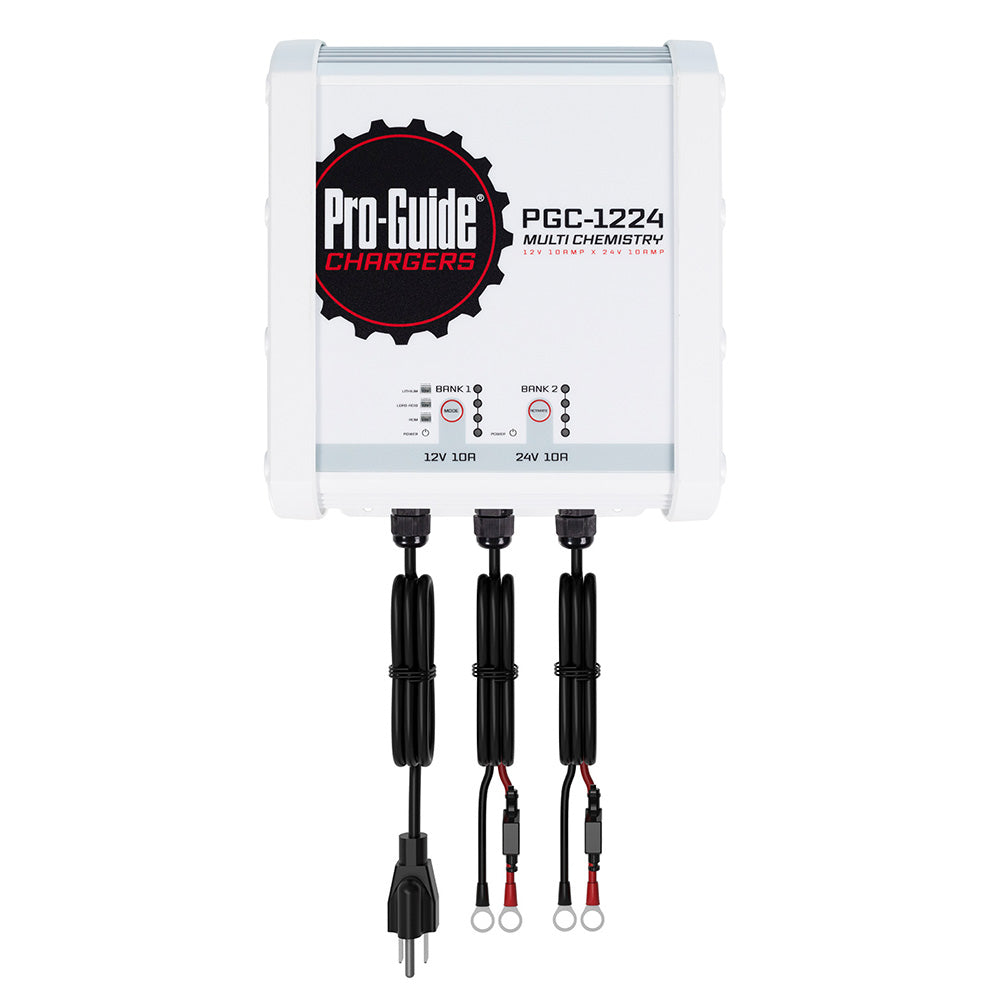

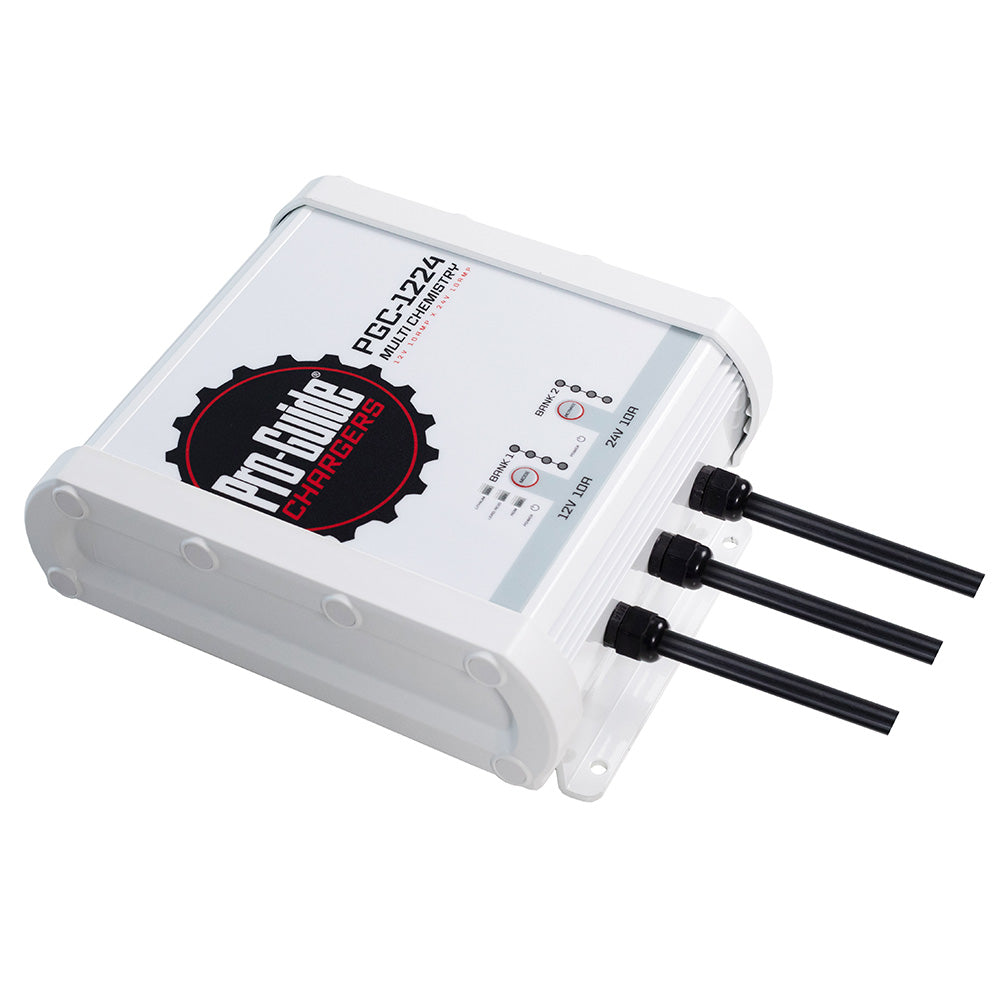

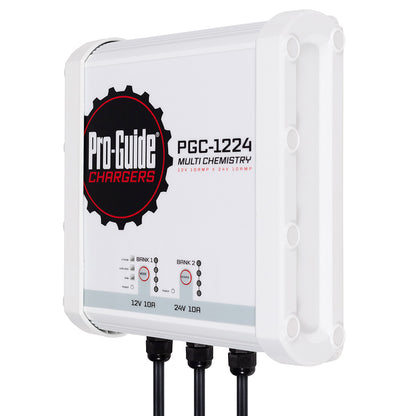

Pro-Guide 2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp

2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp

The Pro-Guide PGC-1224 is a 12V Lead Acid / AGM / Lithium 24V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 24V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 24V Lithium
• Output Voltage: DC 12V x 1 DC 24V x 1
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 28.8-29.2 for 24V Lithium Battery
• Output Current: 10A x2
• Length: 8.19
• Width: 9.96
• Height: 3.86
• Weight: 14.3 lbs
• IP Rating: 68
