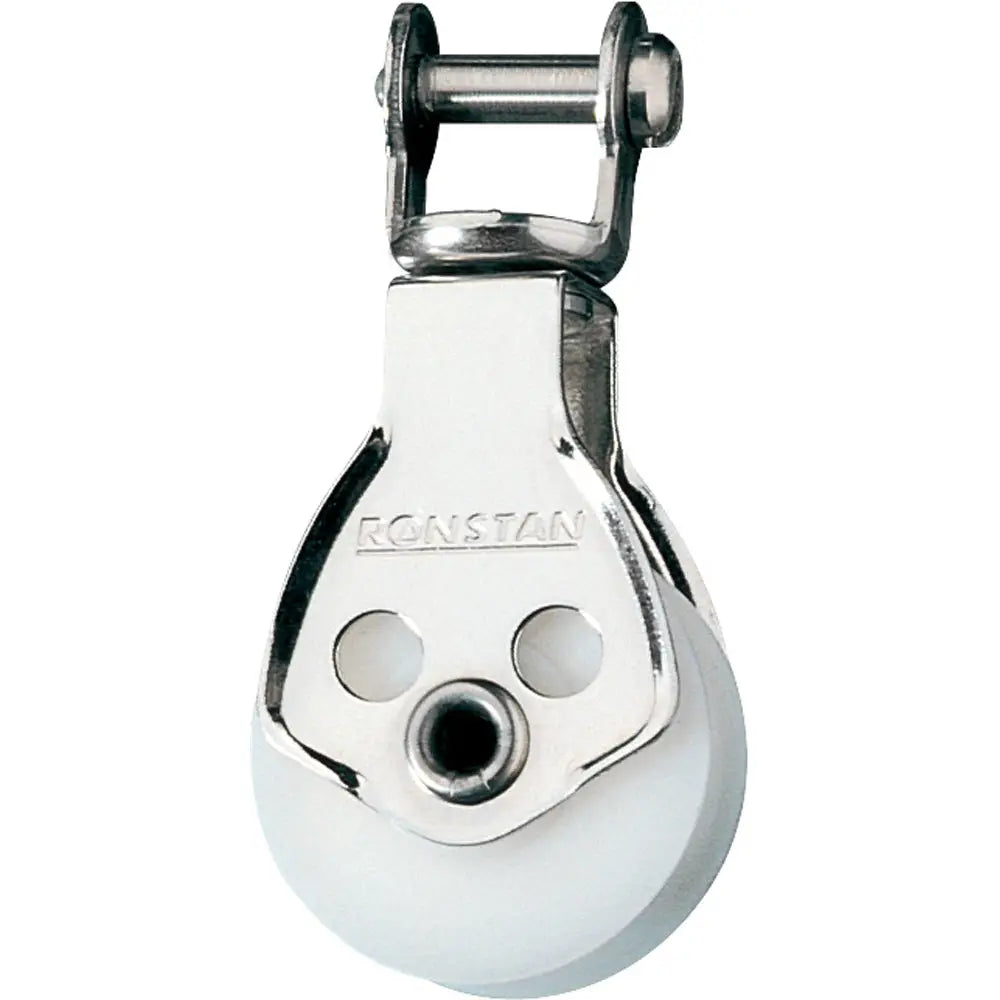

Ronstan Series 25 Utility Block - Single - Swivel Shackle Head [RF573]

Description

Series 25 Utility Block™ - Single - Swivel Shackle Head


Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.

Features:

  • Lightweight durable construction
  • Economical
  • Maintenance free


Applications:
  • Vang, cunningham and trapeze retriever systems on dinghies
  • Leech line tackles, bunk adjusters, etc on larger boats


Materials:
  • U.V. stabilized acetal sheaves
  • Grade 316 Stainless Steel cheeks


Specifications:
Sheave Ø:t25mm(1")
Max. Rope Ø: 6mm(1/4")
Pin Ø: 4mm(5/32")
M.W.L.:t150kg(330lbs)
B. L.:t300kg(660lbs)
Weight:t20g(0.7oz)
Product form

Series 25 Utility Block™ - Single - Swivel Shackle HeadStainless steel cheeks and Acetal sheaves ensure a long service life... Read more

SKU: CWR-55259
Barcode: 9316800003877

$23.14$16.95 Excl. tax

  • Tell a unique detail about this product
  • Shipped today? Order within: Oct 13, 2024 16:00:00 -0400

Description

Series 25 Utility Block™ - Single - Swivel Shackle Head


Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.

Features:

  • Lightweight durable construction
  • Economical
  • Maintenance free


Applications:
  • Vang, cunningham and trapeze retriever systems on dinghies
  • Leech line tackles, bunk adjusters, etc on larger boats


Materials:
  • U.V. stabilized acetal sheaves
  • Grade 316 Stainless Steel cheeks


Specifications:
Sheave Ø:t25mm(1")
Max. Rope Ø: 6mm(1/4")
Pin Ø: 4mm(5/32")
M.W.L.:t150kg(330lbs)
B. L.:t300kg(660lbs)
Weight:t20g(0.7oz)
