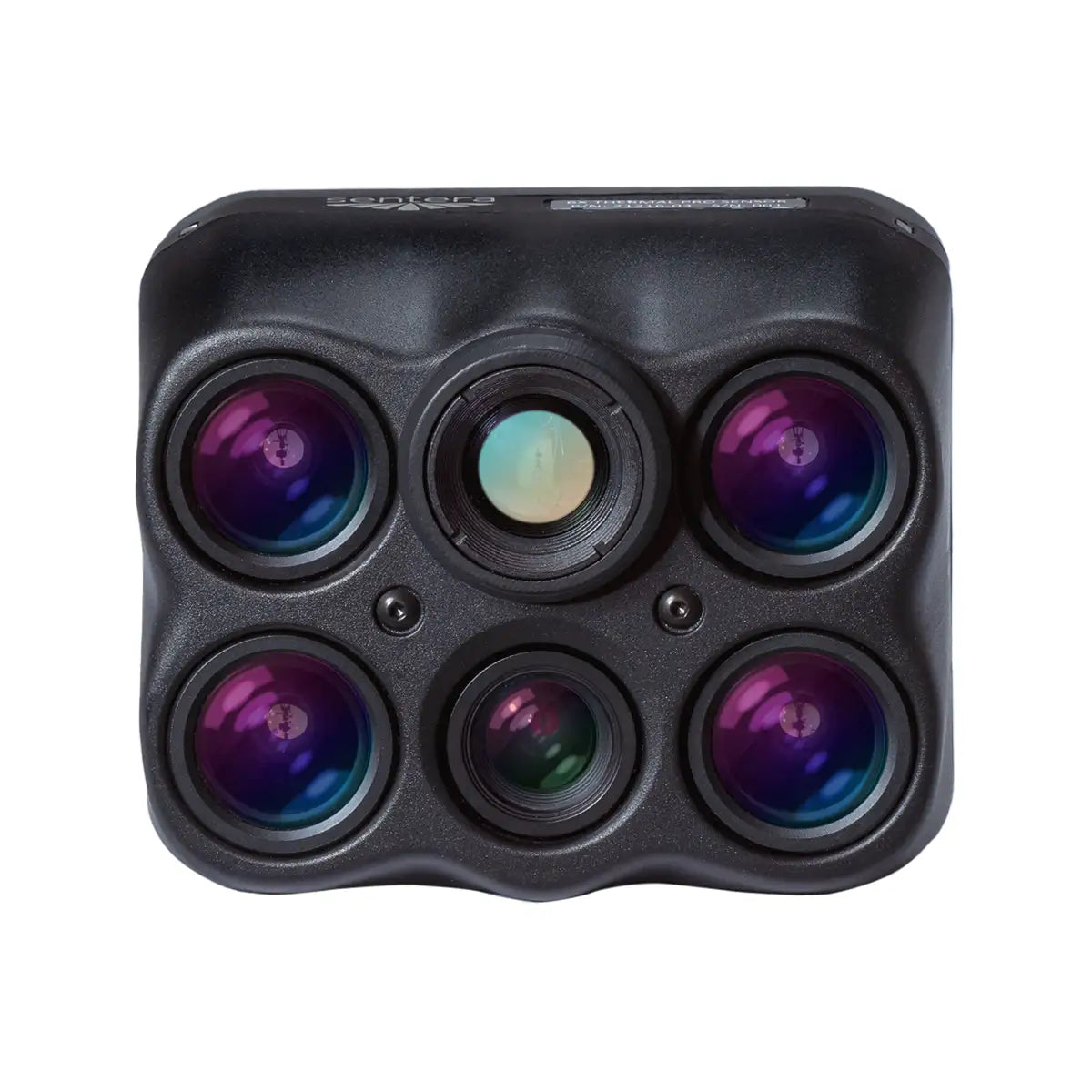

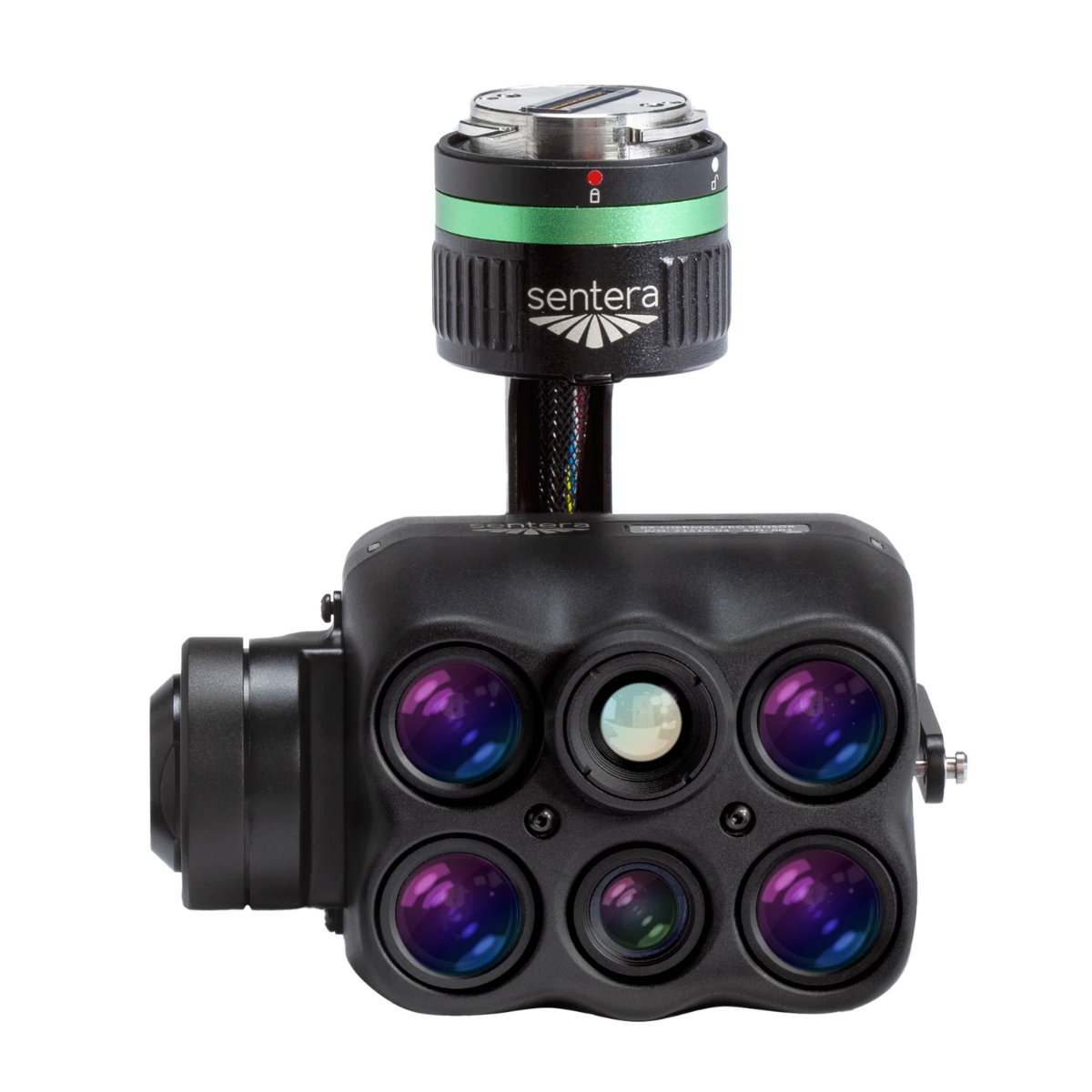

Sentera 6X Thermal Pro Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400

Sentera 6X Thermal Pro Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400: Multispectral, RGB, and radiometric thermal intelligence in one Skyport payload

The Sentera 6X Thermal Pro Sensor Kit is an advanced aerial sensing payload designed for DJI Enterprise aircraft requiring high-fidelity multispectral, RGB, and radiometric thermal data. Built around four global-shutter multispectral sensors, a 20-megapixel RGB camera, and a FLIR Boson 640R radiometric thermal imager, the 6X Thermal Pro enables comprehensive environmental, agricultural, and inspection analytics from a single flight. Designed for DJI Skyport V2 integration, the payload delivers synchronized, geotagged datasets optimized for precision analysis and repeatable enterprise workflows.

Multispectral, RGB, and thermal sensing capabilities

• Four 3.2 MP global-shutter multispectral sensors capture synchronized spectral imagery
• Spectral bands include green, red, red edge, and near infrared
• 20 MP RGB camera provides high-resolution visual mapping data
• FLIR Boson 640R radiometric thermal sensor captures calibrated temperature data
• Shutterless thermal design enables continuous temperature measurement
• 5 fps capture rate supports efficient data collection across large areas
• Incident light sensor enables reflectance-corrected multispectral outputs
• Radiometric thermal imagery exported as 16-bit TIFF files

Precision data capture for advanced analytics

The 6X Thermal Pro is engineered to deliver radiometrically accurate, analysis-ready datasets straight from the aircraft. Global-shutter multispectral sensors eliminate motion distortion, while synchronized capture across RGB, multispectral, and thermal channels ensures spatial alignment between datasets.

Integrated PPS support enables precise time-of-capture synchronization, supporting RTK-aligned workflows. Multispectral imagery is recorded in 12-bit TIFF format, RGB in 8-bit JPEG, and thermal data in 16-bit radiometric TIFF, enabling advanced post-processing for vegetation indices, thermal analysis, and decision-support modeling.

Operational efficiency on DJI Enterprise platforms

Designed for seamless integration with DJI Enterprise aircraft, the 6X Thermal Pro connects directly via the DJI Skyport V2 gimbal, providing plug-and-play operation on supported platforms. Internal 512 GB SSD storage supports high-volume data capture without external media management.

Typical power consumption of 15 W preserves aircraft endurance, while synchronized capture across all sensors reduces the need for multiple flights. Together, these features allow teams to collect multispectral, RGB, and thermal datasets in a single mission, minimizing operational time while maximizing data value.

Platform compatibility and system integration

• Compatible with DJI Matrice 300 RTK aircraft
• Compatible with DJI Matrice 350 RTK aircraft
• Compatible with DJI Matrice 400 RTK aircraft
• Direct integration via DJI Skyport V2 gimbal interface
• Plug-and-play Skyport connection on Matrice 400 platforms
• Supports RTK-aligned workflows with PPS synchronization

Professional application scenarios

• Precision agriculture: assess crop health, stress, and nutrient variability
• Thermal analysis: detect heat signatures and temperature anomalies
• Water stress monitoring: identify irrigation inefficiencies and evaporation patterns
• Environmental monitoring: evaluate vegetation and land-use conditions
• Forest fire detection: identify hotspots and active flame regions
• Soil moisture assessment: support land and resource management decisions
• Infrastructure inspection: combine RGB and thermal perspectives
• Research operations: generate synchronized datasets for scientific analysis

Designed for enterprise integration

The Sentera 6X Thermal Pro is built for scalable enterprise deployment, combining standardized DJI Skyport integration with synchronized multisensor capture. Its calibrated outputs, onboard storage, and robust interface support repeatable workflows across fleets and missions. When paired with DJI Enterprise aircraft, the payload delivers consistent, high-accuracy data for organizations requiring reliable analytics at scale.

The Sentera 6X Thermal Pro Sensor Kit delivers comprehensive aerial intelligence by unifying multispectral, RGB, and thermal sensing in a single Skyport payload. It is purpose-built for teams that demand accuracy, efficiency, and actionable data from every flight.

Available now from DSLRPros. Equip your DJI Enterprise aircraft with a proven multisensor analytics platform.
