Shakespeare 399-1M 9'6" VHF Antenna [399-1M]

Description

Style 399-1M VHF 6dB

Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation

The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1"-14 thread

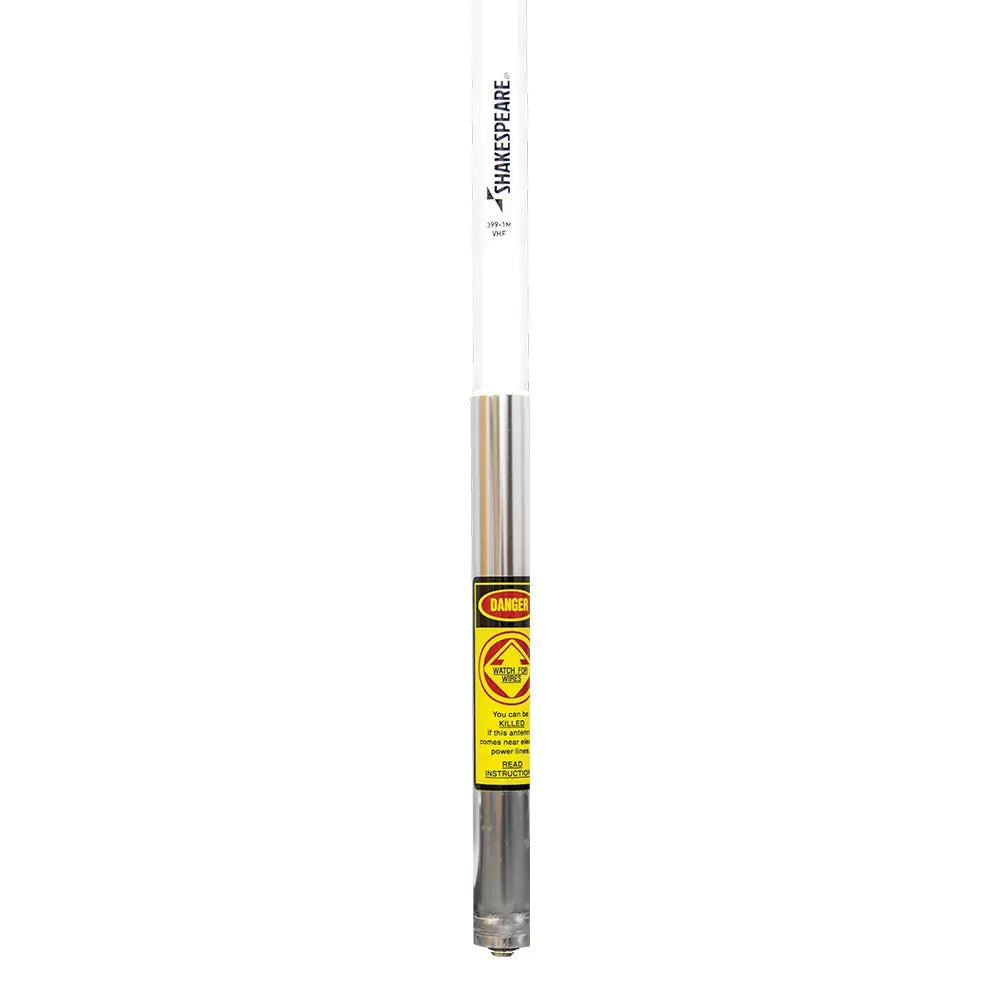

  • Aluminum sleeve for mast mounting

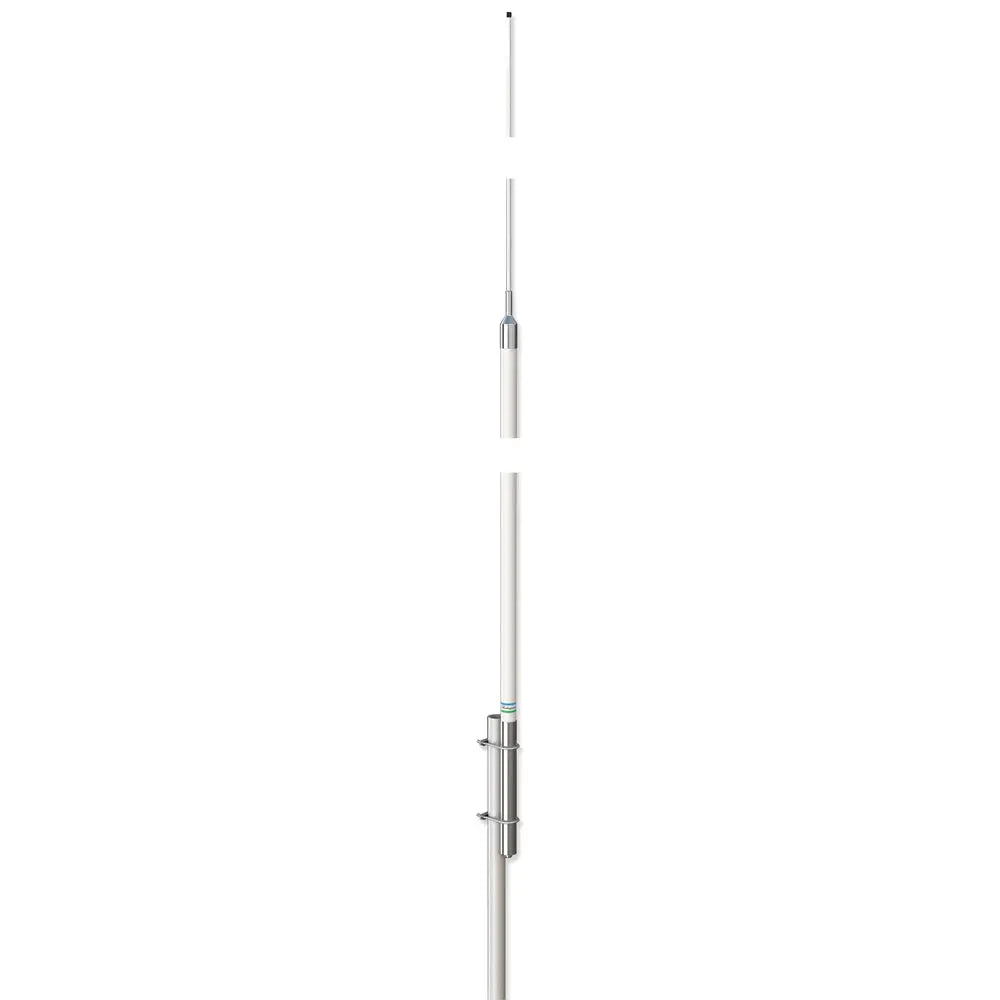

  • Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)

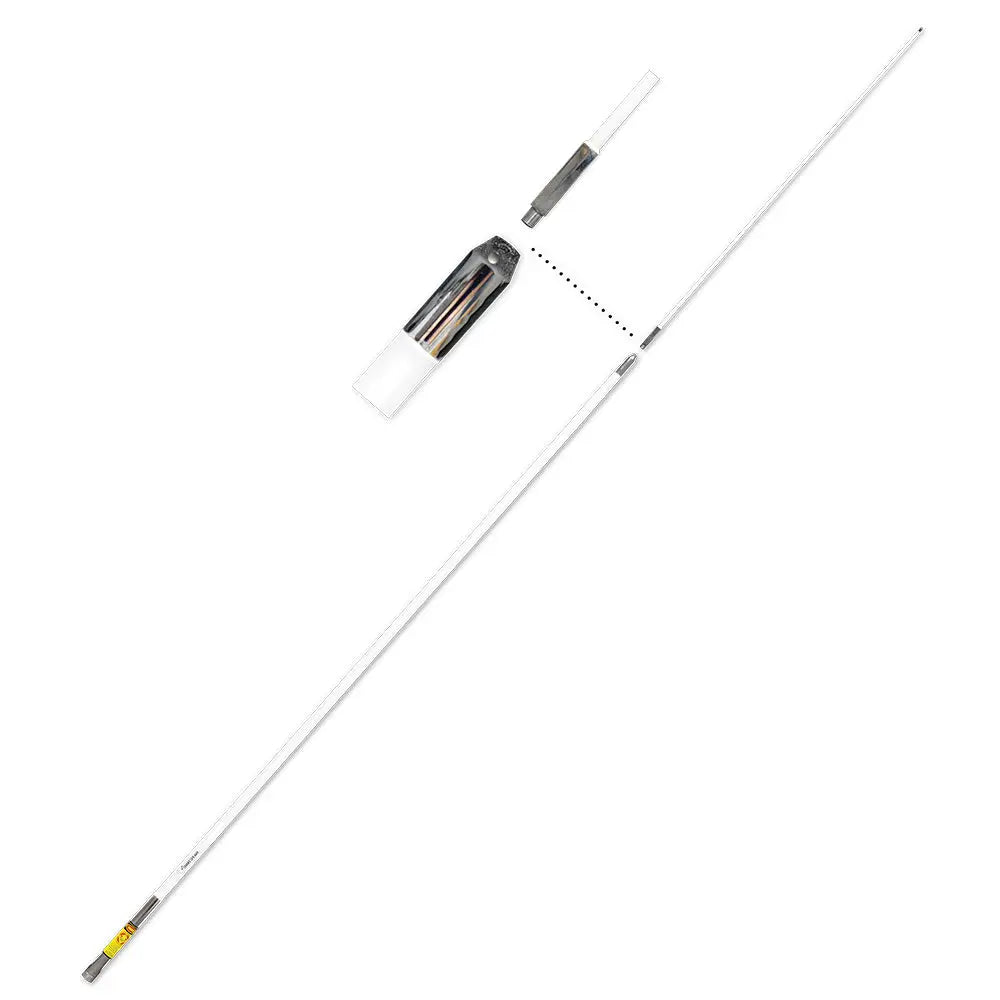

  • Two sections: Base 75"; Tip 39" UPS shippable


Technical Specifications:


Frequency: VHF Marine band
Bandwidth: (within 2.0:1 SWR): 5MHz
SWR: 1.5:1 at 156.8 MHz
Impedance: (ohms): 50
Gain: 6 dB
Max Input (Watts): 100
DC Ground: YES
Termination: SO - 239
Height (feet): 9.5
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Chrome Plated
  • Length (Inches): 114"
  • Box Dimensions: 5"H x 5"W x 88"L WT: 5.2 lbs
  • UPC: 719441100032

Quick Guide (pdf)
Product form

Style 399-1M VHF 6dBCollinear Phased 5/8-wave with two coaxial chokes to suppress cable radiationThe Style 399-1M is the same as... Read more

SKU: CWR-10599
Barcode: 719441100032

$349.99$299.95 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: Mar 29, 2024 23:59:00 -0400

Description

Style 399-1M VHF 6dB

Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation

The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1"-14 thread
  • Aluminum sleeve for mast mounting
  • Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)
  • Two sections: Base 75"; Tip 39" UPS shippable


Technical Specifications:


Frequency: VHF Marine band
Bandwidth: (within 2.0:1 SWR): 5MHz
SWR: 1.5:1 at 156.8 MHz
Impedance: (ohms): 50
Gain: 6 dB
Max Input (Watts): 100
DC Ground: YES
Termination: SO - 239
Height (feet): 9.5
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Chrome Plated
  • Length (Inches): 114"
  • Box Dimensions: 5"H x 5"W x 88"L WT: 5.2 lbs
  • UPC: 719441100032

Quick Guide (pdf)
