Shakespeare 5206-N 8' VHF Antenna [5206-N]

Description

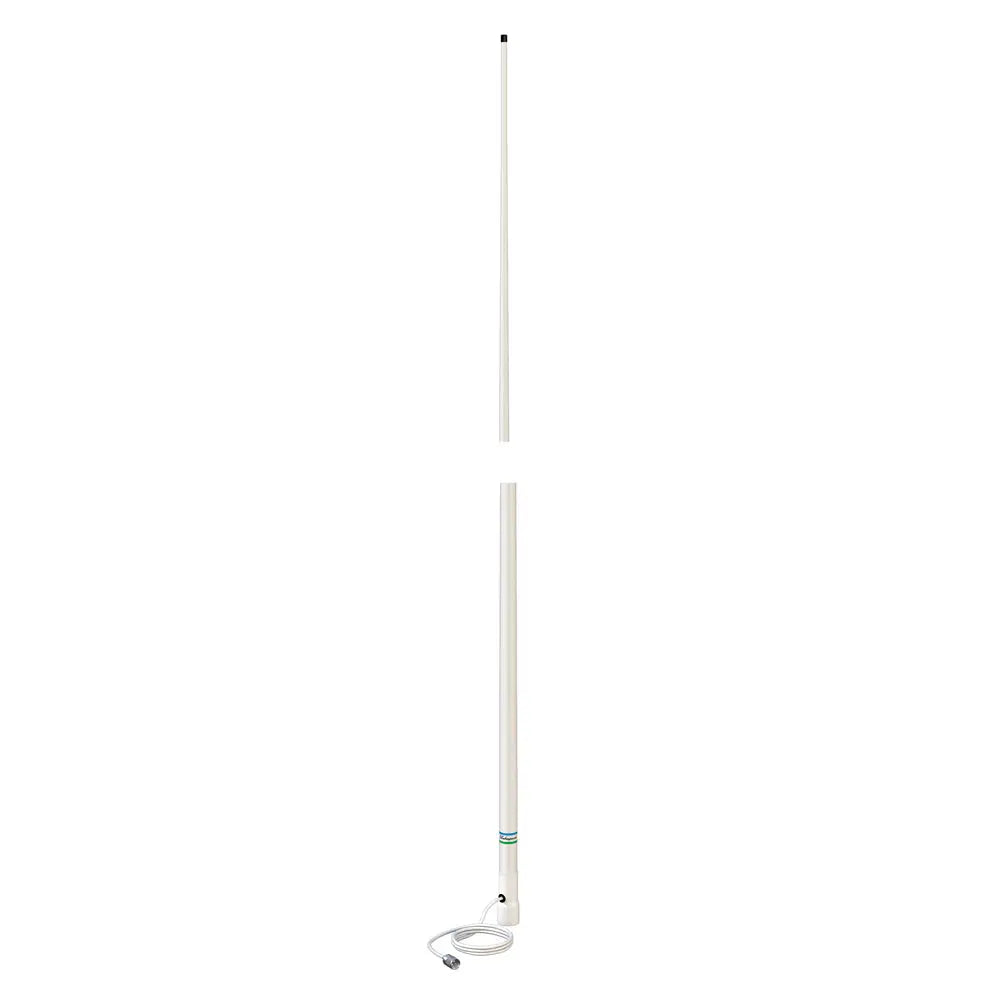

Shakespeare Style 5206-N VHF Marine - Reduced Length Version

8' LENGTH 6dB

END-FED WITH MATCHING STUB

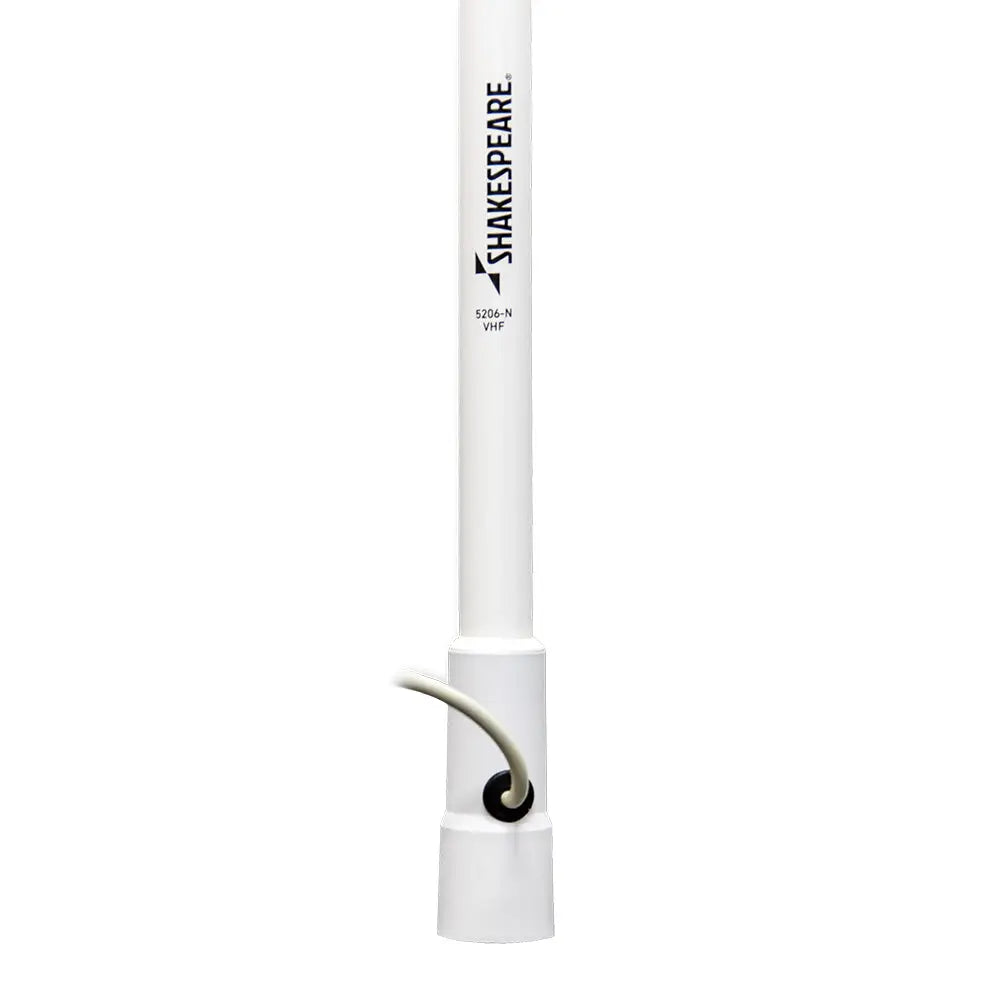

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

  • Quality copper cable elements for good range and efficiency
  • Nylon ferrule with standard 1"-14 thread
  • Includes 15' RG-58 cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
  • Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
  • One section
  • Shakespeare Limited Warranty: 2 years


Technical Specifications:


Frequency: VHF Marine band
Bandwidth: 3 MHz
SWR: 1.5:1 @156.8 MHz
Impedance: (Ohms): 50
Gain: 6 dB
Max Input (Watts): 50
DC Ground: NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
Termination: RG-58
Height (feet): 8
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Nylon
  • Length (Inches): 96"
  • Box Dimensions: 3"H x 3"W x 95"L WT: 2.4 lbs
  • UPC: 719441100186

Quick Guide (pdf)
Product form

Shakespeare Style 5206-N VHF Marine - Reduced Length Version8' LENGTH 6dBEND-FED WITH MATCHING STUBSame as the Style 5206-C, but the... Read more

SKU: CWR-10627
Barcode: 719441100186

$84.99$84.95 Excl. VAT
