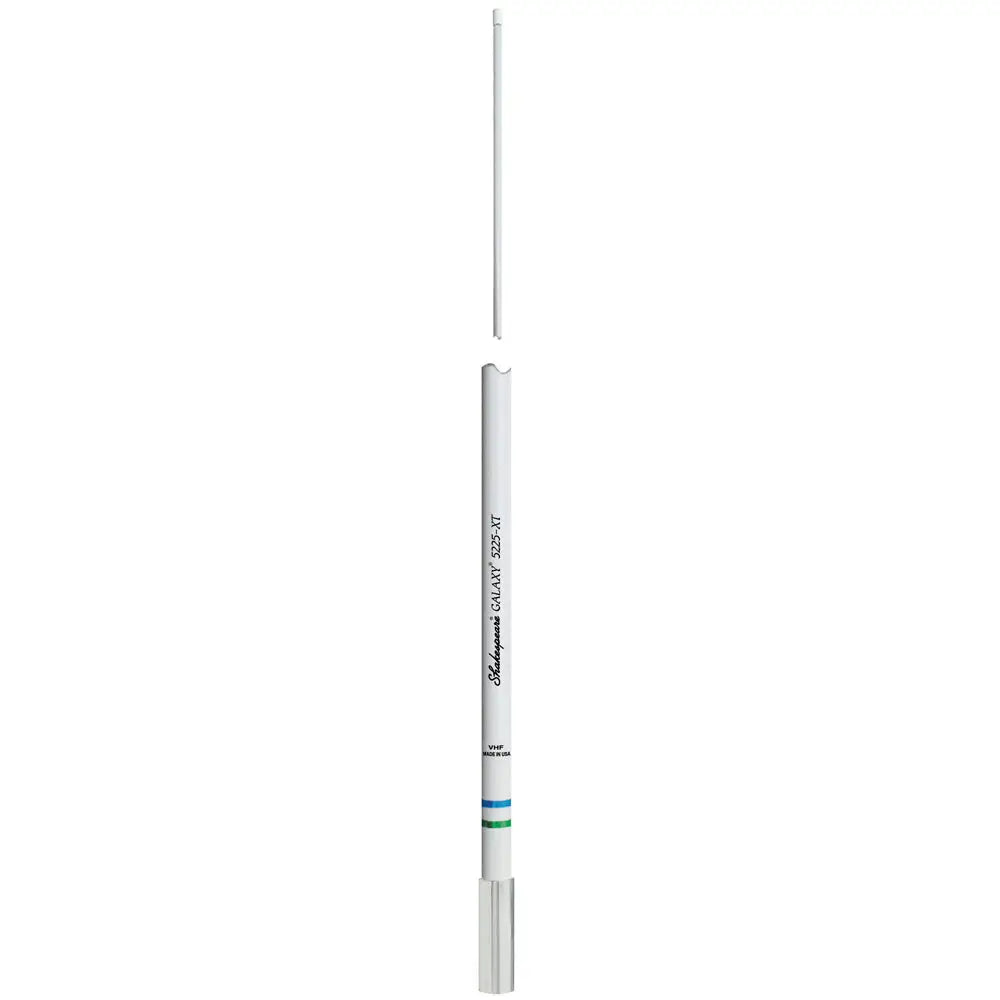

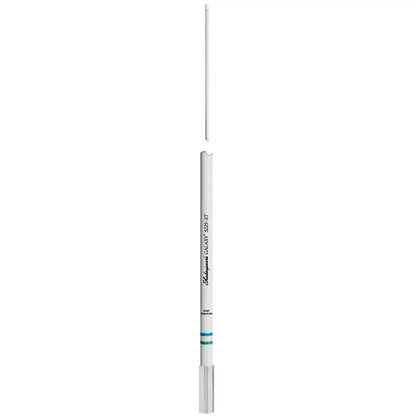

Shakespeare 5225-XT 8 VHF Galaxy Antenna 6dB Gain Reduced Length [5225-XT]

Description

5225-XT 8' VHF Galaxy Antenna 6dB Gain - Reduced Length

Collinear-phased 5/8 wave elements

EXTRA TOUGH!

Shakespeare's best 8', 6dB Gain antenna. Its Galaxy® design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread

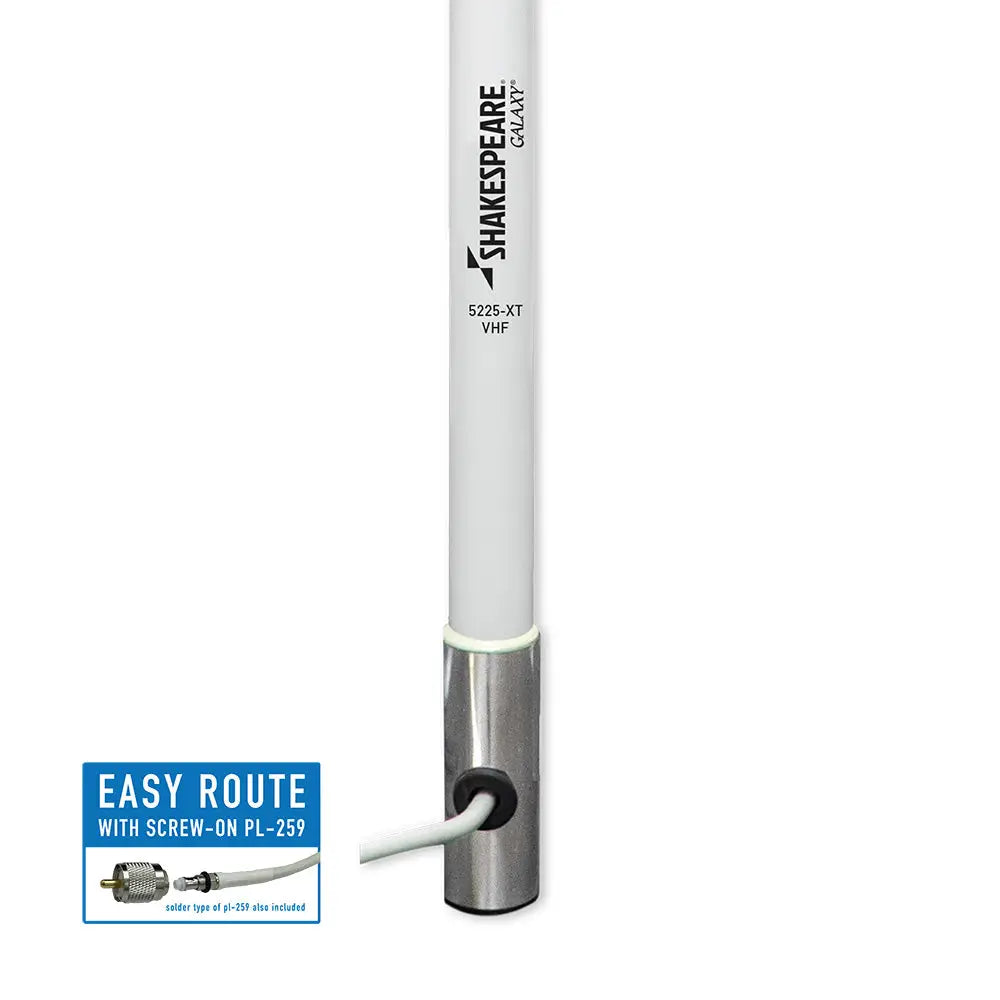

  • 20' RG-8/X low-loss cable plus a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years
  • Includes FME cables

Technical Specifications:

  • Frequency:    VHF Marine Band
  • Bandwidth:    3 MHz within 2.0:1 VSWR
  • SWR:    nominally 1.5:1 at 156.8 MHz
  • Impedance:    50 ohms
  • Max Input (Watts):    100 watts
  • DC Ground:    YES
  • Polarization:    Vertical

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 96"
  • Box Dimensions: 2"H x 2"W x 95"L WT: 2.2 lbs
  • UPC: 719441200220

Quick Guide (pdf)
Product form

5225-XT 8' VHF Galaxy Antenna 6dB Gain - Reduced LengthCollinear-phased 5/8 wave elementsEXTRA TOUGH!Shakespeare's best 8', 6dB Gain antenna. Its... Read more

SKU: CWR-10636
Barcode: 719441200220

$219.99$199.95 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: Dec 03, 2023 23:59:00 -0500

Description

5225-XT 8' VHF Galaxy Antenna 6dB Gain - Reduced Length

Collinear-phased 5/8 wave elements

EXTRA TOUGH!

Shakespeare's best 8', 6dB Gain antenna. Its Galaxy® design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • 20' RG-8/X low-loss cable plus a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years
  • Includes FME cables

Technical Specifications:

  • Frequency:    VHF Marine Band
  • Bandwidth:    3 MHz within 2.0:1 VSWR
  • SWR:    nominally 1.5:1 at 156.8 MHz
  • Impedance:    50 ohms
  • Max Input (Watts):    100 watts
  • DC Ground:    YES
  • Polarization:    Vertical

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 96"
  • Box Dimensions: 2"H x 2"W x 95"L WT: 2.2 lbs
  • UPC: 719441200220

Quick Guide (pdf)
