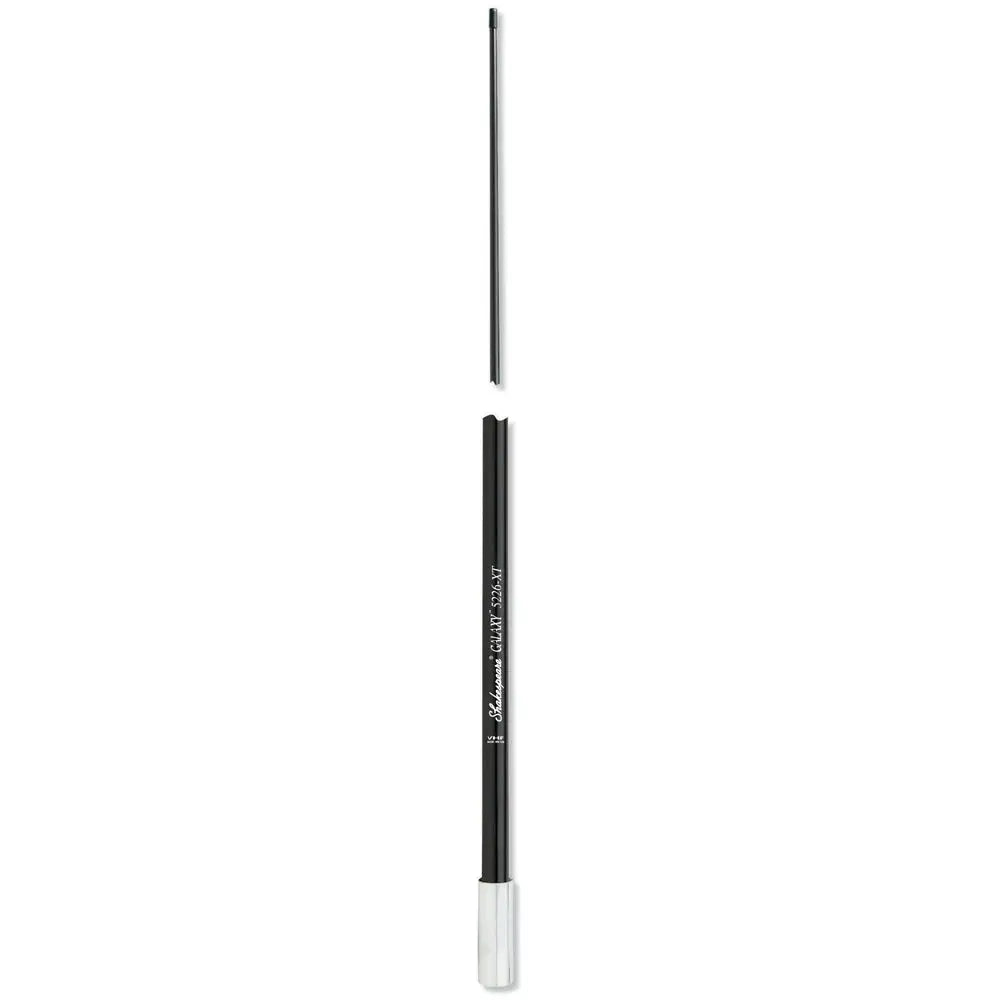

Shakespeare 5226-XT 8' Black VHF Antenna [5226-XT]

Description

Shakespeare Galaxy Style 5226-XT - Reduced Length
8' VHF 6dB Gain
Collinear-phased 5/8 wave elements

EXTRA TOUGH!

This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

  • Brass and copper elements for maximum range and efficiency

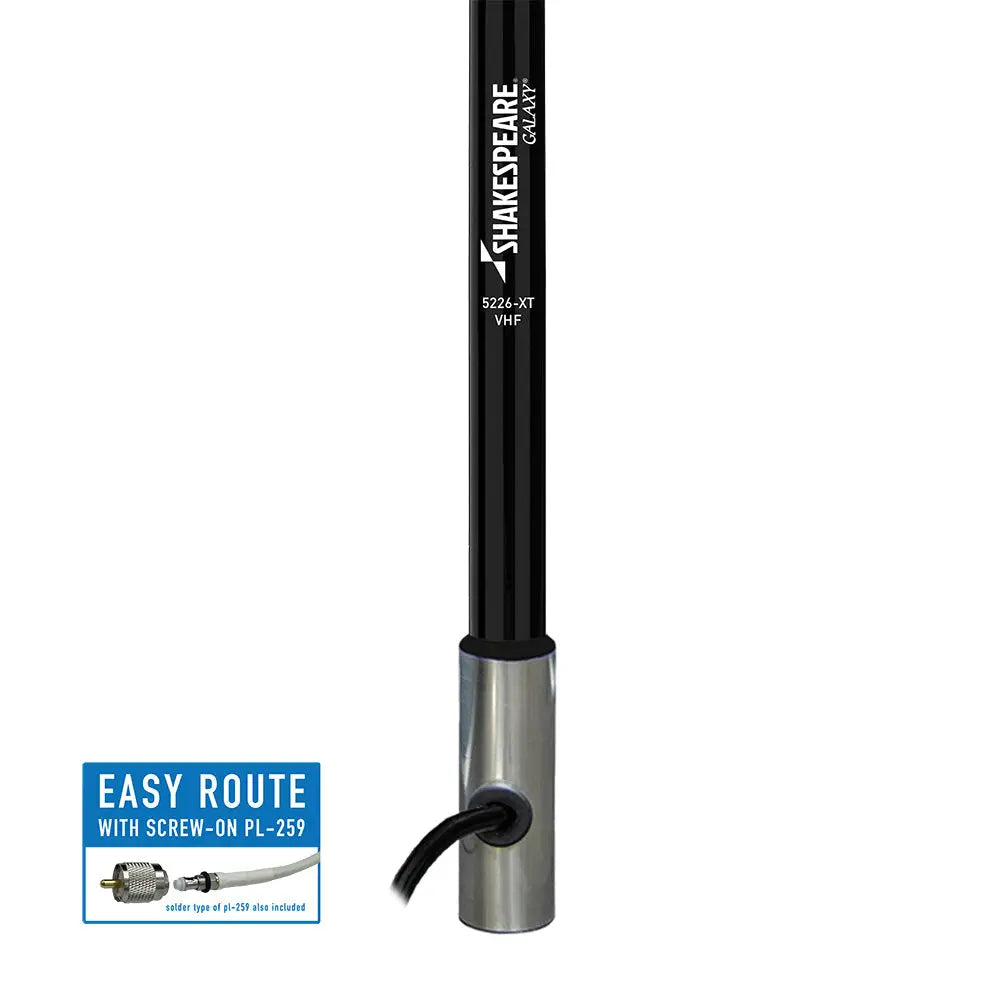

  • Stainless steel ferrule with standard 1"-14 thread
  • 20' RG-8/X low-loss cable plus a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years


Technical Specifications:


Frequency: VHF Marine Band
Bandwidth: 3 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Impedance: 50 ohms
Gain: 6 dB
Max Input (Watts): 100 watts
DC Ground: YES
Height (feet): 8
Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: Black
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 96"
  • Box Dimensions: 2"H x 2"W x 95"L WT: 2.4 lbs
  • UPC: 719441200237

Quick Guide (pdf)
Product form

Shakespeare Galaxy Style 5226-XT - Reduced Length8' VHF 6dB GainCollinear-phased 5/8 wave elementsEXTRA TOUGH!This antenna is the same as Style... Read more

SKU: CWR-10637
Barcode: 719441200237

$219.99$213.95 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: Apr 18, 2024 23:59:00 -0400

Description

Shakespeare Galaxy Style 5226-XT - Reduced Length
8' VHF 6dB Gain
Collinear-phased 5/8 wave elements

EXTRA TOUGH!

This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • 20' RG-8/X low-loss cable plus a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years


Technical Specifications:


Frequency: VHF Marine Band
Bandwidth: 3 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Impedance: 50 ohms
Gain: 6 dB
Max Input (Watts): 100 watts
DC Ground: YES
Height (feet): 8
Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: Black
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 96"
  • Box Dimensions: 2"H x 2"W x 95"L WT: 2.4 lbs
  • UPC: 719441200237

Quick Guide (pdf)
