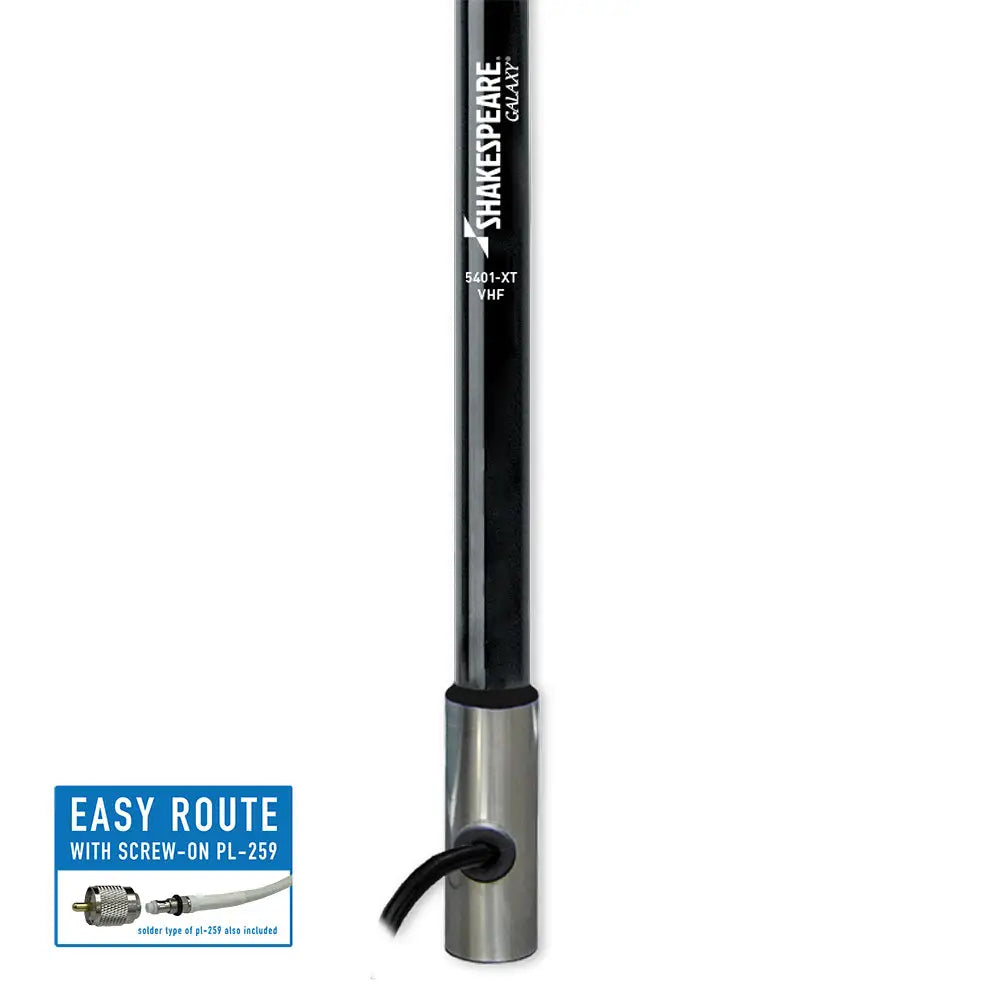

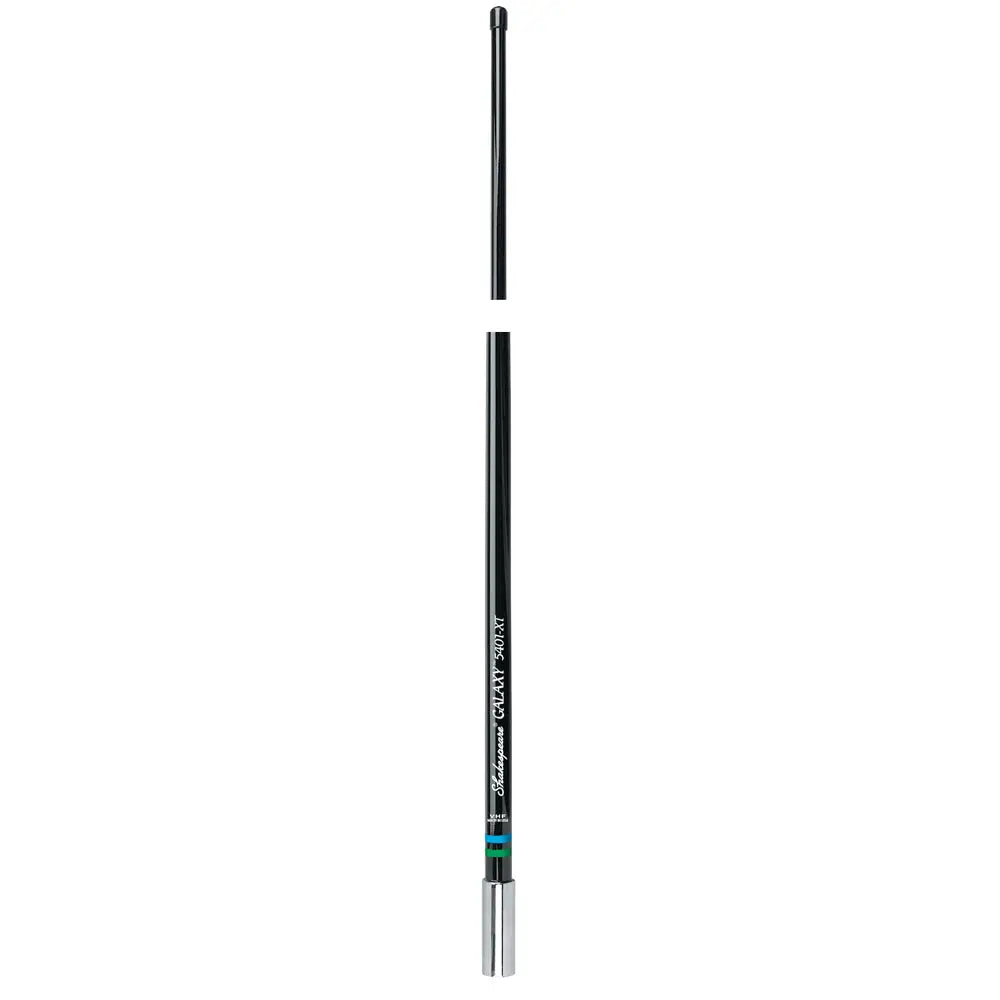

Shakespeare 5401-XT Galaxy 4' Antenna [5401-XT]

Description

5401-XT Galaxy 4' Antenna

Center-fed 1/2 wave coaxial sleeve

This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.

Features:

  • Brass and copper elements for maximum range
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years
  • Includes FME Cables

Technical Specifications:

Frequency: VHF Marine Band
Bandwidth: 5 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Gain: 3 dB
Max Input (Watts): 50 watts
Height (feet): 4

Specifications:

  • Antenna Band: VHF
  • Color: Black
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 48"
  • Box Dimensions: 3"H x 3"W x 55"L WT: 3.1 lbs
  • UPC: 719441100612

Quick Guide (pdf)
Product form

5401-XT Galaxy 4' AntennaCenter-fed 1/2 wave coaxial sleeveThis antenna is the same as the Style 5400-XT, but in an exclusive... Read more

SKU: CWR-14038
Barcode: 719441100612

$199.99$189.95 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: Apr 14, 2024 23:59:00 -0400

Description

5401-XT Galaxy 4' Antenna

Center-fed 1/2 wave coaxial sleeve

This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.

Features:

  • Brass and copper elements for maximum range
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years
  • Includes FME Cables

Technical Specifications:

Frequency: VHF Marine Band
Bandwidth: 5 MHz within 2.0:1 VSWR
SWR: nominally 1.5:1 at 156.8 MHz
Gain: 3 dB
Max Input (Watts): 50 watts
Height (feet): 4

Specifications:

  • Antenna Band: VHF
  • Color: Black
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 48"
  • Box Dimensions: 3"H x 3"W x 55"L WT: 3.1 lbs
  • UPC: 719441100612

Quick Guide (pdf)
