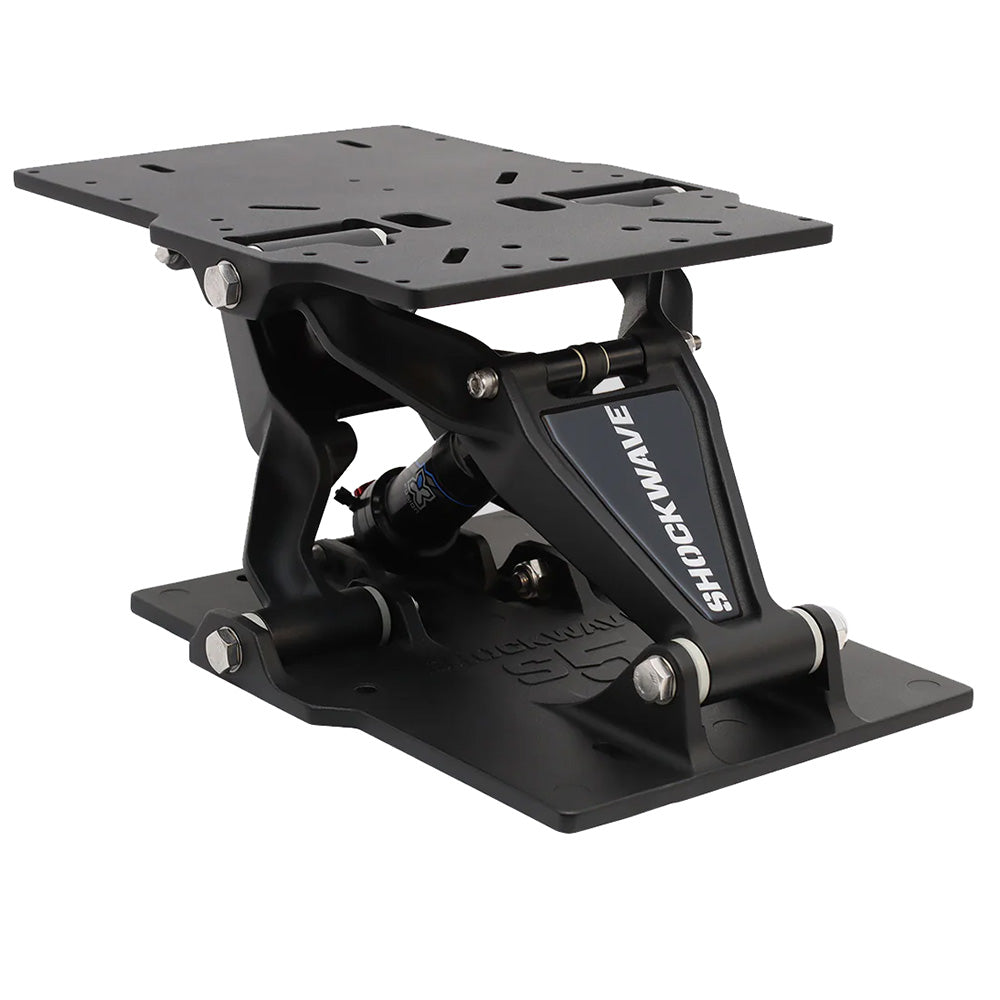

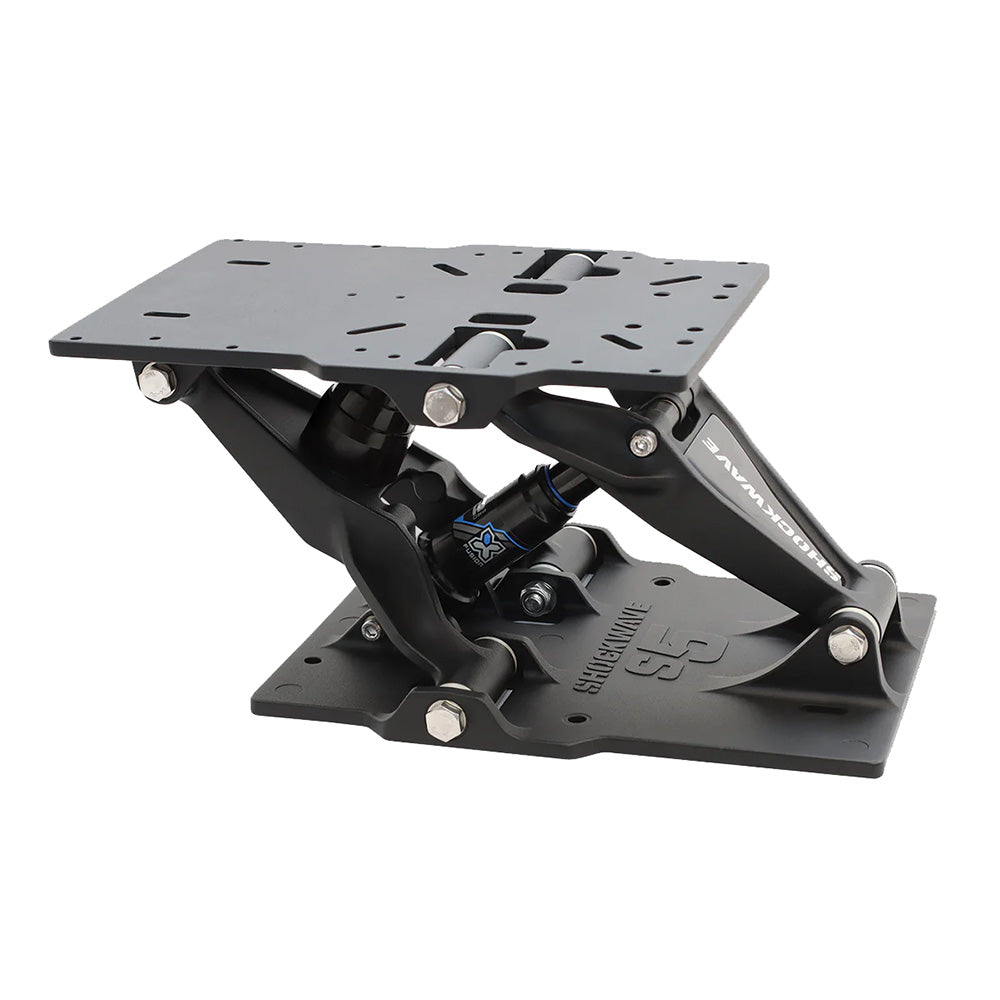

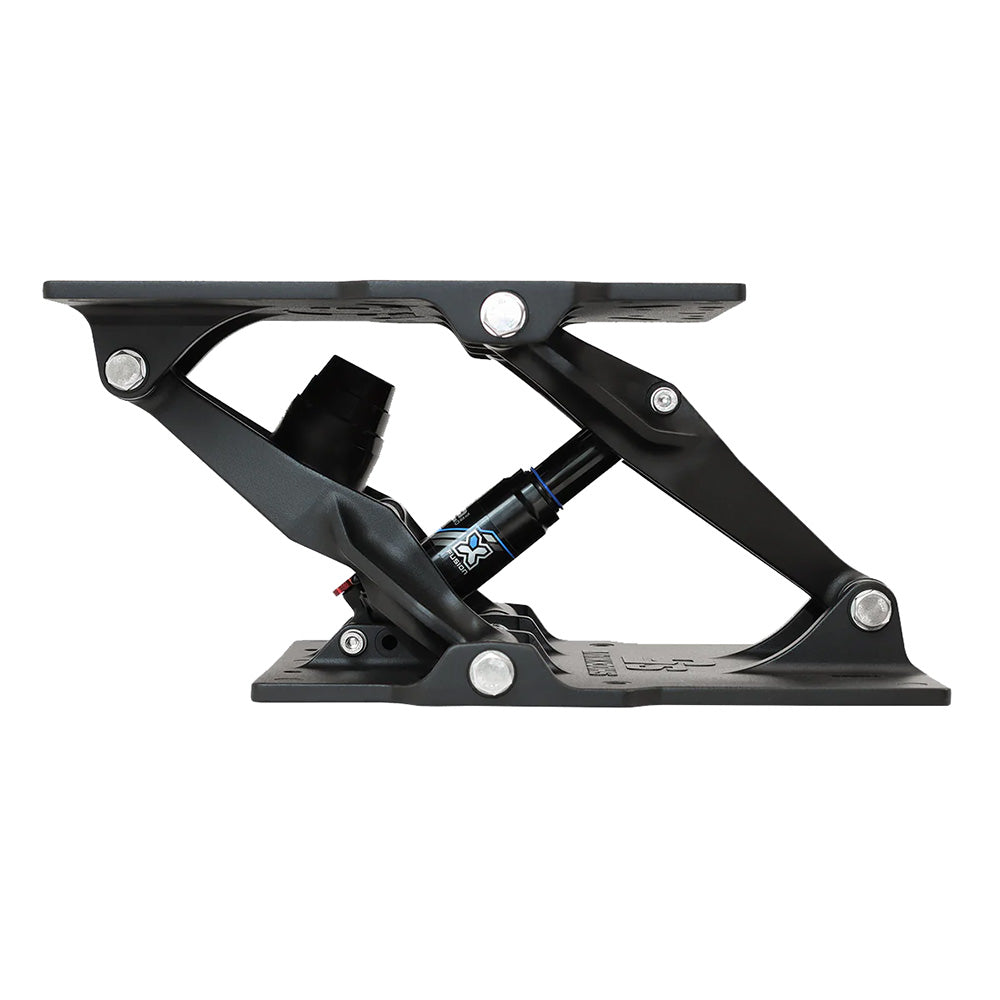

Shockwave S5-LW Suspension Base - Black

S5-LW Suspension Base - Black

The Shockwave S5-LW lightweight marine suspension base is our entry-level recreational suspension option. Designed to mitigate the shock of wave impact in light conditions on freshwater lakes or cabin boats on the ocean.

Made from anodized A360 cast aluminum that has been powder-coated and fitted with stainless steel hardware, the S5-LW suspension base utilizes a three-link forward action suspension design.

Fitted with an X-Fusion O2 PRO R air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact. A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine X-Fusion O2 R, air spring, and shock with adjustable rebound
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• 3-Link Forward Action
• Anodized A360 Cast Aluminum, 304 SS Hardware, Powder Coated
• Minimal parts count and simple construction
• Easy to mount and adapt to the current seating

Vessel Application:

The S5-LW suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-LW can be fitted to almost any boat and any seat.
