    SP-120 Color System with Rudder Feedback & 18CI Pump

    Features:

    • The SI-TEX SP-120C is an Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
    • Does not require a separate junction box, everything simply connects to the rear of the control head
    • This Autopilot is ideal for small vessels under 38'
    • The Autopilot can operate in either Virtual Rudder feedback mode in the case of Outboards or a separate Rudder Feedback unit can be added for inboard vessels
    • SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously

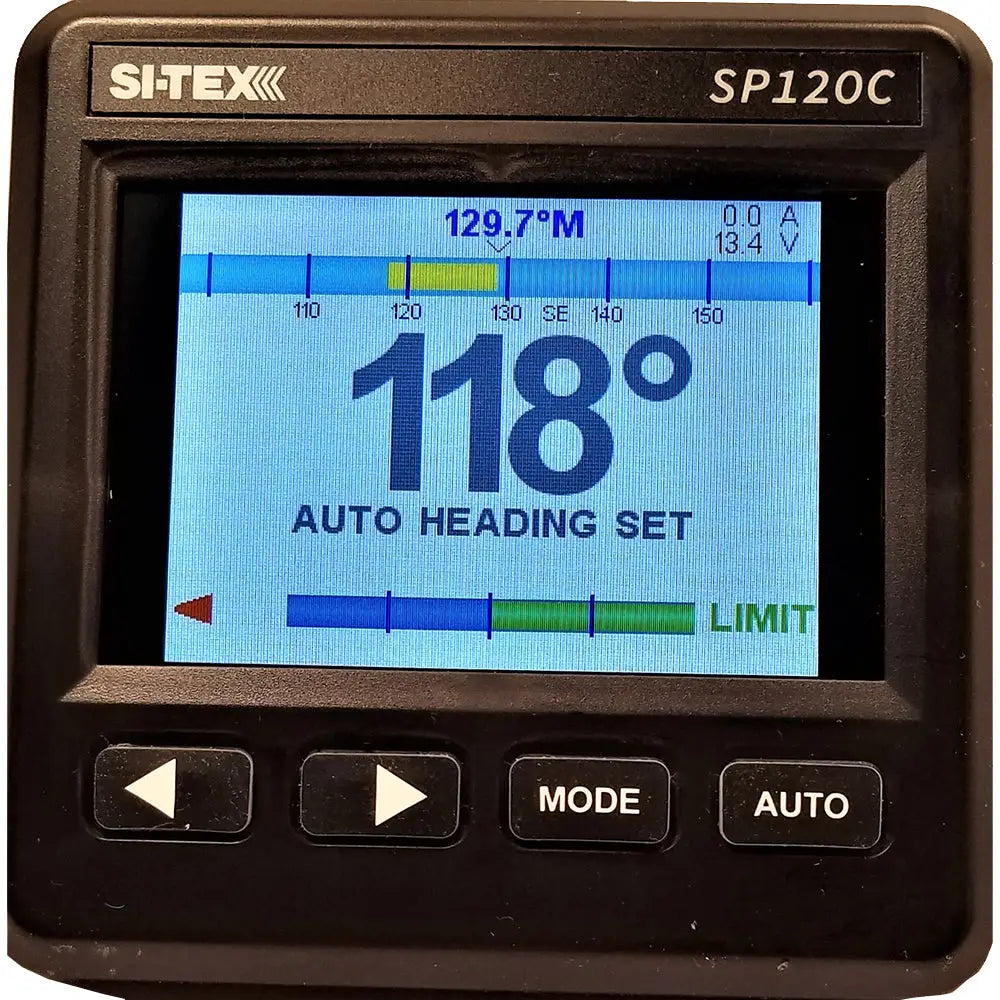

    • Compact 4.1” x 4.1” Splash proof Control head with large easy to read Color LCD LCD Display
    • Extremely easy to select your desired headings, operate, and setup, with new user friendly software
    • High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering response
    • Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to
    • enhance performance
    • NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
    • NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay
    • Autopilot Steering Modes:
    • Manual (Power Steer)
    • Auto (Pilot maintains selected Magnetic course)
    • GPS (Steers to Waypoint or Routes when Interfaced with GPS)
    • Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)
    • Protected by 2 Year SI-TEX Warranty

    Specifications:

    • Waterproof: IPX6
    • Control Head Dimensions: 110 mm L x 110 mm W
    • Voltage supply VOLTAGE: 12/24 Volts DC
    • LCD Color LCD Display
    • Constant Compass Heading Indicator and Rudder Angle Indicator
    • Current consumption: 0.5 amps at 12VDC in standby mode
    • Maximum Drive Output Current 15 Amps
    • Operating temperature: -10ºC to +55ºC
    • Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output
    • Course Detection <1 Degree

    Package Includes:

    • SI-TEX SP-120C Color LCD Autopilot Control Head
    • NMEA Interface Cables
    • 9 Axis Electronic Rate Gyro Compass
    • Control Head Sun cover
    • Product manual
    • Mounting Screws

    Brochure (pdf)
