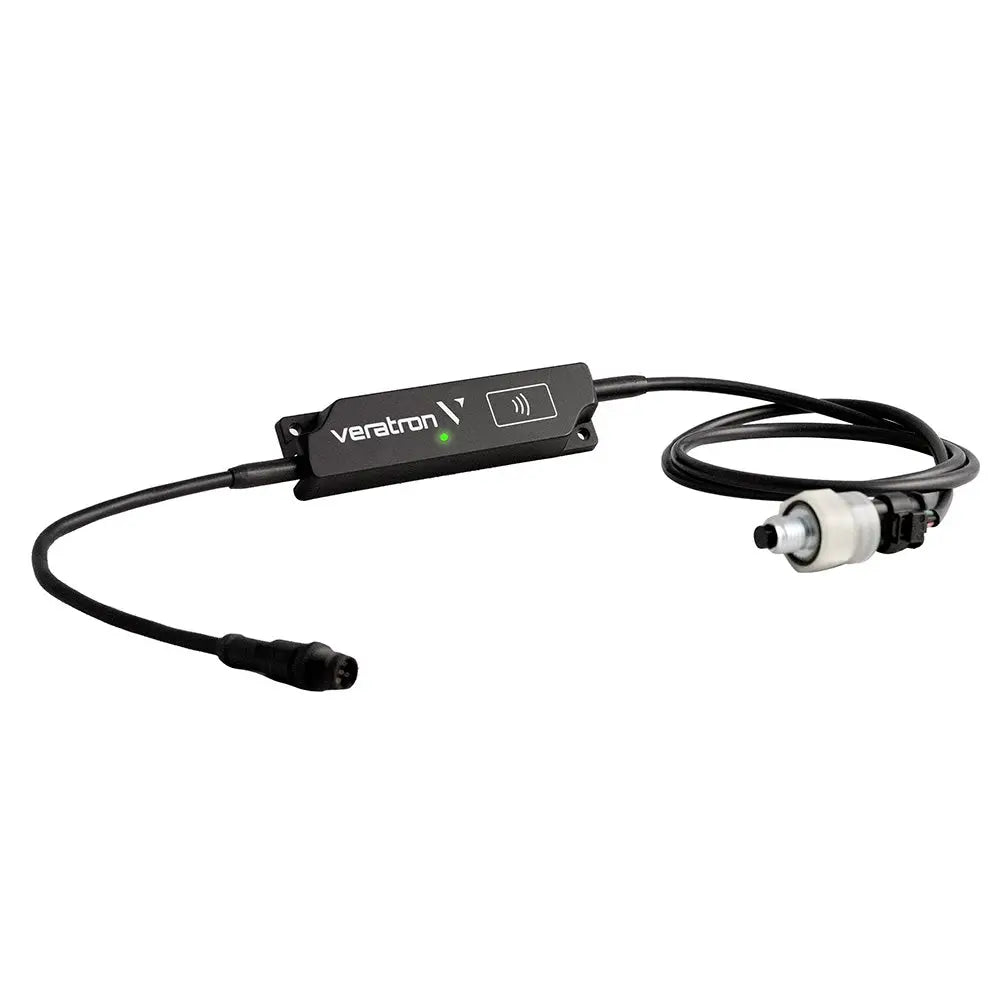

    LinkUp Intelligent Temperature & Pressure

    This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.

    Features:

    • Interface to the new electronic 2-in-1 sensor
    • Oil Temperature and Pressure in a single sensor
    • Rugged and reliable design derived from the automotive field
    • ASIC-controlled sensor
    • PWM (Pulse Width Modulated) output to transmit both pressure and temperature

    Technical Specifications:

    • M12 mounting thread
    • IP 69/K protection class
    • 5V power feed provided by the LinkUp
    • Temperature accuracy ± 1°K in the 135 °C – 160 °C range
    • Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above
    • Temperature range: -40 °C + 160 °C
    • Pressure range: 0.5 to 10.5 bar
    • 1M cable length
    This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
    Owner's Manual (pdf)
    Brochure (pdf)
