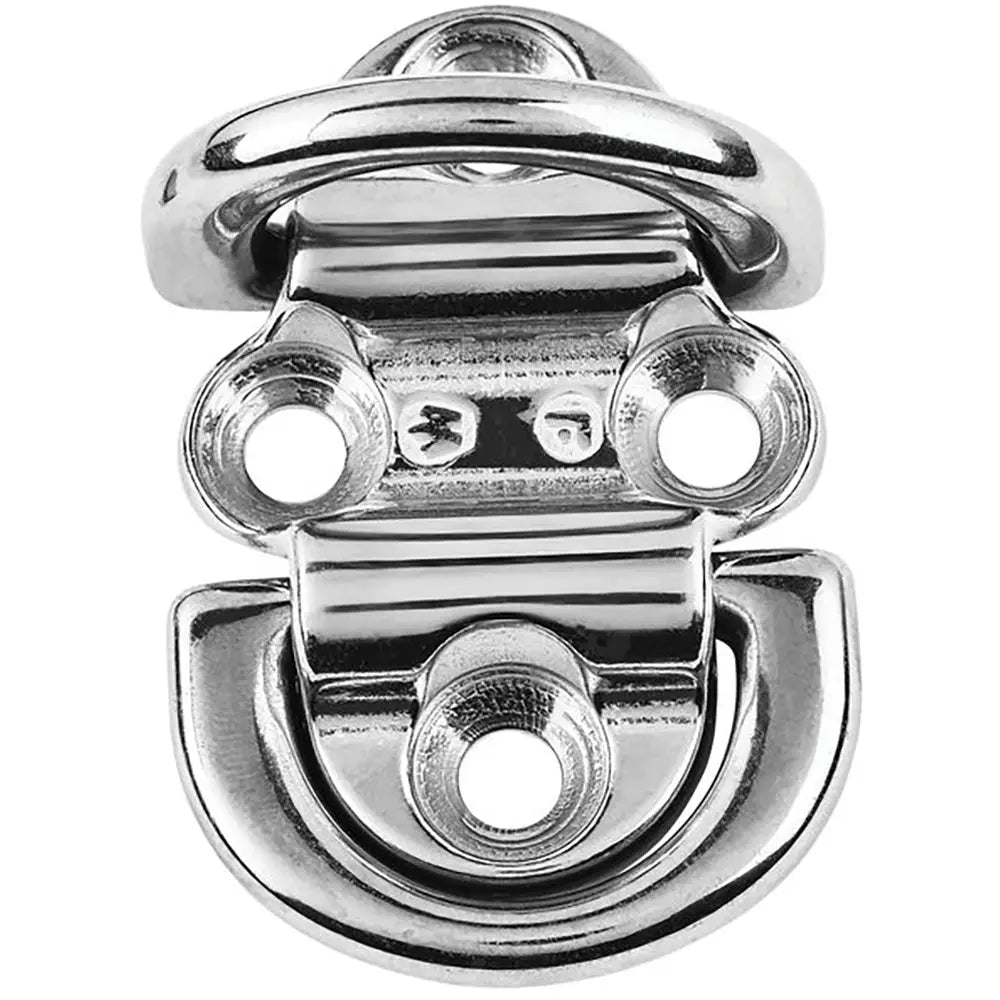

Wichard Double Folding Pad Eye - 8mm Diameter - 5/16" [06565]

Description

Double Folding Pad Eye - 8mm Diameter - 5/16"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 9470 / (kg) 4300
  • Weight: (lb) 0.556 / (g) 252

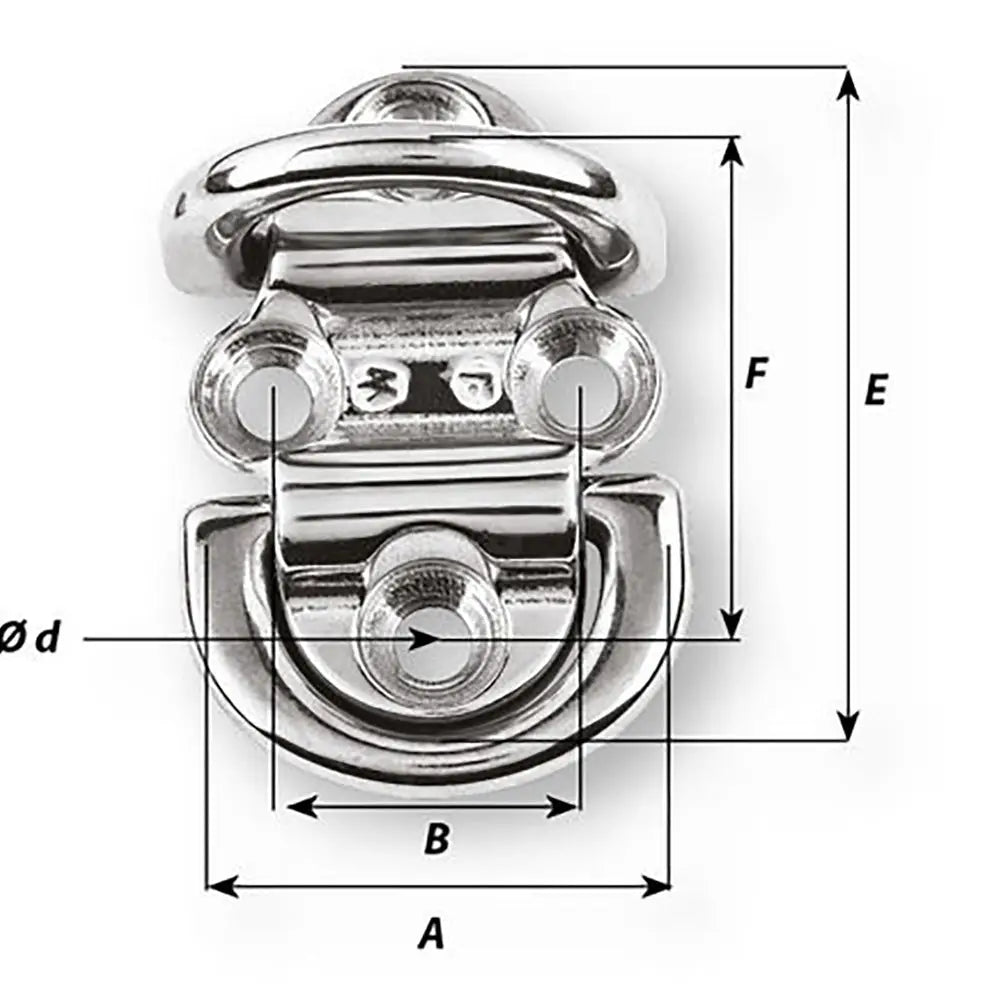

Dimensions:

  • A: (inch) 2 21/64" / (mm) 59
  • B: (inch) 1 3/8" / (mm) 35
  • C: (inch) 43/64" / (mm) 17
  • d diameter: (inch) 21/64" / (mm) 8.5
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 3 3/16" / (mm) 81
  • F: (inch) 2 21/64" / (mm) 59

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Double Folding Pad Eye - 8mm Diameter - 5/16"Features: Fully drop forged product with outstanding working and breaking loads regardless... Read more

SKU: CWR-97696

$190.50$128.95 Excl. tax

  • Tell a unique detail about this product
  • Shipped today? Order within: Jan 12, 2025 16:00:00 -0500

Description

Double Folding Pad Eye - 8mm Diameter - 5/16"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 9470 / (kg) 4300
  • Weight: (lb) 0.556 / (g) 252

Dimensions:

  • A: (inch) 2 21/64" / (mm) 59
  • B: (inch) 1 3/8" / (mm) 35
  • C: (inch) 43/64" / (mm) 17
  • d diameter: (inch) 21/64" / (mm) 8.5
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 3 3/16" / (mm) 81
  • F: (inch) 2 21/64" / (mm) 59

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
