    Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"

    Features:

    • Complete range of drop-forged saddles with high-quality stainless steel (316L)
    • Outstanding strength
    • The round shape reduces the wear of the components connected to them (straps, ropes...)

    Applications:

    • Fastening applications
    • Attachment of straps & cordage

    Specifications:

    • Materials: 316L stainless steel grade
    • Breaking load: (lb) 15430 / (kg) 7000
    • Weight: (lb) 0.165 / (g) 75

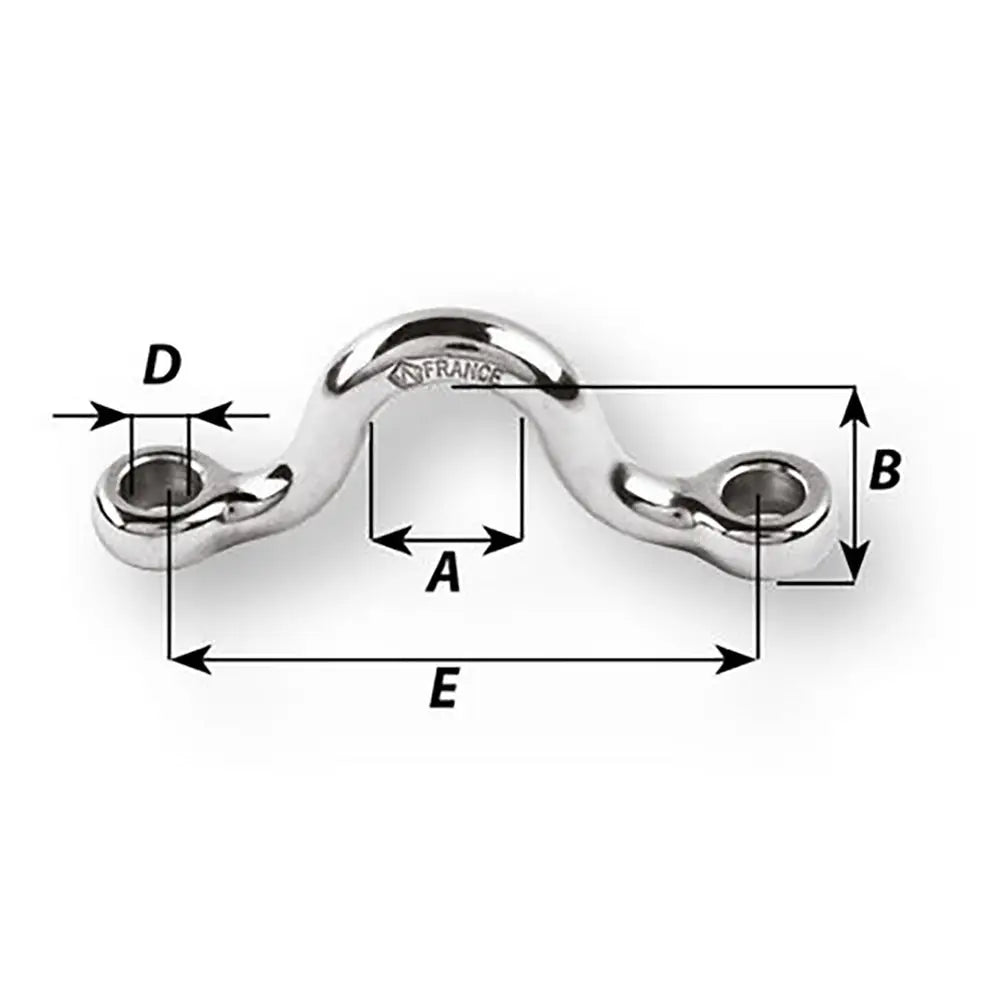

    Dimensions:

    • A: (inch) 25/32" / (mm) 20
    • B: (inch) 1 1/32" / (mm) 26
    • D diameter: (inch) 25/64" / (mm) 10
    • E: (inch) 3 5/64" / (mm) 78

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
