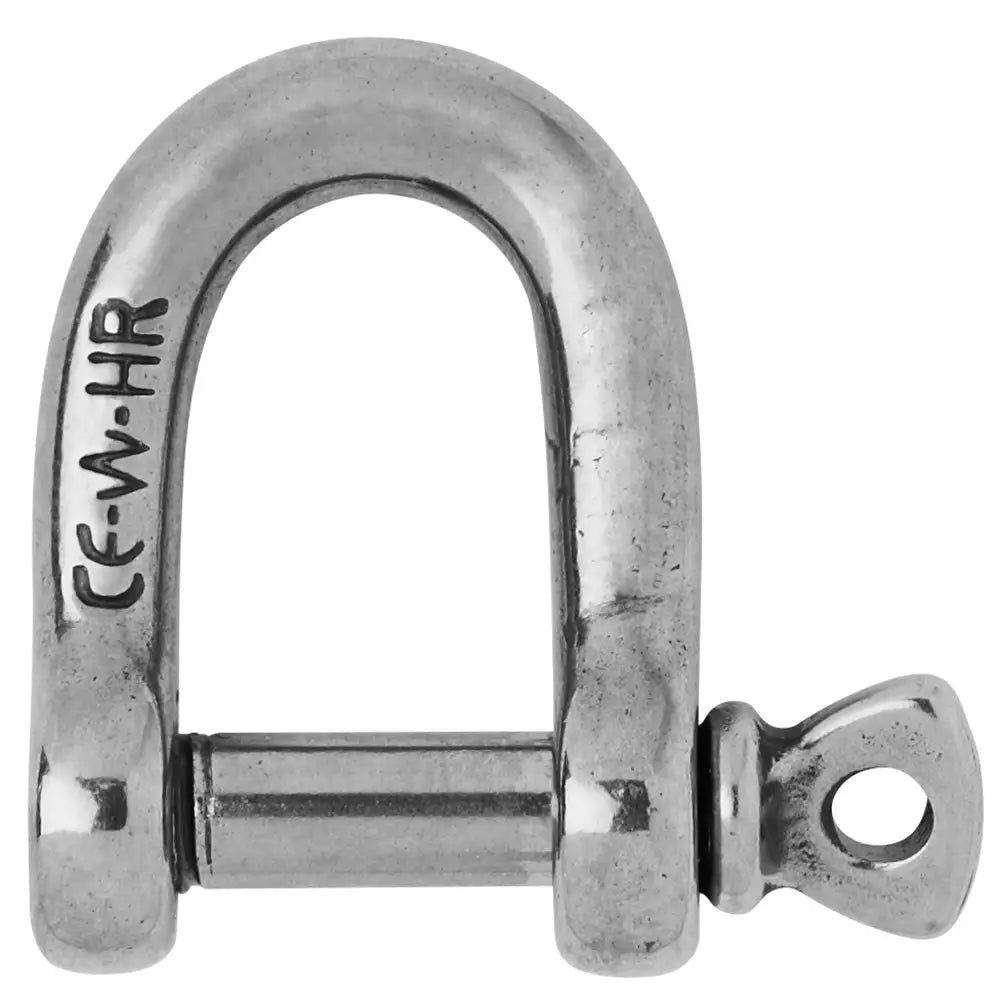

Wichard HR D Shackle - Diameter 25/64" [11205]

Description

HR D Shackle - Diameter 25/64"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head
  • Do not use it for mooring applications

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Working load (lb) 5820
  • WLL (lb) 2640
  • Breaking load (lb) 13220
  • Weight (lb) 0.225

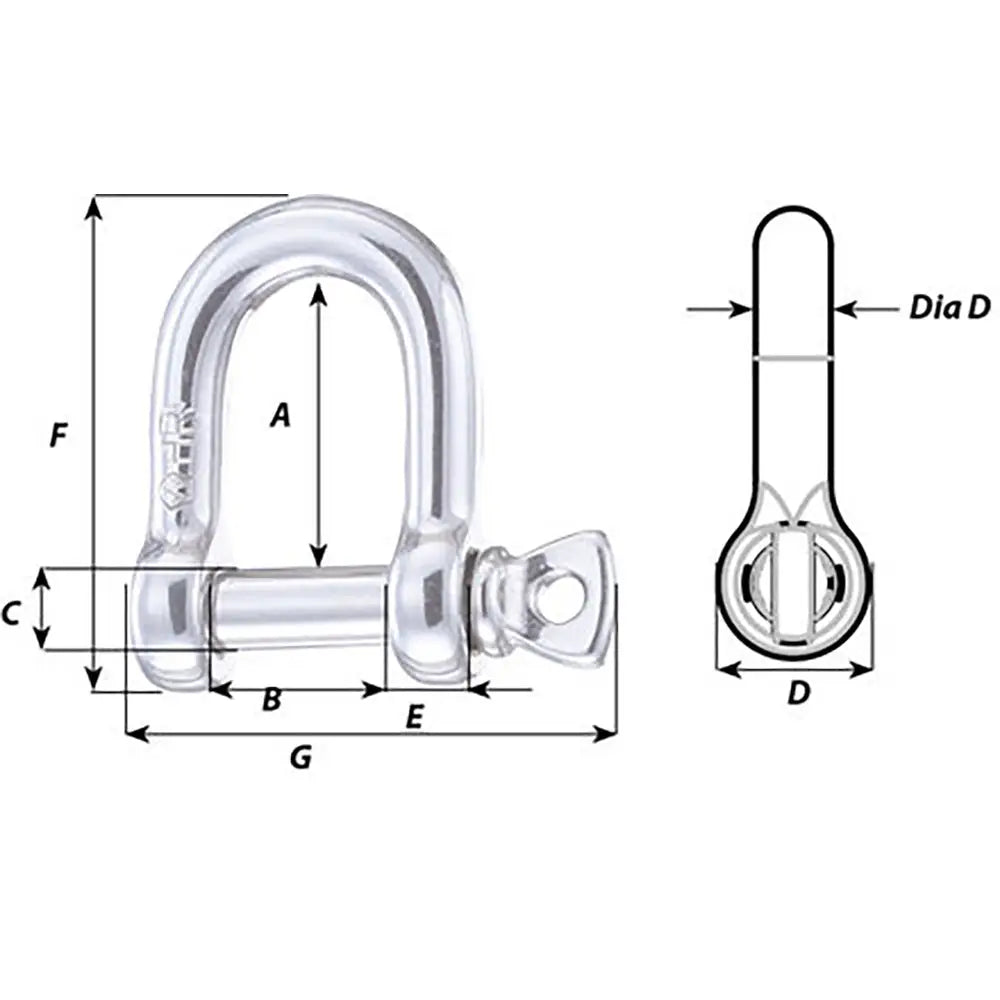

  • A (inch) 1 19/64"
  • B (inch) 25/32"
  • D diameter (inch) 25/64"
Product form

HR D Shackle - Diameter 25/64"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking... Read more

SKU: CWR-94415
Barcode: 768536112054

$112.36$95.51 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: May 18, 2024 23:59:00 -0400

Description

HR D Shackle - Diameter 25/64"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head
  • Do not use it for mooring applications

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Working load (lb) 5820
  • WLL (lb) 2640
  • Breaking load (lb) 13220
  • Weight (lb) 0.225
  • A (inch) 1 19/64"
  • B (inch) 25/32"
  • D diameter (inch) 25/64"
