Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [02777]

Description

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 6170 / (kg) 2800
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.873 / (g) 396

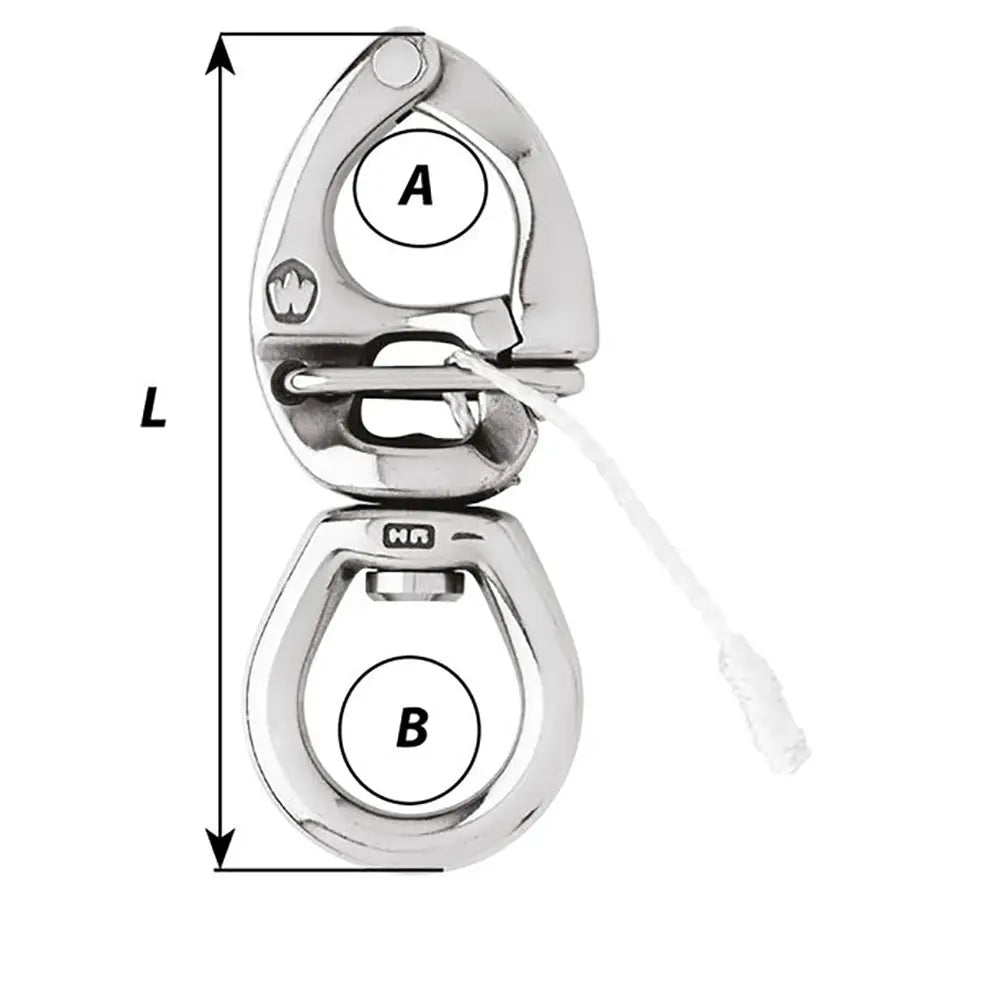

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 1 25/64" / (mm) 35.5
  • Length: (inch) 5 45/64" / (mm) 145

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with... Read more

SKU: CWR-97666

$409.58$348.15 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: May 04, 2024 23:59:00 -0400

Description

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 6170 / (kg) 2800
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.873 / (g) 396

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 1 25/64" / (mm) 35.5
  • Length: (inch) 5 45/64" / (mm) 145

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
