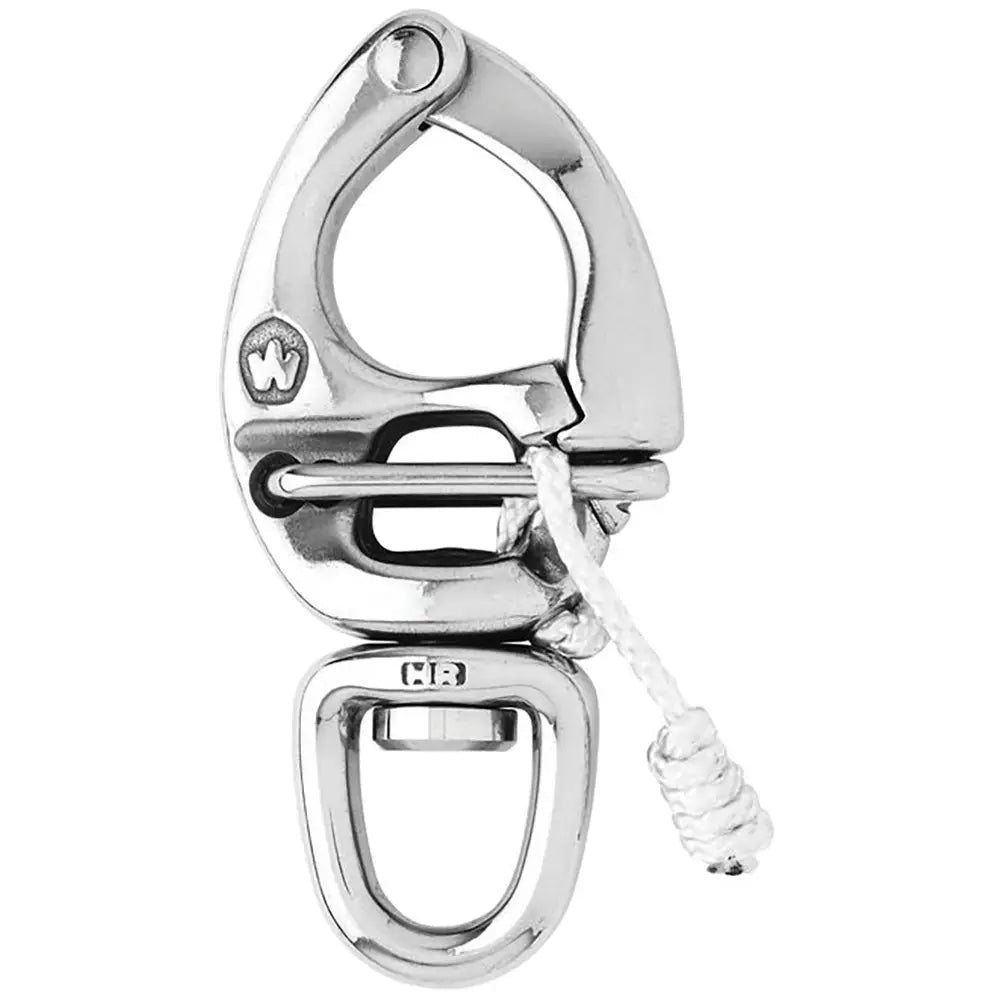

Wichard HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64" [02676]

Description

HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 9250 / (kg) 4200
  • Weight: (lb) 0.514 / (g) 233

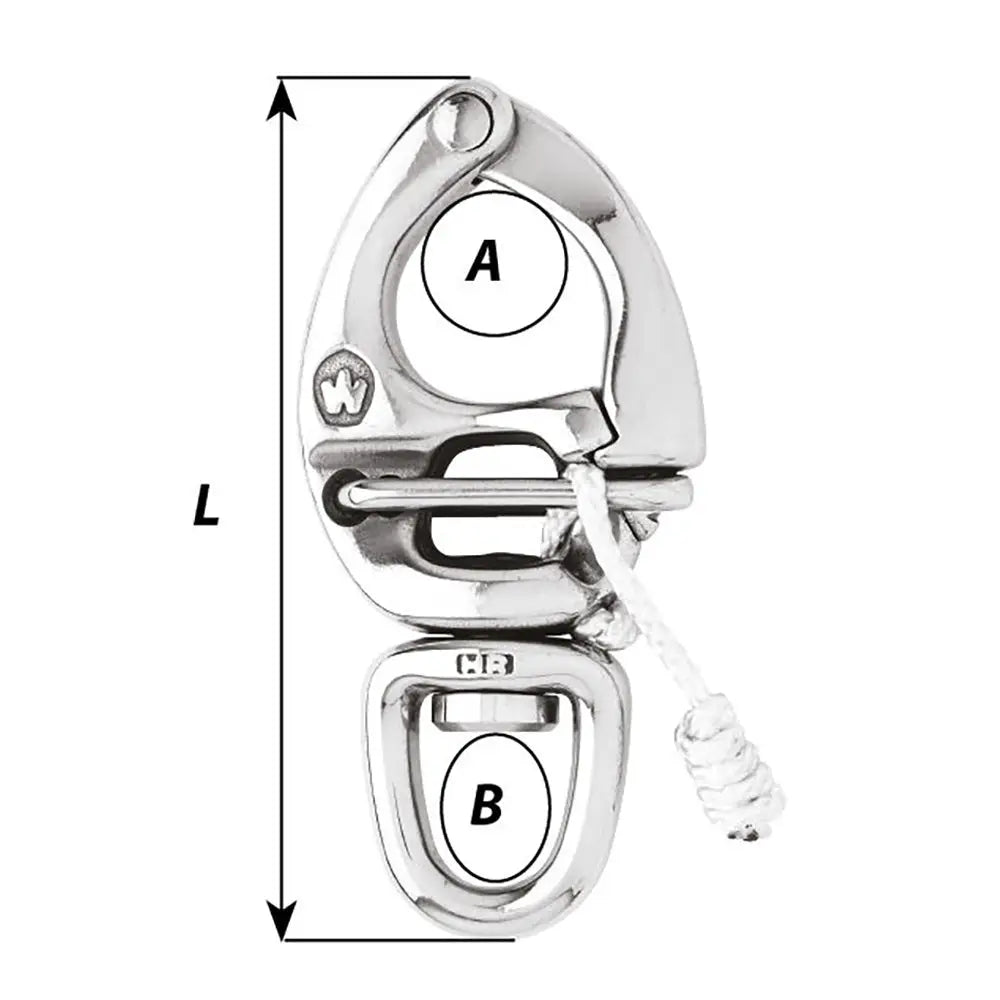

Dimensions:

  • A: (inch) 63/64" / (mm) 25
  • B: (inch) 5/8" / (mm) 16
  • Length: (inch) 4 21/64" / (mm) 110

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"Features: HR forged (17.4 PH) quick-release snap shackle with swivel... Read more

SKU: CWR-97660

$248.15$210.92 Excl. VAT

  • Tell a unique detail about this product
  • Shipped today? Order within: May 04, 2024 23:59:00 -0400

Description

HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 9250 / (kg) 4200
  • Weight: (lb) 0.514 / (g) 233

Dimensions:

  • A: (inch) 63/64" / (mm) 25
  • B: (inch) 5/8" / (mm) 16
  • Length: (inch) 4 21/64" / (mm) 110

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
