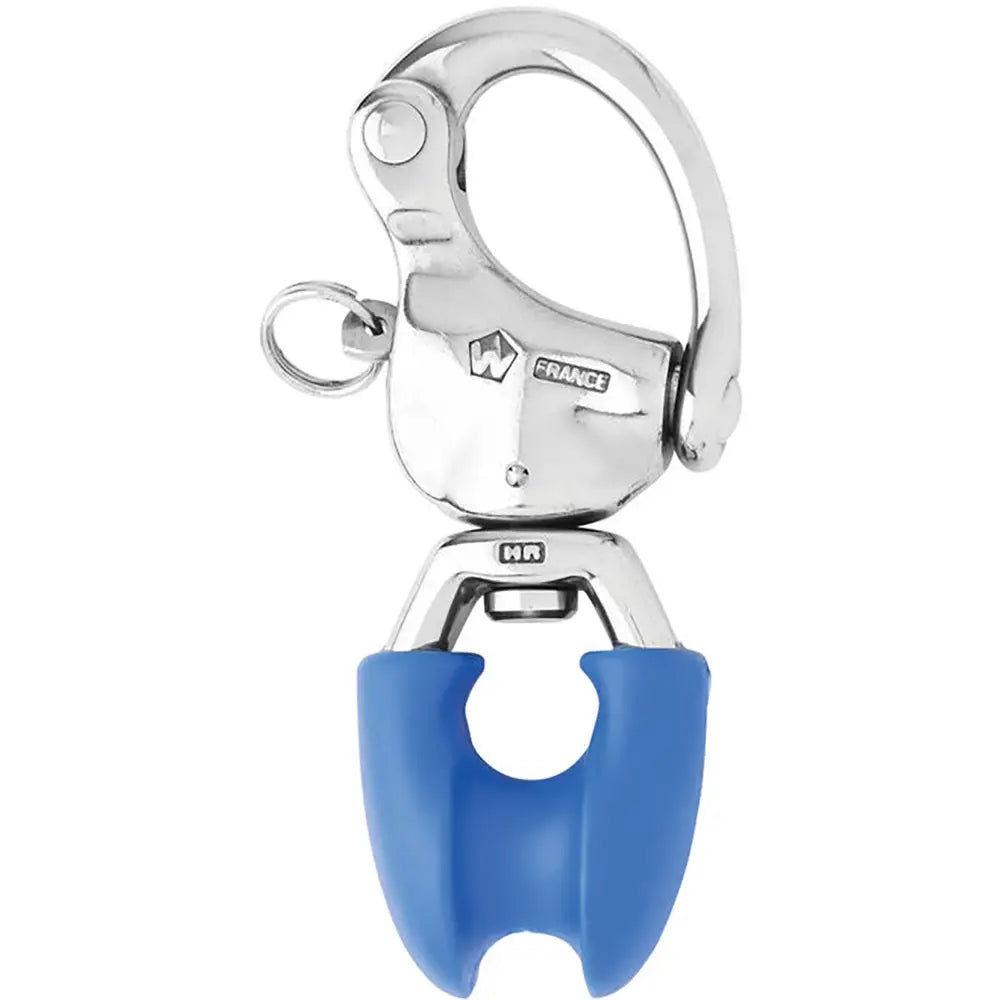

    HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

    Features:

    • HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
    • Allows to splice the halyard directly onto the snap shackle (without using a thimble)
    • Avoids the wear of the ropes
    • Free rotation of the snap shackle thanks to the swivel eye
    • The plunger pin is set captive into the hook and cannot become detached
    • Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

    Applications:

    • Snap shackle applications
    • Allows to splice the halyard
    • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 2820 / (kg) 1280
    • Breaking load: (lb) 5290 / (kg) 2400

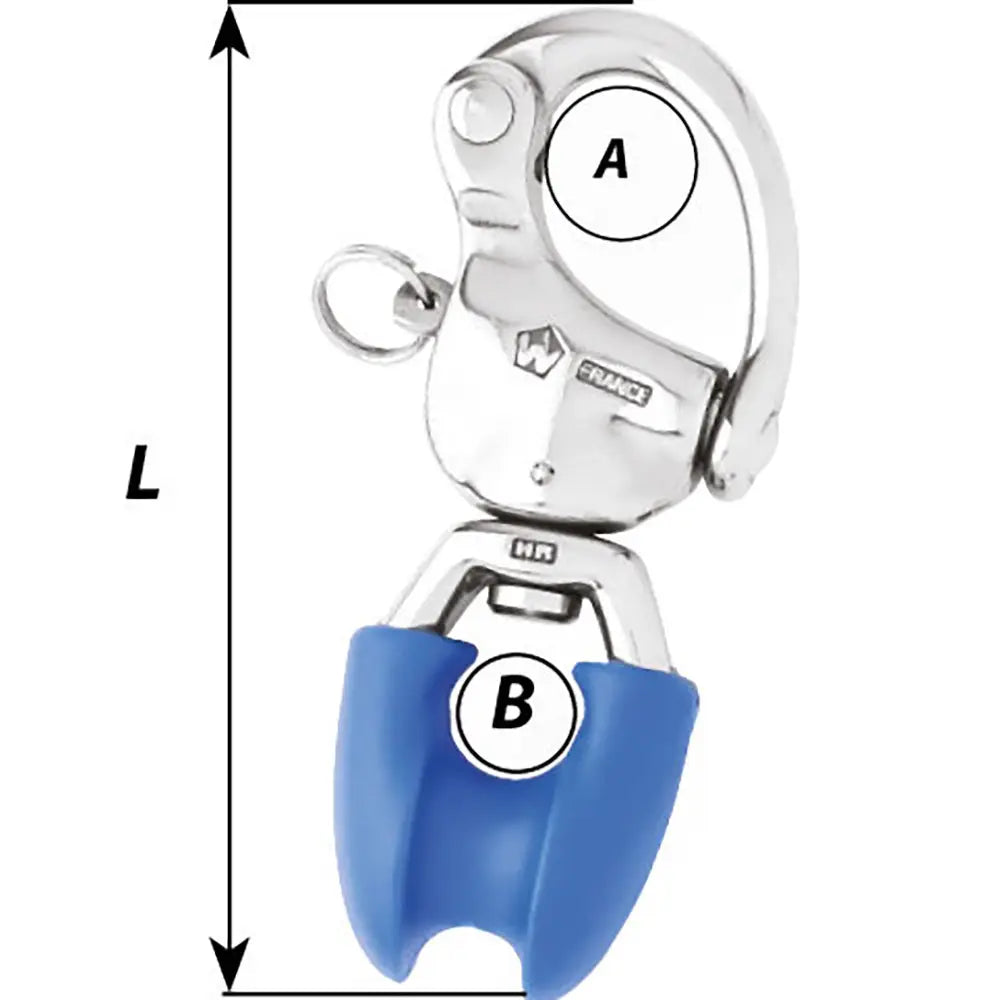

    Dimensions:

    • A: (inch) 53/64" / (mm) 110
    • B: (inch) 35/64" / (mm) 21
    • Length: (inch) 4 21/64" / (mm) 14

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
