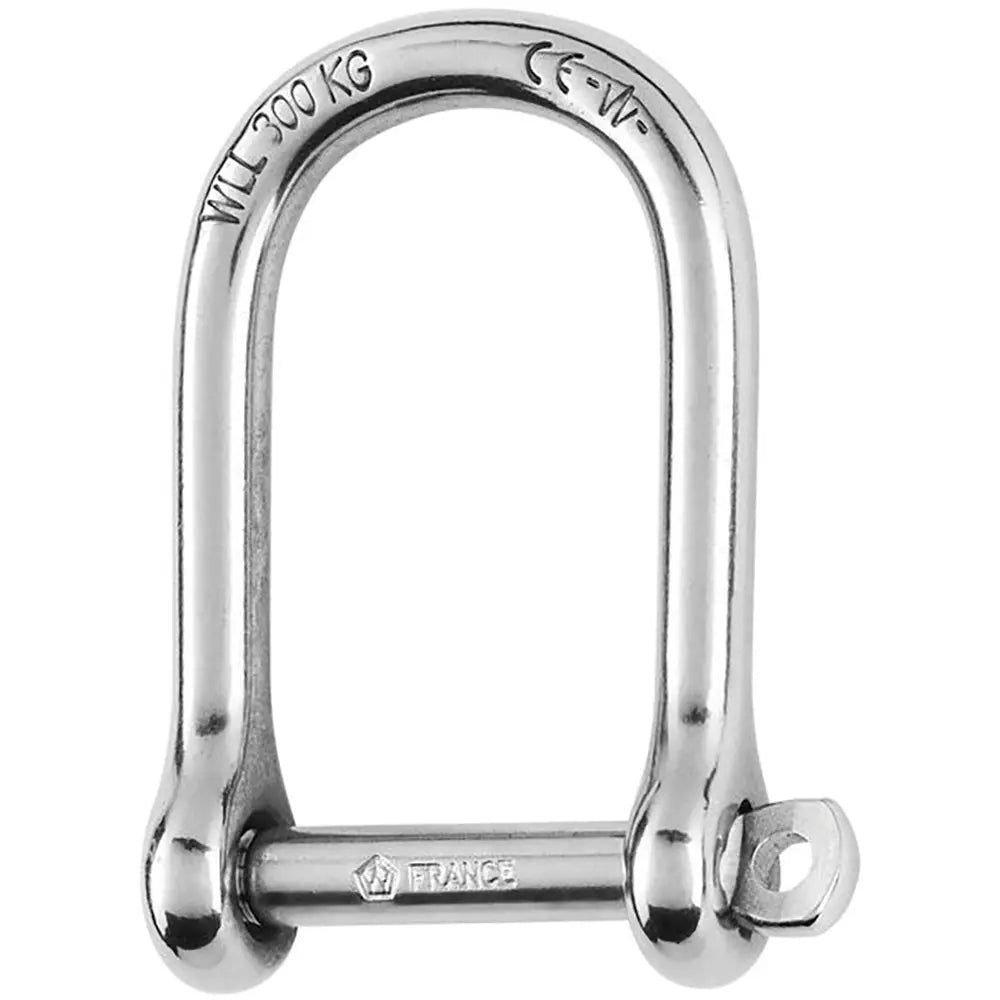

Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16" [01264]

Description

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 1780 / (kg) 810
  • WLL: (lb) 1190 / (kg) 540
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.148 / (g) 67

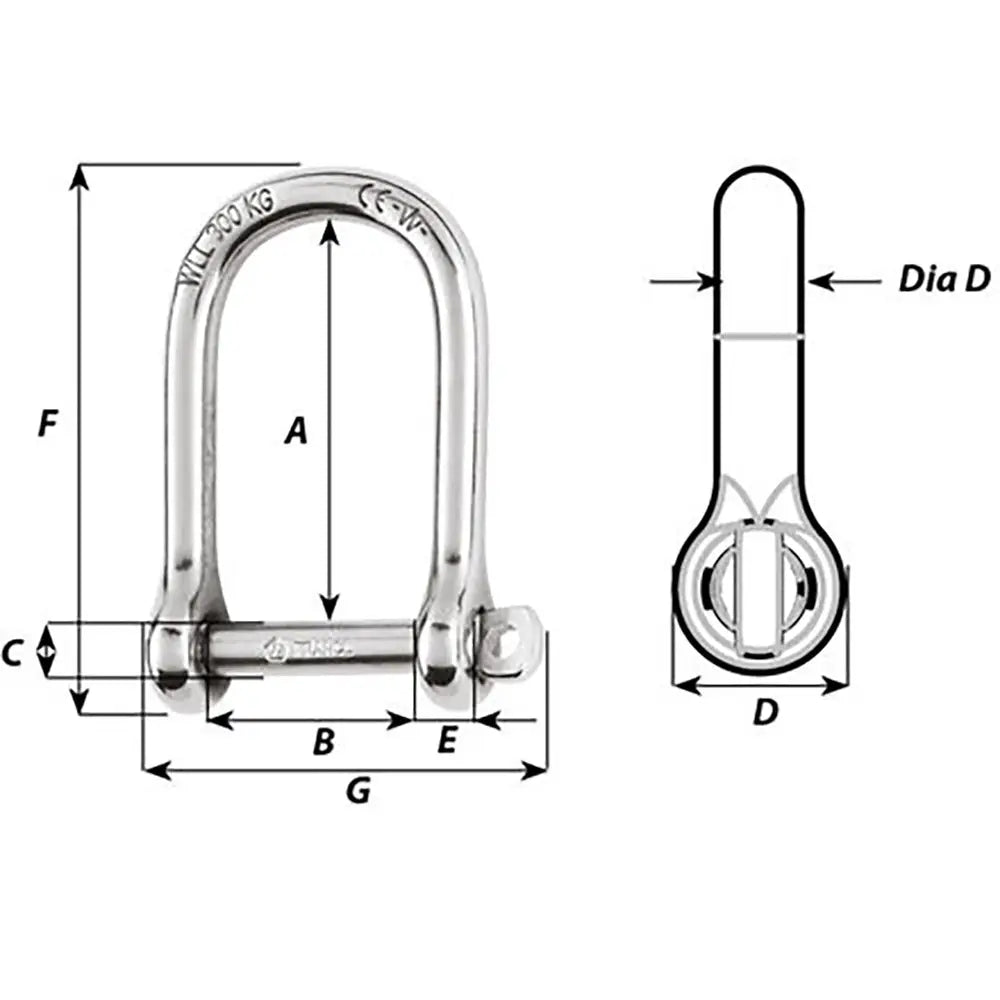

Dimensions:

  • A: (inch) 2 1/4" / (mm) 57
  • B: (inch) 1 17/64" / (mm) 32
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 43/64" / (mm) 17
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 1/32" / (mm) 77
  • G: (inch) 2 1/4" / (mm) 57

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"Features:   Self-locking large shackle forged in grade 316L stainless steel The pin... Read more

SKU: CWR-97636

$61.00$41.95 Excl. tax

  • Tell a unique detail about this product
  • Shipped today? Order within: Jan 12, 2025 16:00:00 -0500

Description

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 1780 / (kg) 810
  • WLL: (lb) 1190 / (kg) 540
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.148 / (g) 67

Dimensions:

  • A: (inch) 2 1/4" / (mm) 57
  • B: (inch) 1 17/64" / (mm) 32
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 43/64" / (mm) 17
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 1/32" / (mm) 77
  • G: (inch) 2 1/4" / (mm) 57

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
