Wichard Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16" [01394]

Regular price: $102.55
Regular price: ~~$120.65~~
Sale price: $102.55

Shipping calculated at checkout.

[COUNT] People are currently viewing this product.

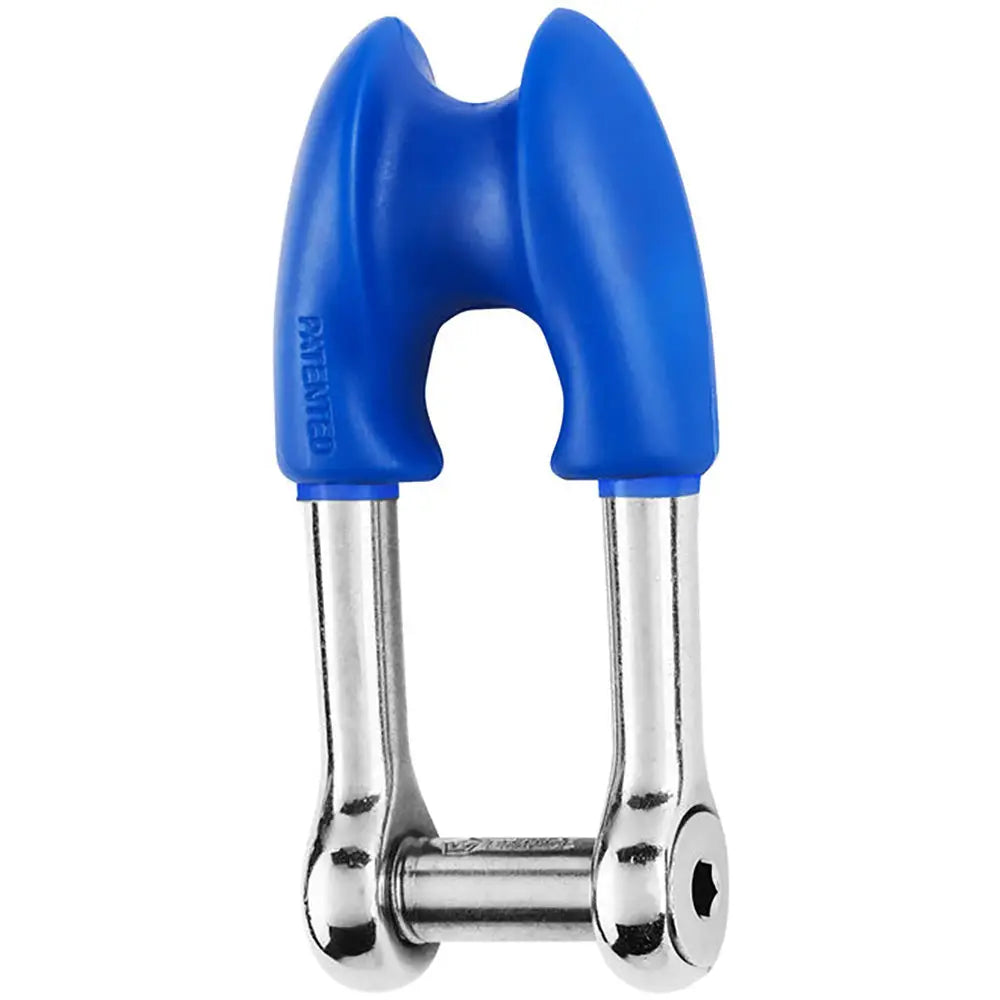

Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"

Features:

Thimble shackle with allen head pin forged in grade 316L stainless steel
Allows to spliced a rope without adding and additional thimble
With the captive pin, no risk to lose the pin
Outstanding working and breaking loads

Applications:

Mainsheet halyards
Max rope size: 12 mm

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 2200 / (kg) 1000
Breaking load: (lb) 6610 / (kg) 3000
Weight: (lb) 0.168 / (g) 76

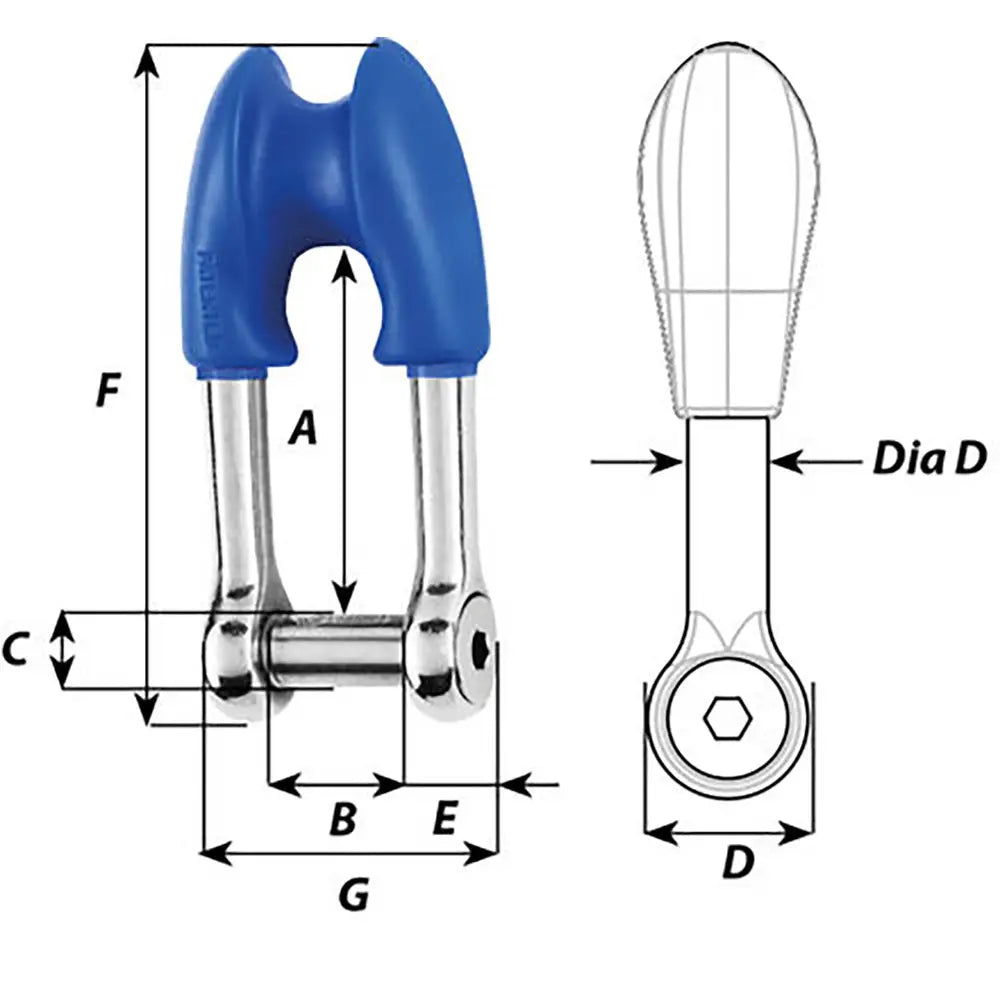

Dimensions:

A: (inch) 1 39/64" / (mm) 41
B: (inch) 5/8" / (mm) 16
C: (inch) 5/16" / (mm) 8
D: (inch) 5/8" / (mm) 16
D diameter: (inch) 5/16" / (mm) 8
E: (inch) 9/32" / (mm) 7
F: (inch) 2 63/64" / (mm) 76
G: (inch) 1 19/64" / (mm) 33

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
