Wichard U-Bolt Pad Eye - 5mm Diameter - 13/64" - 60mm Length - 2-23/64" [06512]

$19.58
$22.29
$19.58
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

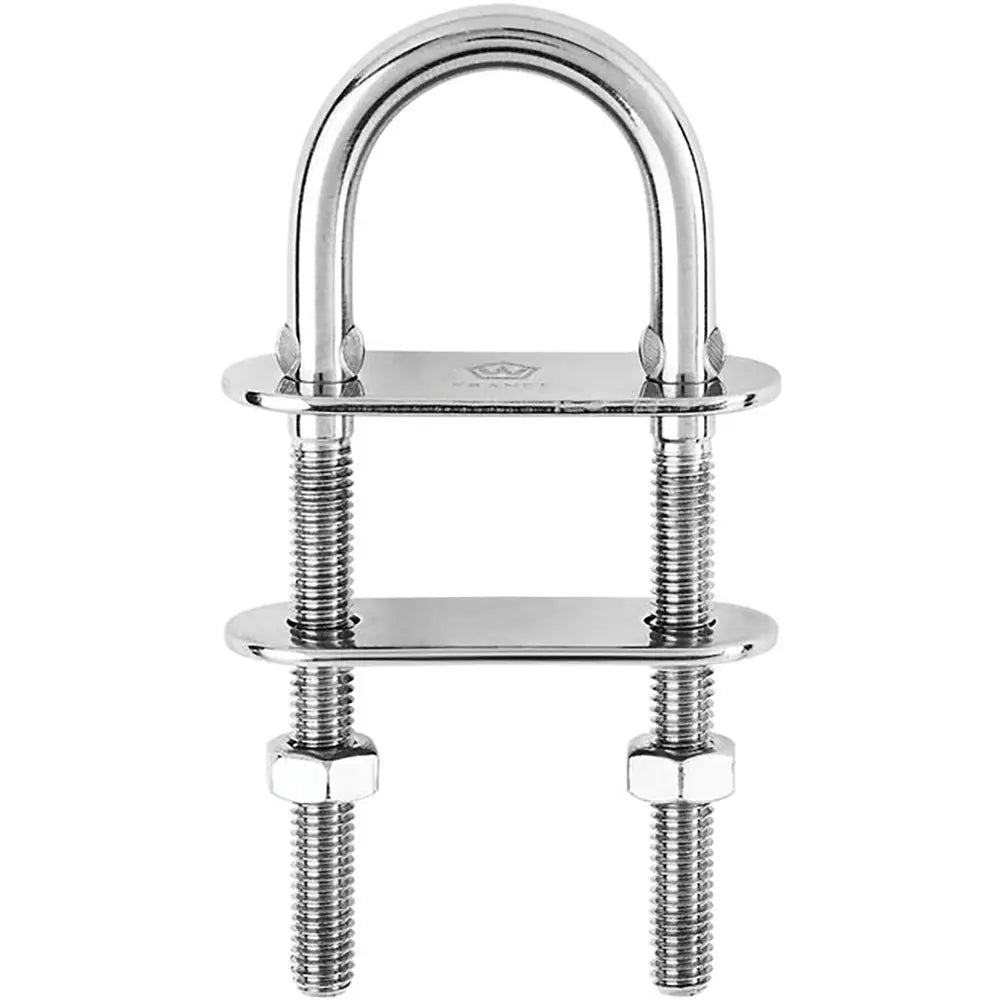

    U-Bolt Pad Eye - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"

    Features:

    • Fully drop forged product with high-quality stainless steel
    • Outstanding working and breaking loads
    • For any kind of fastening applications (shrouds, lifelines, blocks...)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 4.5 Nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 1410 / (kg) 640
    • Breaking load: (lb) 4400 / (kg) 2000
    • Weight: (lb) 0.077 / (g) 35

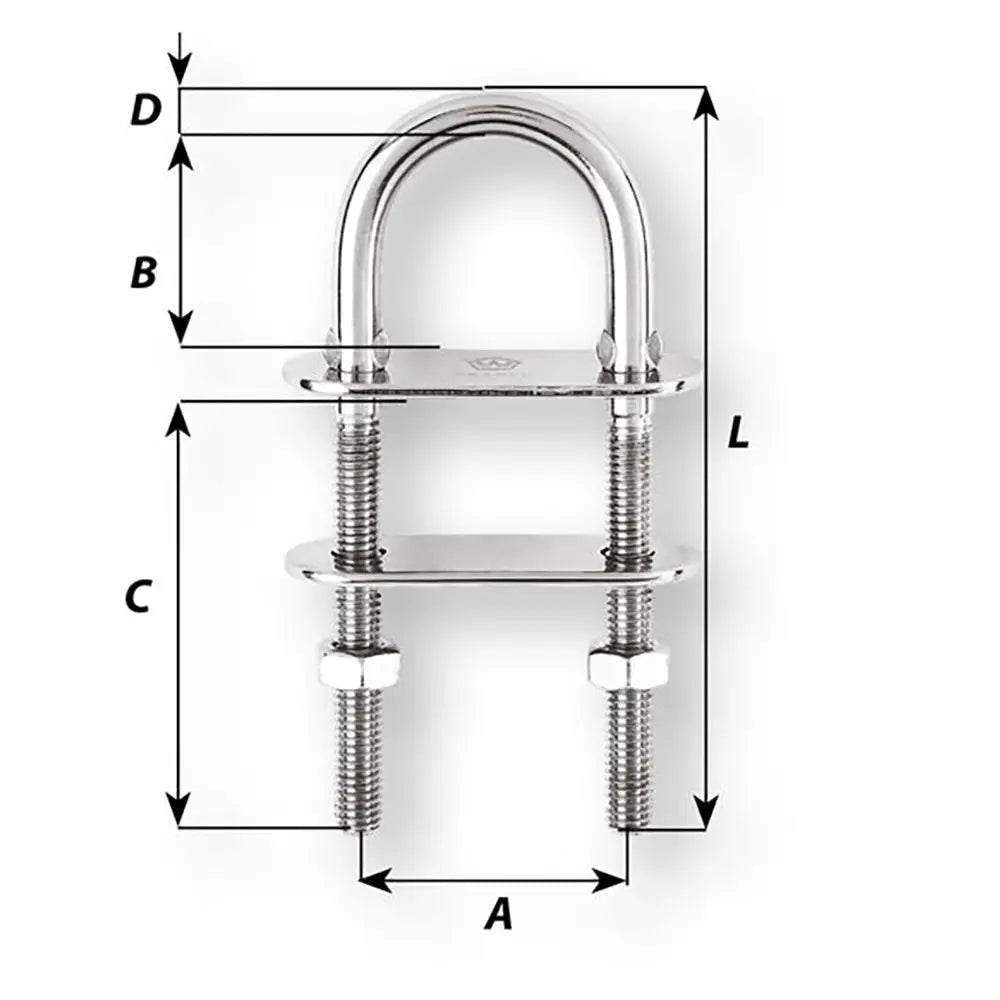

    Dimensions:

    • A: (inch) 1 7/64" / (mm) 28
    • B: (inch) 15/16" / (mm) 24
    • C: (inch) 1 3/16" / (mm) 30
    • D diameter: (inch) 13/64" / (mm) 5
    • Length: (inch) 2 23/64" / (mm) 60

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
