Wichard U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16" [06524]

$38.63
$45.45
$38.63
Shipping calculated at checkout.
[COUNT] People are currently viewing this product.

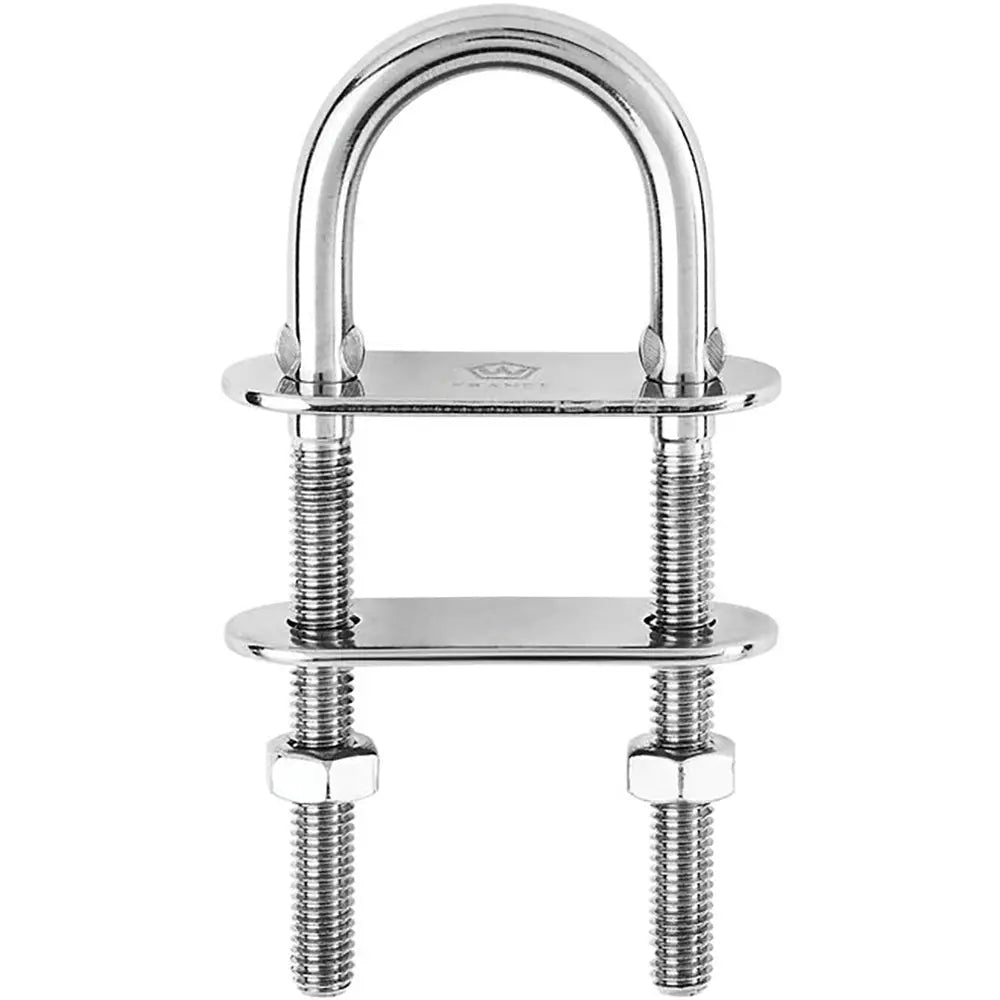

    U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

    Features:

    • Entirely drop forged product with high-quality stainless steel
    • Outstanding working and breaking loads
    • For any fastening applications (shrouds, lifelines, blocks...)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 18 Nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 5290 / (kg) 2400
    • Breaking load: (lb) 10580 / (kg) 4800
    • Weight: (lb) 0.28 / (g) 127

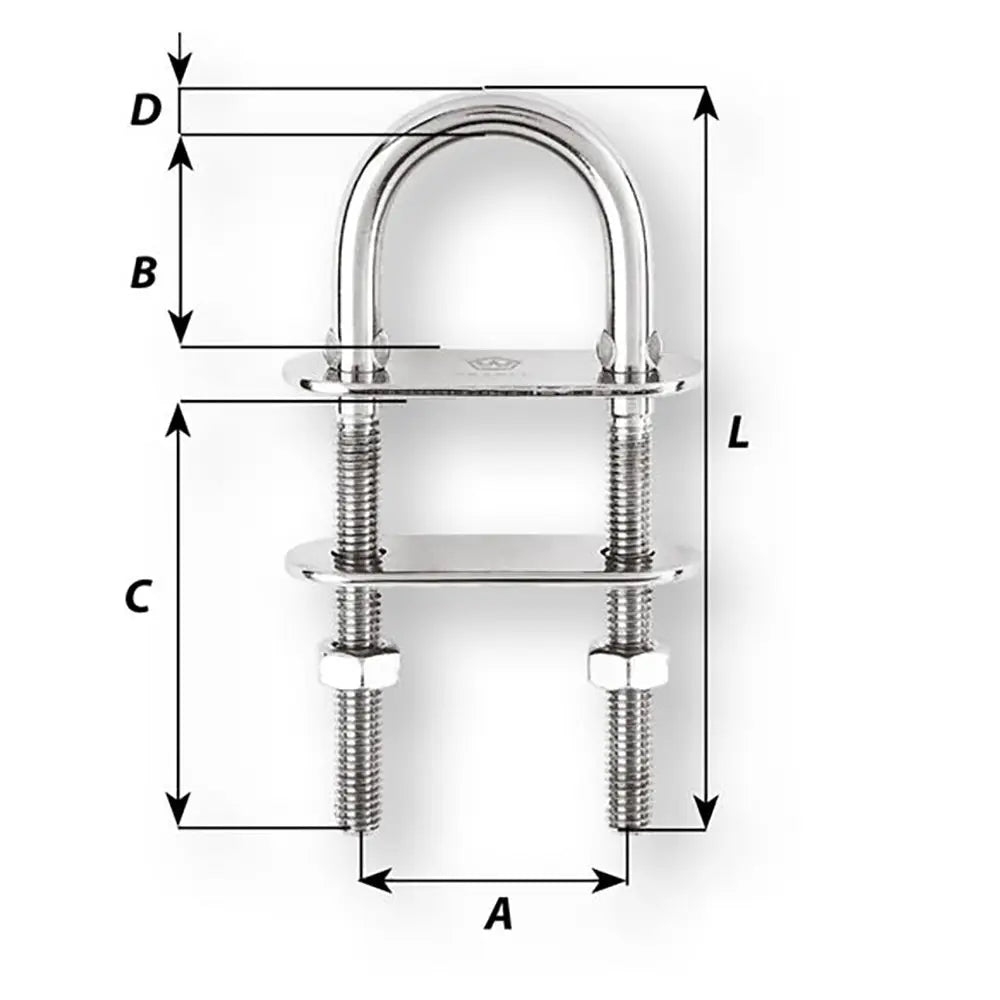

    Dimensions:

    • A: (inch) 1 27/64" / (mm) 36
    • B: (inch) 1 3/16" / (mm) 30
    • C: (inch) 2 23/64" / (mm) 60
    • D diameter: (inch) 5/16" / (mm) 8
    • Length: (inch) 3 15/16" / (mm) 100

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
