Swivel Cleat Fairlead - 2-8mm(3/32-5/16") Rope DiameterSwivel cleat bases permit easy cleating and releasing from any angle.Dead eyes contain stainless steel liners for low friction and long life. Cleating plates are heavy guage alloy for stiffness and minimum distortion under load.Features: 360° Rotation Small T-Cleat & Fairlead Applications:Sheet leads and halyards on dinghies and catamaransMaterials: Alloy cleating arms Grade 316 Stainless Steel fittings Specifications: Color: Black Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 9316800203413

Read more less

Swivel Cleat & BaseSwivel cleat bases permit easy cleating and releasing from any angle.Sheave can be relocated to allow the control line to feed from belowComes complete with a 28mm(1-1/4") ball bearing sheave, small 'T-Cleat and the 'Fast Track' fairlead.Applications:Typically fitted to dinghy and catamaran spars for halyard, cunningham or outhaul control.Material:Fiber reinforced Nylon bodySpecifications:Rope Ø: 2 - 8mm(3/32" - 5/16")M.W.L.:t150kg(330lbs)B. L.:t300kg(660lbs)Weight:t100g(3.5oz)

Read more less

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64" Features:  Fully dropforged product with high quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 60 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials; 316L stainless steel grade Color: Black Working load: (lb) 14100 / (kg) 6400  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.761 / (g) 345  Dimensions: Length: (inch) 4 21/64" / (mm) 110  A: (inch) 1 47/64" / (mm) 44  B: (inch) 1 1/16" / (mm) 27  C: (inch) 1 31/32" / (mm) 50  D diameter: (inch) 15/32" / (mm) 12  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

3/8" Eye Nut - 21/32" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 21/32" / (mm) 16.6 Thread UNC (Unified Coarse): 3/8" x 16" *Sold as an Individual

Read more less

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64" Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 36 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.483 / (g) 219  Dimensions: Length: (inch) 3 35/64" / (mm) 90  A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 1/32" / (mm) 26  C: (inch) 1 49/64" / (mm) 45  D diameter: (inch) 25/64" / (mm) 10  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Chain Grip - For 10mm Chain - 3/8" - 103mm Length - 4-1/16"Features:  For a 10mm chain Perfect for ensuring safe anchoring by easing the tension on the anchor chain Protects the boat by reducing the chafe of the chain on the rub rail and roller chock Positioned between two links of the chain (single-handed operation) Optimized design to avoid accidental release of the chain One piece with nonmoving parts Forged in Duplex stainless steel grade (increased mechanical & corrosion resistance)  Applications:MooringSpecifications: Materials: Duplex stainless steel grade Dimensions: Rope size: (mm) 22 Length: (inch) 4 1/16" / (mm) 103  Working load: (lb) 1580 / (kg) 720  Breaking load: (lb) 2820 / (kg) 1280  Weight: (lb) 0.344 / (g) 156  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

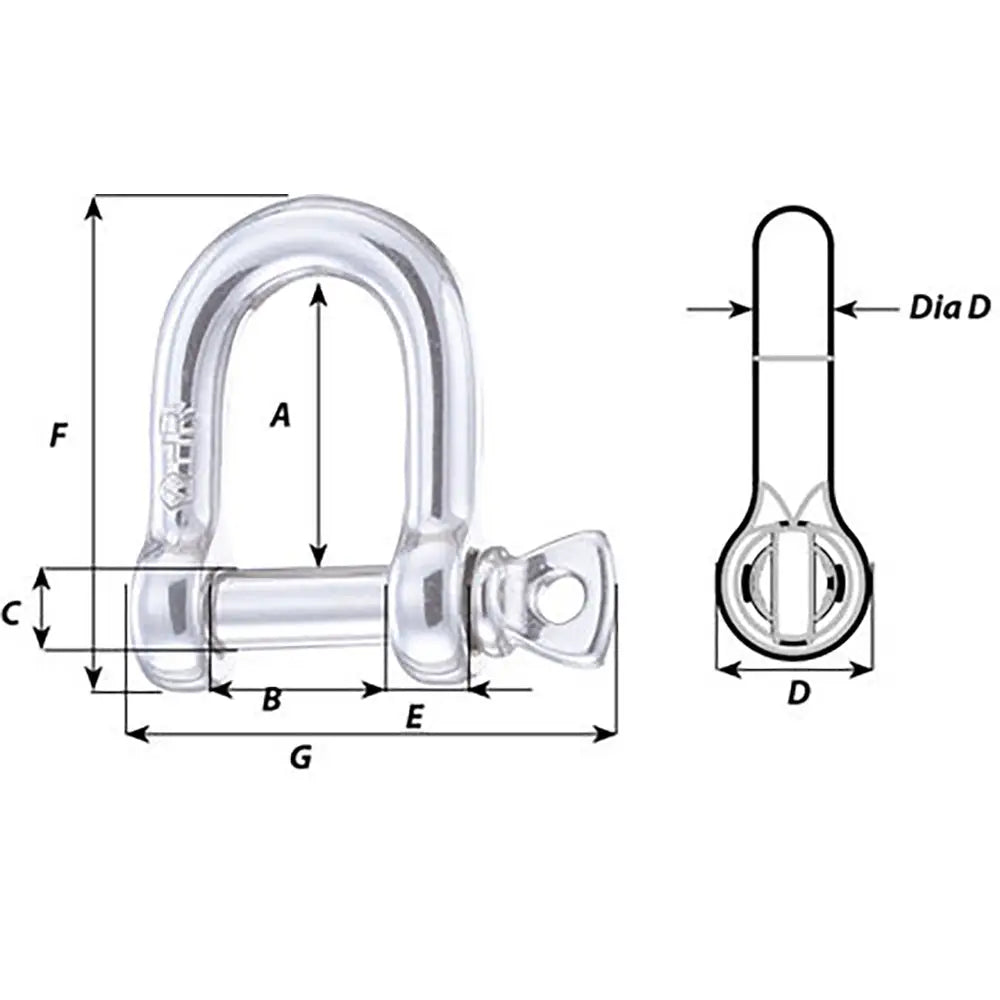

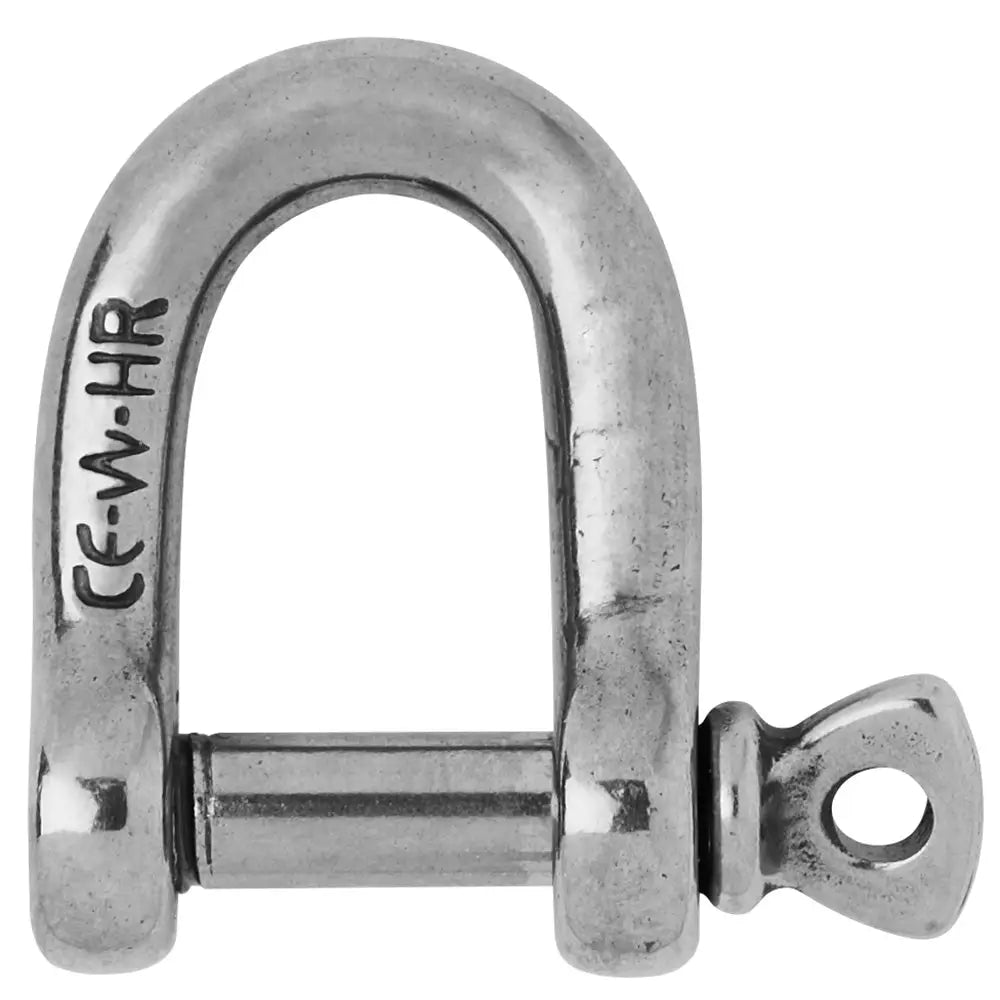

HR Key Pin Shackle With Bar - 8mm Pin DiameterFeatures:  Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Perfect product for halyards or applications requiring to opening/closing the shackle often Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2110 / (kg) 960  Breaking load: (lb) 7710 / (kg) 3500  Weight: (lb) 0.271 / (g) 123  Dimensions: A: (inch) 2 21/64" / (mm) 59  B: (inch) 53/64" / (mm) 21  C: (inch) 5/16" / (mm) 8  D: (inch) 43/64" / (mm) 17  E: (inch) 15/64" / (mm) 6  F: (inch) 3 7/64" / (mm) 79  G: (inch) 1 57/64" / (mm) 48  L: (inch) 25/32" / (mm) 20  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Chain Grip - 8mm Chain - 5/16" - 85mm Length - 3-11/32"Features:  For an 8mm chain Perfect to ensure safe anchoring by easing the tension on the anchor chain Protects the boat by reducing the chafe of the chain on the rub rail and roller chock Positioned between two links of the chain (single-handed operation) Optimized design to avoid accidental release of the chain One piece with nonmoving parts Forged in Duplex stainless steel grade (increased mechanical & corrosion resistance) Applications:MooringSpecifications: Materials: Duplex stainless steel gradeDimensions: Rope size: (mm) 17 Length: (inch) 3 11/32" / (mm) 85  Working load: (lb) 1050 / (kg) 480  Breaking load: (lb) 1960 / (kg) 890  Weight: (lb) 0.194 / (g) 88  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

5/8" Eye Nut - 1 1/16" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 1 1/16" / (mm) 27 Thread UNC (Unified Coarse): 5/8" x 11" *Sold as an Individual

Read more less

5/16" Eye Nut - 1/2" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 1/2" / (mm) 12.7 Thread UNC (Unified Coarse): 5/16" x 18" *Sold as an Individual

Read more less

12mm Eye Nut - Thread M16 x 200mmFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 22040 / (kg) 10000 Weight: (lb) 0.364 / (g) 165 Dimensions: A: (mm) M16 x 200 B: (inch) 1 1/16" / (mm) 27 C: (inch) 2 13/64" / (mm) 56  D: (inch) 15/32" / (mm) 12 E: (inch) 1 11/32" / (mm) 34 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 3960 / (kg) 1800  Weight: (lb) 0.02 / (g) 9  Dimensions: A: (inch) 25/64" / (mm) 10  B: (inch) 35/64" / (mm) 14  D diameter: (inch) 13/64" / (mm) 5  E: (inch) 1 15/32" / (mm) 37.5  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less
